Solar Energy Potential in Kut, Muhafazat Wasit, Iraq

Kut, Muhafazat Wasit, Iraq, located at latitude 32.5163° N and longitude 45.8159° E in the Northern Sub Tropics, offers promising conditions for solar PV energy generation throughout the year. The solar potential varies significantly with the seasons, with the highest electricity output occurring during the summer months. Summer in Kut brings exceptional solar energy production, with each kilowatt of installed solar capacity generating approximately 8.33 kWh per day. This makes the summer season ideal for maximizing solar energy output in this region. Spring follows as the second most productive season, with daily generation averaging 7.08 kWh per kilowatt of installed capacity. This substantial output makes spring another favorable time for solar energy harvesting in Kut. Autumn sees a moderate decline in solar production, with systems generating about 5.29 kWh per day for each kilowatt installed. While lower than summer and spring, this output still represents reasonable energy generation potential. Winter experiences the lowest solar productivity in Kut, Muhafazat Wasit, with daily generation dropping to 3.73 kWh per kilowatt of installed capacity. Despite being the least productive season, this output is still viable for solar energy production, especially when compared to many other global locations during winter months.

Optimal Panel Installation

For fixed solar panel installations in Kut, Muhafazat Wasit, the ideal tilt angle to maximize year-round energy production is 28 degrees facing South. This carefully calculated angle optimizes the capture of solar radiation throughout the changing seasons, balancing the higher summer sun position with the lower winter sun path.

Environmental Challenges and Mitigation

Several environmental factors in Kut can potentially impact solar energy production:

• Dust and sand accumulation is a significant concern in this arid region, which can reduce panel efficiency by up to 40% if left unaddressed. Installing automated cleaning systems or implementing regular maintenance schedules can help maintain optimal performance.
• High summer temperatures, which often exceed 45°C (113°F), can decrease solar panel efficiency. Selecting heat-resistant panels and ensuring adequate airflow beneath the installation can mitigate temperature-related efficiency losses.
• Occasional sandstorms may temporarily reduce solar output and potentially damage equipment. Installing protective barriers and using durable, sand-resistant panel materials can minimize these impacts.

Despite these challenges, Kut's location receives abundant sunshine throughout the year, making it generally favorable for solar energy production. With proper system design and maintenance protocols addressing the regional environmental factors, solar PV installations can operate efficiently and provide substantial renewable energy in this Iraqi city.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Iraq by location

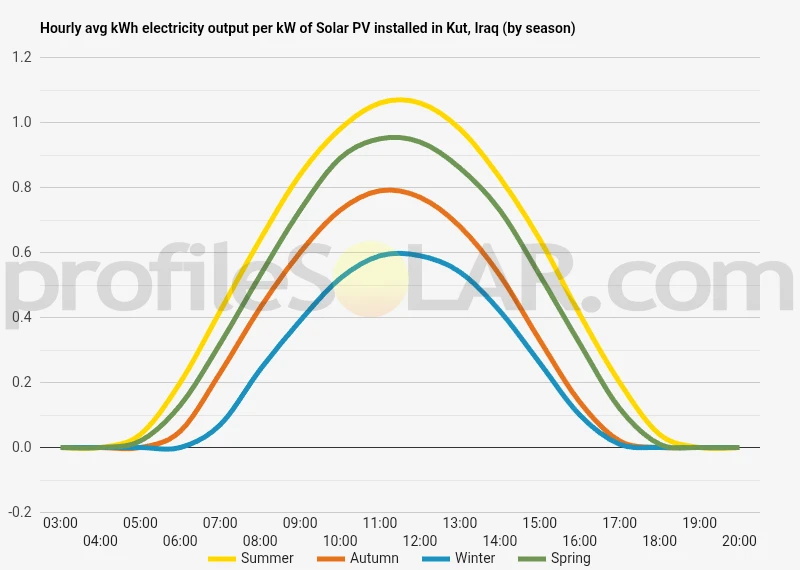

Solar output per kW of installed solar PV by season in Kut

Seasonal solar PV output for Latitude: 32.5163, Longitude: 45.8159 (Kut, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Kut, Iraq

To maximize your solar PV system's energy output in Kut, Iraq (Lat/Long 32.5163, 45.8159) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kut, Iraq

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kut, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	48° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kut, Iraq

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kut, Iraq.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kut, Iraq

The topography around Kut, Iraq is predominantly characterized by flat, alluvial plains typical of Mesopotamia. Situated on the eastern bank of the Tigris River, Kut lies in what was historically known as the Fertile Crescent. The landscape features minimal elevation changes, with the terrain being mostly level across extensive areas. This flatness is a result of thousands of years of sediment deposition from the Tigris River, which has created rich alluvial soils throughout the region. The Tigris River forms a significant geographical feature as it flows through Kut, creating a natural boundary on the western side of the city. The river's presence has historically shaped both the physical landscape and human settlement patterns in the area. To the east and south of Kut, the terrain continues as flat plains with occasional gentle undulations, extending toward the Iranian border.

Surrounding Areas

The plains surrounding Kut extend for considerable distances in all directions, particularly to the south and east. These areas experience minimal rain and have sparse vegetation, transitioning to more desert-like conditions as one moves away from the river. The lack of significant topographical barriers means the region receives abundant sunlight throughout the year, with few natural obstructions to cast shadows. Small irrigation canals crisscross parts of the landscape near the river, supporting agricultural activities in an otherwise arid environment. Further from the river, the land becomes progressively drier with fewer agricultural developments.

Optimal Areas for Solar PV Development

The expansive flat plains to the south and southeast of Kut present ideal conditions for large-scale solar photovoltaic installations. These areas combine several advantageous characteristics: they feature minimal topographical variation, limited current economic use, sparse population, and excellent solar exposure. The absence of significant hills or mountains means there are few natural shadows to reduce solar panel efficiency. Specifically, the semi-arid plains extending approximately 20-30 kilometers southeast of Kut offer particularly promising conditions. These areas have limited agricultural value due to their distance from reliable water sources, making them appropriate for alternative land uses such as energy production. The stable soil conditions of these compacted alluvial plains also provide good foundation potential for solar infrastructure with minimal preparation requirements. Areas immediately adjacent to the Tigris River, while flat, are less suitable for solar development as they represent some of the most valuable agricultural land in the region and support higher population densities. Similarly, the immediate urban surroundings of Kut city would present complications related to existing development and land ownership. The transition zones between agricultural lands and more arid regions approximately 15-25 kilometers from the city center offer a practical compromise, combining good solar exposure with reasonable proximity to existing infrastructure and transmission networks while minimizing disruption to productive agricultural activities.
