Muhafazat Babil, Iraq offers good potential for solar energy generation throughout most of the year, though with significant seasonal variation. Located in the Northern Sub Tropics at coordinates 32.5333, 44.6167, this region experiences strong solar production during warmer months but considerably reduced output during winter.

Seasonal Solar Performance

Summer provides the highest energy output at 8.32 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 7.08 kWh per day per kW, offering excellent production levels. These two seasons represent the ideal times for solar energy generation at this location. Autumn sees a notable drop to 5.27 kWh per day per kW, while winter experiences the lowest production at just 3.72 kWh per day per kW. Despite winter's reduced output, the location still maintains reasonable solar generation year-round, with summer producing more than twice the energy of winter months. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 28 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's changing position throughout the seasons.

Environmental and Weather Challenges

Several significant factors in Muhafazat Babil can impede solar panel performance and require careful consideration during installation:

• Dust and sandstorms: Iraq's arid climate generates frequent dust storms that can severely reduce solar panel efficiency by coating surfaces and blocking sunlight
• Extreme heat: Summer temperatures often exceed 45°C (113°F), which can reduce panel efficiency and accelerate equipment degradation
• Limited rainfall: The region's low precipitation means natural cleaning of panels is minimal, allowing dust accumulation to persist

Preventative Measures for Better Performance

Installing solar systems with proper protective measures can significantly improve energy production. Regular cleaning schedules are essential, ideally using automated cleaning systems or scheduling manual cleaning every 2-3 weeks during dusty periods. Anti-soiling coatings on panel surfaces can help reduce dust adhesion and make cleaning more effective. Adequate ventilation and spacing between panels helps manage extreme heat, while choosing panels with better high-temperature performance ratings ensures less efficiency loss during summer months. Installing monitoring systems allows for quick identification of performance drops due to dust accumulation or equipment issues. Robust mounting systems designed for high winds and occasional sandstorms will protect the installation's structural integrity. Consider installing panels with self-cleaning features or easy access for maintenance crews to ensure consistent performance throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Iraq by location

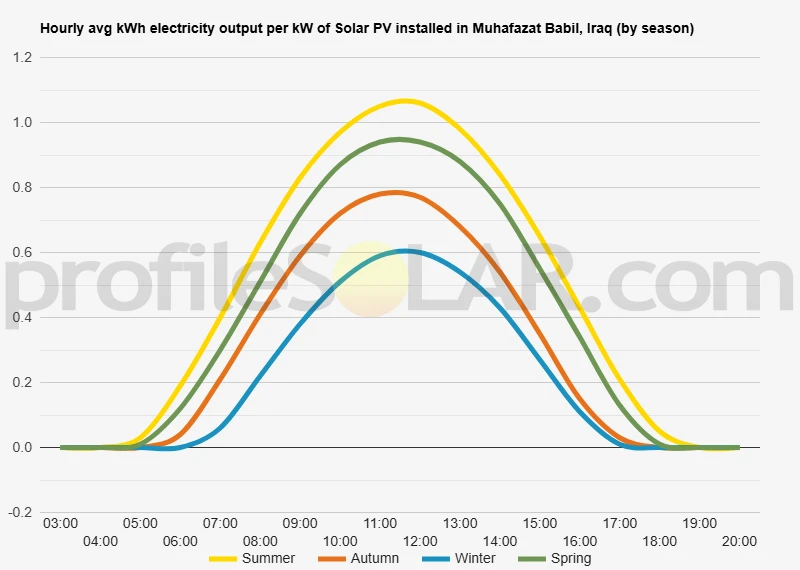

Solar output per kW of installed solar PV by season in Muhafazat Babil

Seasonal solar PV output for Latitude: 32.5333, Longitude: 44.6167 (Muhafazat Babil, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Muhafazat Babil, Iraq

To maximize your solar PV system's energy output in Muhafazat Babil, Iraq (Lat/Long 32.5333, 44.6167) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muhafazat Babil, Iraq

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muhafazat Babil, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	48° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muhafazat Babil, Iraq

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muhafazat Babil, Iraq.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muhafazat Babil, Iraq

Topographical Features of Muhafazat Babil

The topography around Muhafazat Babil in central Iraq is characterized by predominantly flat and gently undulating terrain that forms part of the expansive Mesopotamian plain. This region sits within the fertile alluvial lowlands created by the Euphrates and Tigris river systems over thousands of years. The landscape consists mainly of sedimentary deposits that have been laid down by these ancient waterways, creating a relatively uniform elevation profile across much of the province. The terrain gradually slopes from northwest to southeast, following the natural drainage patterns toward the Persian Gulf. Elevation changes are typically subtle, with most areas lying between 20 and 50 meters above sea level. The flatness of the landscape is occasionally broken by low ridges, ancient river channels, and archaeological mounds known as tells, which represent the accumulated remains of historical settlements. Agricultural fields dominate much of the visible landscape, interspersed with irrigation canals, drainage ditches, and scattered palm groves. The soil composition varies from sandy loams to clay-rich deposits, depending on proximity to active and former river channels. During certain seasons, some lower-lying areas may experience temporary flooding or become marshy, particularly in regions closer to the major waterways.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in and around Muhafazat Babil would be the elevated, well-drained areas that lie away from active agricultural zones and flood-prone regions. The slightly higher ground to the west and northwest of the province offers excellent potential, as these areas combine relatively flat terrain with good drainage characteristics and minimal risk of seasonal inundation. Desert and semi-arid zones on the western periphery of the province present particularly attractive opportunities for solar development. These areas typically feature firm, stable ground conditions with minimal vegetation cover and low agricultural value. The terrain in these locations tends to be more consolidated and less subject to the seasonal moisture variations that affect areas closer to irrigation systems. Areas with good road access and proximity to existing electrical infrastructure would be especially advantageous for large installations. The regions along major transportation corridors, particularly those connecting to Baghdad and other urban centers, offer logistical advantages for construction and maintenance activities while maintaining the flat topography essential for efficient solar array deployment. Locations that avoid the immediate vicinity of archaeological sites and cultural heritage areas would also be preferable, as these restrictions are common throughout this historically significant region. The relatively uniform topography across much of the province means that developers have considerable flexibility in site selection while still maintaining optimal conditions for solar energy generation.
