Nineveh, Iraq, located at coordinates 36.0833° North and 42.5° East in the Northern Temperate Zone, presents a mixed picture for year-round solar energy generation. The location experiences significant seasonal variation in solar output, which affects its overall suitability for solar photovoltaic installations.

Seasonal Solar Performance

The solar energy production at Nineveh varies dramatically throughout the year. Summer delivers the highest output at 8.57 kWh per day per kW of installed solar capacity, making it an excellent season for solar generation. Spring also performs well with 6.71 kWh per day per kW, providing strong secondary production periods. However, the location faces challenges during cooler months. Autumn drops to 4.95 kWh per day per kW, while winter produces only 3.21 kWh per day per kW - less than half of the summer output. This seasonal variation means that solar installations will generate most of their annual energy during the warmer six months of the year. For optimal year-round energy capture, solar panels at this location should be installed at a fixed tilt angle of 31 degrees facing south. This angle maximizes total annual production by balancing the sun's varying position throughout the seasons.

Environmental and Weather Challenges

Several local factors in the Nineveh region can significantly impact solar energy production:

• Dust storms and sandstorms - Common in Iraq, these can coat solar panels and dramatically reduce efficiency
• High summer temperatures - Extreme heat can reduce panel efficiency despite abundant sunlight
• Dust accumulation - The arid climate leads to constant dust settling on panels
• Occasional rainfall patterns - While limited, irregular rain can affect production during certain periods

Preventative Measures for Better Performance

To maximize solar energy production at Nineveh, several installation strategies should be implemented:

• Regular cleaning systems - Install automated cleaning mechanisms or schedule frequent manual cleaning to remove dust and sand
• Improved ventilation - Design panel mounting systems with adequate airflow underneath to reduce heat buildup
• Protective coatings - Use anti-soiling coatings on panel surfaces to minimize dust adhesion
• Robust mounting systems - Install sturdy frameworks that can withstand strong winds during dust storms
• Monitoring systems - Implement real-time monitoring to quickly identify and address performance issues

Despite these challenges, Nineveh's strong summer and spring solar production potential makes it a viable location for solar energy, provided proper maintenance and protective measures are implemented to address the harsh desert environment conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 36 locations across Iraq. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Iraq by location

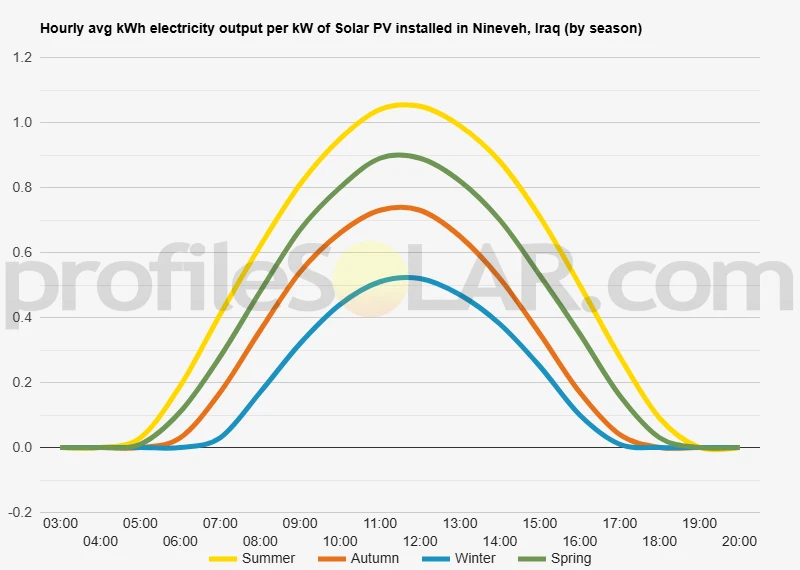

Solar output per kW of installed solar PV by season in Nineveh

Seasonal solar PV output for Latitude: 36.0833, Longitude: 42.5 (Nineveh, Iraq), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Nineveh, Iraq

To maximize your solar PV system's energy output in Nineveh, Iraq (Lat/Long 36.0833, 42.5) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nineveh, Iraq

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nineveh, Iraq. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	40° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nineveh, Iraq

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nineveh, Iraq.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nineveh, Iraq

Topographical Features of the Nineveh Region

The ancient city of Nineveh sits on the eastern bank of the Tigris River in northern Iraq, positioned within a landscape that transitions between the Mesopotamian plains and the foothills of the Zagros Mountains. The immediate area around Nineveh features relatively flat to gently undulating terrain, with elevations ranging from approximately 200 to 400 meters above sea level. This positioning places the region in what geographers call the Upper Mesopotamian steppe, where the broad river valley begins to give way to higher ground as one moves eastward toward the Iranian border. The Tigris River forms the dominant geographical feature of the area, flowing northwestward past the ruins of Nineveh before continuing its journey toward the Persian Gulf. The river has carved a distinct valley through the landscape over millennia, creating fertile alluvial deposits along its banks while leaving slightly elevated terraces on either side. These terraces, particularly on the eastern side where Nineveh was built, provide stable ground that rises gradually away from the river. Moving eastward from the Tigris valley, the terrain becomes increasingly hilly as it approaches the Zagros mountain range. This transitional zone features rolling hills interspersed with broader valleys, creating a varied topographical pattern that extends toward the Kurdish regions of Iraq. The western side of the river, in contrast, maintains the flatter characteristics typical of the broader Mesopotamian plain, with gentle slopes and wider expanses of relatively level ground.

Climate and Environmental Conditions

The Nineveh region experiences a semi-arid continental climate characterized by hot, dry summers and mild winters with occasional rainfall. The area receives most of its precipitation during the winter months, while summers remain largely rainless with clear skies predominating. This climate pattern, combined with the region's latitude and elevation, creates favorable conditions for solar energy generation throughout much of the year. Dust storms can occur during certain seasons, particularly in spring and early summer, when strong winds pick up fine particles from the surrounding arid landscape. These weather events can temporarily reduce solar irradiance, though they typically pass within a few days. The generally low humidity and minimal cloud cover during summer months contribute to excellent atmospheric transparency for solar radiation.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie to the west and southwest of Nineveh, where the landscape opens into the broader Mesopotamian plain. These areas offer several key advantages for solar development, including vast expanses of relatively flat terrain that would minimize grading and construction costs while maximizing the efficiency of solar panel arrays. The elevated terraces on both sides of the Tigris River present excellent opportunities for solar development, particularly those areas that maintain gentle slopes of less than five degrees. These locations benefit from good drainage, stable soil conditions, and sufficient elevation to avoid potential flooding from the river system. The western terraces, in particular, extend for considerable distances away from the river, providing ample space for utility-scale solar installations. Areas located 10 to 30 kilometers west of Nineveh appear especially well-suited for large solar projects. This zone combines the advantages of flat topography with proximity to existing infrastructure, including roads and transmission lines that connect the region to Iraq's national power grid. The terrain in this area consists primarily of hardpan desert and semi-desert conditions, making it less valuable for agricultural purposes while being ideal for solar development. The rolling hills to the east and northeast of Nineveh, while receiving similar solar radiation, present more challenging terrain for large-scale installations due to their varied elevations and slopes. However, some of the broader valleys within this hilly region could accommodate smaller solar facilities, particularly those designed to serve local communities in the Kurdish areas. South of Nineveh, the landscape gradually transitions into the classic Mesopotamian plain, offering another zone of excellent potential for solar development. This area features minimal topographical variation and extends for hundreds of kilometers, providing virtually unlimited space for massive solar installations that could serve not only local needs but potentially contribute to regional energy exports.
