Acala, Chiapas, Mexico represents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year and seasonal variations are primarily characterized by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output data for Acala demonstrates remarkably consistent performance across all seasons. Spring emerges as the peak production period, generating 6.47 kWh per day per kW of installed solar capacity. Summer follows closely with 6.29 kWh per day per kW, while autumn and winter maintain strong output levels at 5.48 and 5.50 kWh per day per kW respectively. This seasonal pattern indicates that Acala experiences optimal solar conditions during spring and summer months, with only modest reductions during autumn and winter. The relatively small variation between seasons - less than 1 kWh difference between the highest and lowest performing periods - makes this location highly suitable for consistent solar energy production throughout the year.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 15 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles at the specific latitude, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors in Acala could potentially impact solar energy production and require careful consideration during installation:

• Tropical storms and hurricanes: The region's proximity to both the Pacific Ocean and Gulf of Mexico makes it susceptible to severe weather events during hurricane season
• High humidity and moisture: Tropical climate conditions can lead to increased corrosion of metal components and electrical connections
• Heavy rainfall during wet season: Intense precipitation can temporarily reduce solar output and create drainage challenges
• Dust and debris accumulation: Dry season conditions may lead to dust buildup on panel surfaces, reducing efficiency

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be implemented: Structural reinforcement is essential, requiring robust mounting systems designed to withstand high winds and storm conditions. Panels should be securely anchored with hurricane-rated hardware and mounting structures engineered for the local wind load requirements. Corrosion protection becomes critical in the humid tropical environment. All metal components should feature marine-grade coatings or stainless steel construction. Regular inspection and maintenance of electrical connections will prevent moisture-related failures. Drainage design must accommodate heavy rainfall typical of tropical wet seasons. Proper site grading and drainage systems will prevent water accumulation around ground-mounted installations, while roof-mounted systems require adequate water management to prevent structural damage. Maintenance accessibility should be built into the installation design, allowing for regular cleaning to remove dust, pollen, and debris that accumulate on panel surfaces. Automated cleaning systems or easily accessible manual cleaning options will help maintain optimal energy output throughout the year. Despite these environmental considerations, Acala's consistent solar resource and minimal seasonal variation make it an highly favorable location for solar energy generation, provided that installations are properly designed and maintained to address the tropical climate challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

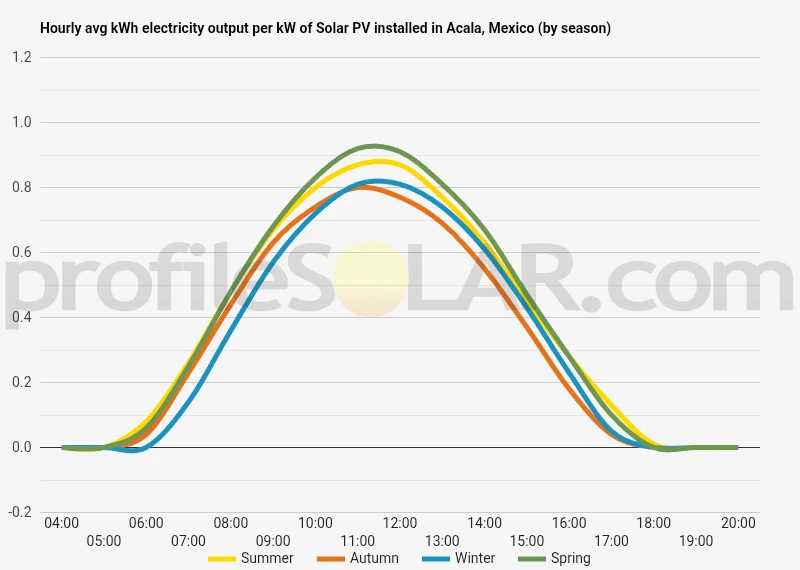

Solar output per kW of installed solar PV by season in Acala

Seasonal solar PV output for Latitude: 16.5613, Longitude: -92.8589 (Acala, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° South in Acala, Mexico

To maximize your solar PV system's energy output in Acala, Mexico (Lat/Long 16.5613, -92.8589) throughout the year, you should tilt your panels at an angle of 15° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Acala, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Acala, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	22° South in Autumn	32° South in Winter	10° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Acala, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Acala, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Acala, Mexico

Topographical Features Around Acala

Acala is situated in the central highlands of Chiapas, Mexico, positioned within a transitional zone between the mountainous terrain of the Sierra Madre de Chiapas and the coastal plains that extend toward the Pacific Ocean. The town sits at an elevation of approximately 550 meters above sea level, nestled within a landscape characterized by rolling hills and gentle slopes that gradually descend from the higher elevations to the east. The surrounding topography features a series of undulating hills and broad valleys that create a moderately varied terrain. To the east and northeast, the land rises toward the more pronounced peaks of the Sierra Madre mountain range, while to the west and southwest, the elevation gradually decreases as the landscape transitions toward the Grijalva River valley system. This positioning creates a natural amphitheater effect, with Acala located in a relatively sheltered basin surrounded by higher ground on multiple sides. The region's geological foundation consists primarily of sedimentary rocks and volcanic deposits, which have been shaped over millennia by erosional processes. This has resulted in a landscape of moderate relief, with hillsides that typically maintain gradual to moderate slopes rather than steep inclines. The area is drained by several small tributaries that eventually flow into the larger Grijalva River system, creating small valleys and drainage channels throughout the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the vicinity of Acala would be found on the broad, gently sloping plateaus and mesa-like formations that occur throughout the region. These elevated flat areas provide excellent exposure to solar radiation while offering sufficient space for extensive solar arrays. The rolling hills to the south and southwest of Acala present particularly favorable conditions, as they feature expansive areas of relatively level terrain with southern-facing slopes that maximize solar exposure throughout the day. The valley floors and broader basin areas also present excellent opportunities for solar development, particularly where agricultural land use is less intensive or where marginal farmland could be repurposed. These areas typically offer the advantage of easier access for construction and maintenance vehicles, as well as proximity to existing electrical infrastructure and transportation networks. Areas with gentle south-facing slopes would be particularly advantageous for solar installations, as they naturally optimize the angle of solar panel placement while providing good drainage during the rainy season. The moderate elevation of the region helps ensure good air circulation around solar installations, which can improve panel efficiency by reducing operating temperatures. The transitional zone between the highland areas and the lower river valleys offers some of the most promising locations, combining the benefits of elevation with the accessibility of flatter terrain. These areas typically feature good soil stability for foundation work while avoiding the potential complications of steeper mountain slopes or flood-prone valley bottoms.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
