Cabo San Lucas, Baja California Sur, Mexico, situated at the southern tip of the Baja California Peninsula, offers a promising location for solar energy generation. This tropical destination experiences consistent sunlight throughout the year, making it an attractive spot for solar photovoltaic (PV) installations.

Seasonal Solar Performance

The solar energy output in Cabo San Lucas varies across seasons, with spring and summer being the most productive periods. In spring, solar panels can generate an impressive 7.97 kWh per day for each kilowatt of installed capacity. Summer follows closely with 7.47 kWh/day. Autumn sees a slight decrease to 6.00 kWh/day, while winter produces the least at 5.36 kWh/day per kilowatt installed. These figures indicate that Cabo San Lucas maintains relatively high solar production year-round, with only a moderate dip during the winter months. This consistency is a significant advantage for solar energy investments in the area.

Optimal Panel Tilt

For fixed solar panel installations in Cabo San Lucas, Baja California Sur, the ideal tilt angle to maximize year-round energy production is 20 degrees facing south. This angle has been calculated considering the location's latitude, the Earth's elliptical orbit, and daily solar elevation angles, weighted by NASA's solar irradiance data.

Environmental Considerations

While Cabo San Lucas is generally ideal for solar energy production, there are a few environmental factors to consider: 1. Dust and sand: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing efficiency. 2. Hurricanes: The area is susceptible to tropical storms and hurricanes, particularly during the late summer and early fall. To mitigate these issues, solar installations should incorporate regular cleaning schedules to remove dust and debris. Additionally, using sturdy mounting systems and high-quality, weather-resistant panels can help withstand potential hurricane impacts. In conclusion, Cabo San Lucas presents an excellent opportunity for solar energy production, with high year-round output and only minor environmental challenges that can be effectively managed with proper planning and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

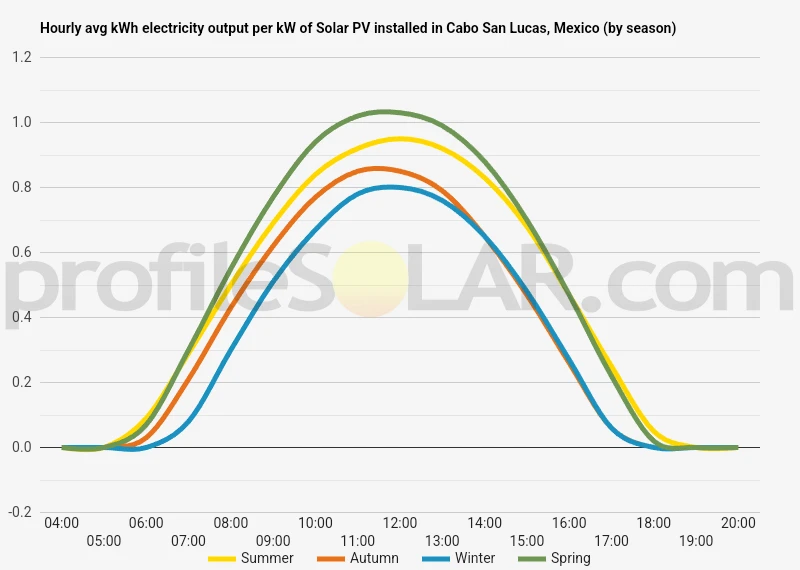

Solar output per kW of installed solar PV by season in Cabo San Lucas

Seasonal solar PV output for Latitude: 22.9356, Longitude: -109.943 (Cabo San Lucas, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Cabo San Lucas, Mexico

To maximize your solar PV system's energy output in Cabo San Lucas, Mexico (Lat/Long 22.9356, -109.943) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cabo San Lucas, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cabo San Lucas, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	28° South in Autumn	38° South in Winter	16° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cabo San Lucas, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cabo San Lucas, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cabo San Lucas, Mexico

The topography around Cabo San Lucas, Mexico, is a striking blend of desert landscapes and coastal features. Situated at the southern tip of the Baja California Peninsula, this region is characterized by rugged terrain that transitions from arid mountains to pristine beaches. Inland from the coast, the landscape is dominated by the Sierra de la Laguna mountain range. These mountains, composed of granite and other igneous rocks, rise steeply from the surrounding desert plains. The terrain is marked by deep canyons, rocky outcrops, and sparse vegetation adapted to the arid climate. As you move closer to the coast, the elevation gradually decreases, giving way to gentler slopes and alluvial plains. The coastline itself is a dramatic meeting of land and sea. Towering cliffs and rocky promontories punctuate stretches of golden sand beaches. The iconic El Arco, a natural rock formation, stands as a testament to the region's volcanic past and the erosive power of the ocean. The confluence of the Pacific Ocean and the Sea of Cortez creates a dynamic coastal environment with a mix of calm bays and turbulent waters.

Areas Suitable for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Cabo San Lucas, several factors come into play. The ideal areas would combine ample sunlight exposure, relatively flat terrain, and minimal environmental impact. The desert plains to the north and northeast of Cabo San Lucas present promising opportunities for solar PV development. These areas receive abundant sunshine throughout the year and offer expansive, level surfaces that are well-suited for solar panel arrays. The sparse vegetation and limited agricultural use of these lands make them attractive candidates for solar energy projects. Another potential location for solar PV installations is the gently sloping terrain found in the transition zone between the mountains and the coast. While care must be taken to avoid areas of ecological importance or scenic beauty, there are pockets of land in this region that could accommodate large-scale solar farms without significantly disrupting the natural landscape. It's important to note that any solar PV development in the area would need to carefully consider environmental impacts, water scarcity issues, and the region's importance for tourism. Proper planning and environmental assessments would be crucial to ensure that solar energy projects harmonize with the unique ecosystem and cultural significance of the Cabo San Lucas area.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
