Camargo Municipality, Chihuahua, Mexico presents a very good location for year-round solar photovoltaic energy generation. Located in the Northern Sub Tropics at coordinates 28.0337, -104.4237, this area benefits from abundant sunshine throughout most of the year.

Seasonal Solar Performance

The solar energy output varies significantly across the seasons, with spring being the most productive period at 7.77 kWh per day per kW of installed solar capacity. Summer follows closely with 7.36 kWh per day, making these the ideal times for maximum solar generation. Autumn production drops to 5.75 kWh per day, while winter shows the lowest output at 4.82 kWh per day per kW installed. Even during the least productive winter months, the location still generates nearly 5 kWh per day per kW, which represents decent solar performance compared to many other regions globally. The spring and summer months more than compensate for the winter reduction, creating a favorable annual average.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 25 degrees facing south. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy output.

Environmental and Weather Challenges

Several local factors in Camargo Municipality could potentially impact solar energy production:

• Desert dust and sand storms: The semi-arid climate can generate significant dust accumulation on solar panels, reducing their efficiency by blocking sunlight
• Extreme heat: High summer temperatures can reduce solar panel efficiency, as photovoltaic cells perform less effectively when overheated
• Hail storms: The region occasionally experiences severe weather including hail, which can physically damage solar panels
• UV degradation: Intense solar radiation can accelerate the aging of panel materials over time

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies are recommended: Regular cleaning schedules should be implemented to remove dust and debris from panel surfaces. Installing panels with adequate spacing allows for better air circulation, helping to keep them cooler during extreme heat. Using high-quality panels rated for harsh desert conditions will provide better resistance to UV degradation and temperature extremes. Mounting systems should be engineered to withstand high winds and potential hail damage. Consider installing panels with tempered glass and robust frames designed for extreme weather conditions. Automated cleaning systems or easy-access mounting can make maintenance more practical in dusty conditions. Despite these environmental challenges, Camargo Municipality remains an excellent location for solar energy generation, with the preventative measures helping ensure optimal long-term performance and energy output.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

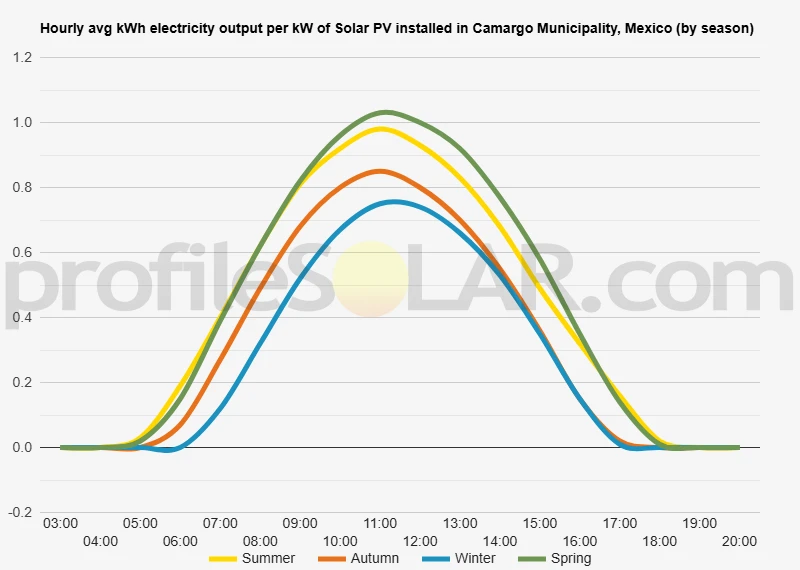

Solar output per kW of installed solar PV by season in Camargo Municipality

Seasonal solar PV output for Latitude: 28.0337, Longitude: -104.4237 (Camargo Municipality, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Camargo Municipality, Mexico

To maximize your solar PV system's energy output in Camargo Municipality, Mexico (Lat/Long 28.0337, -104.4237) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Camargo Municipality, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Camargo Municipality, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Camargo Municipality, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Camargo Municipality, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Camargo Municipality, Mexico

Topographical Features of Camargo Municipality

The landscape around Camargo Municipality in Chihuahua state presents a diverse mix of desert plains, rolling hills, and mountainous terrain characteristic of northern Mexico's high desert region. The municipality sits at an elevation of approximately 1,200 meters above sea level, positioned within the broader Chihuahuan Desert ecosystem. This elevated desert plateau extends across much of the area, creating relatively flat to gently undulating terrain that stretches for considerable distances. To the west of Camargo, the Sierra Madre Occidental mountain range creates a dramatic backdrop with peaks rising significantly above the surrounding desert floor. These mountains form steep-sided valleys and canyons that cut through the landscape, creating areas of rugged terrain unsuitable for large-scale development. The eastern portions of the municipality transition into more level desert plains that extend toward the Rio Grande valley system. The immediate vicinity around Camargo features a combination of desert scrubland and agricultural areas, with irrigation from the Rio Conchos supporting farming activities in the river valley. The terrain here consists of alluvial deposits that have created relatively flat agricultural lands, though these productive farming areas would likely be prioritized for continued agricultural use rather than solar development.

Optimal Locations for Large-Scale Solar Development

The most promising areas for extensive solar photovoltaic installations lie in the elevated desert plains extending northeast and southeast of Camargo Municipality. These regions offer several key advantages including relatively flat topography that minimizes grading and construction costs, minimal vegetation that would require clearing, and distance from prime agricultural lands. The desert plateau areas to the northeast present particularly favorable conditions, with gentle slopes that provide natural drainage while maintaining accessibility for construction equipment and maintenance vehicles. The terrain in these locations consists primarily of hard-packed desert soils with scattered desert shrubs, making site preparation relatively straightforward compared to more vegetated or rocky terrain. Areas southeast of the municipality toward the broader Chihuahuan Desert plains also show strong potential for solar development. These locations benefit from expansive flat terrain with minimal topographical obstacles, reducing the need for extensive earthwork or specialized mounting systems. The sparse vegetation and low population density in these desert areas would minimize environmental and social conflicts associated with large-scale solar installations. The elevated nature of the entire region provides advantages for solar installations, as the higher altitude typically results in clearer atmospheric conditions and reduced atmospheric interference with solar radiation. The dry desert climate also means minimal issues with fog, humidity, or extended cloudy periods that could impact solar generation efficiency. Infrastructure considerations favor locations closer to existing transmission lines and road networks, which generally follow the flatter terrain and connect the municipality to larger regional centers. Areas within reasonable distance of Highway 16 and other major transportation corridors would provide better access for construction and ongoing maintenance operations.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
