Celaya, Guanajuato, Mexico, located at latitude 20.4306 and longitude -100.7872, offers a promising environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight and experiences seasons characterized more by wet and dry periods rather than traditional temperature-based seasons.

Seasonal Solar Performance

Solar panel performance in Celaya varies across the meteorological seasons: Spring stands out as the most productive season, with an impressive 7.97 kWh per day for each kilowatt of installed solar capacity. Summer follows with 6.32 kWh/day, while winter yields 6.04 kWh/day. Autumn shows the lowest output at 5.81 kWh/day, but still maintains a respectable level of production.

Optimal Panel Positioning

For fixed solar panel installations in Celaya, Guanajuato, the ideal tilt angle to maximize year-round energy production is 19 degrees facing south. This angle has been carefully calculated to account for the Earth's elliptical orbit and the location's specific solar elevation angles throughout the year.

Environmental Considerations

While Celaya's climate is generally favorable for solar energy production, there are a few factors to consider: The region experiences a rainy season, typically from June to September. During this period, cloud cover may temporarily reduce solar output. However, modern solar panels can still generate electricity on cloudy days, albeit at a lower efficiency. Dust accumulation can be a concern in this semi-arid climate. Regular cleaning of solar panels is recommended to maintain optimal performance. Installing panels at the calculated 19-degree tilt can help with natural cleaning during rainfall.

Preventative Measures

To maximize solar energy production in Celaya: 1. Implement a regular cleaning schedule for the panels, especially during the dry season. 2. Consider using anti-reflective coatings on panels to reduce dust adhesion and improve light absorption. 3. Install a monitoring system to track performance and quickly identify any issues affecting output. Overall, Celaya's location provides excellent conditions for solar energy generation, with consistently high output throughout the year and only minor environmental challenges that can be easily mitigated with proper planning and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

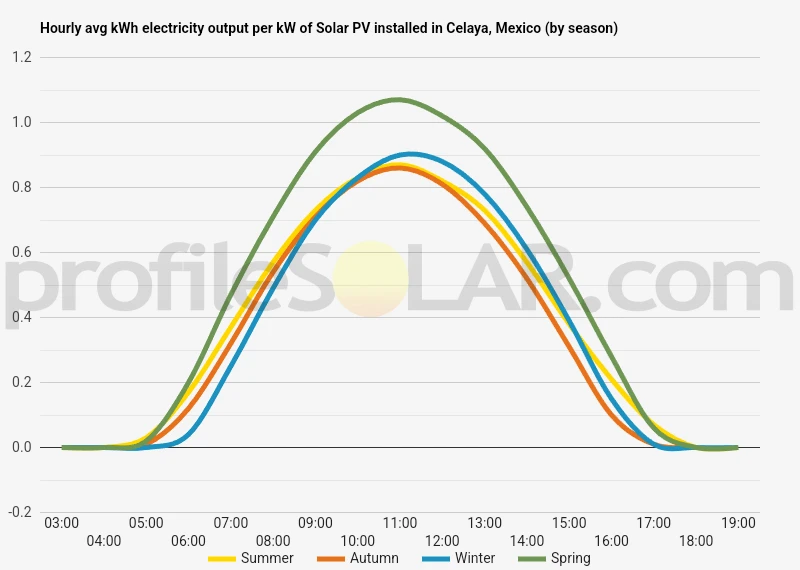

Solar output per kW of installed solar PV by season in Celaya

Seasonal solar PV output for Latitude: 20.4306, Longitude: -100.7872 (Celaya, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Celaya, Mexico

To maximize your solar PV system's energy output in Celaya, Mexico (Lat/Long 20.4306, -100.7872) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Celaya, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Celaya, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	26° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Celaya, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Celaya, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Celaya, Mexico

The topography surrounding Celaya, Mexico, is characterized by a diverse landscape that includes both flat plains and rolling hills. Situated in the central Mexican state of Guanajuato, Celaya lies within the Bajío region, known for its fertile lowlands and agricultural productivity. The city itself is located on a relatively flat area, with an elevation of approximately 1,750 meters (5,740 feet) above sea level. To the north and east of Celaya, the terrain gradually transitions into gently rolling hills and low mountains. These elevations are part of the larger Sierra Madre Oriental mountain range, which runs along the eastern coast of Mexico. While not as dramatic as the higher peaks found further east, these hills provide a scenic backdrop to the otherwise flat landscape around the city. South and west of Celaya, the topography is predominantly flat, with expansive plains stretching for miles. This area is part of the Bajío Valley, a broad, open region that has long been prized for its agricultural potential. The flat terrain is occasionally interrupted by small hills or isolated volcanic cones, remnants of the region's geological history.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, the flat plains to the south and west of Celaya offer the most promising locations. These areas have several advantages for solar energy development: Firstly, the flat terrain provides ample space for the installation of large solar arrays without the need for extensive land grading or modification. This reduces construction costs and minimizes environmental impact. Secondly, the open landscape ensures minimal shading from natural features like mountains or forests, allowing for maximum solar exposure throughout the day. This is crucial for optimizing energy production from solar panels. Additionally, the region's semi-arid climate contributes to high levels of solar irradiance, making it an ideal location for harnessing solar energy. The Bajío region experiences relatively low annual rainfall and numerous clear, sunny days, which are favorable conditions for solar PV systems. It's worth noting that while the flat areas are most suitable, some of the gently rolling hills to the north and east could also be considered for solar installations. These locations might offer the added benefit of slightly cooler temperatures due to elevation, which can improve the efficiency of solar panels. However, careful site selection would be necessary to avoid areas with excessive slope or uneven terrain that could complicate installation and maintenance. In conclusion, the diverse topography around Celaya provides several options for large-scale solar PV development, with the flat plains to the south and west being particularly well-suited for such projects.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
