Chiautla, México, Mexico represents an excellent location for year-round solar energy generation. Located in the tropics at coordinates 19.5759°N, -98.8768°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output data for Chiautla shows remarkably consistent performance across most seasons. Winter and summer months produce nearly identical results, with 5.86 kWh per day per kW of installed solar capacity in winter and 5.88 kWh per day in summer. Autumn shows a slight dip to 5.60 kWh per day, but spring delivers the strongest performance at 7.25 kWh per day per kW of installed capacity. This seasonal pattern makes Chiautla particularly attractive for solar installations, as the location avoids the dramatic winter production drops experienced in higher latitude regions. The spring peak coincides with increased solar intensity as the sun reaches higher angles in the sky.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 19 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year, Earth's elliptical orbit, and local solar irradiance patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Chiautla:

• Seasonal rainfall: The tropical wet season can reduce solar output due to cloud cover and frequent precipitation
• High humidity: Moisture in the air can scatter sunlight and reduce panel efficiency
• Dust accumulation: Dry periods may lead to dust buildup on panel surfaces
• Tropical storms: The region may experience severe weather events that could damage installations

Preventative Measures for Enhanced Performance

To maximize solar energy production and system longevity in Chiautla, México, several installation strategies should be considered:

• Robust mounting systems: Use reinforced mounting structures designed to withstand high winds and potential storm conditions
• Regular cleaning schedules: Implement routine panel cleaning to remove dust, debris, and organic matter that accumulates during both wet and dry seasons
• Proper drainage: Ensure installation areas have adequate drainage to prevent water pooling around equipment
• Ventilation spacing: Allow sufficient air circulation behind panels to prevent overheating in the tropical climate
• Quality sealing: Use high-grade weatherproof sealing on all electrical connections to protect against humidity and moisture infiltration

Despite these challenges, Chiautla's consistent solar resource makes it highly suitable for solar energy projects. The relatively minor seasonal variation in output, combined with strong spring performance, provides reliable energy generation potential throughout the year when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

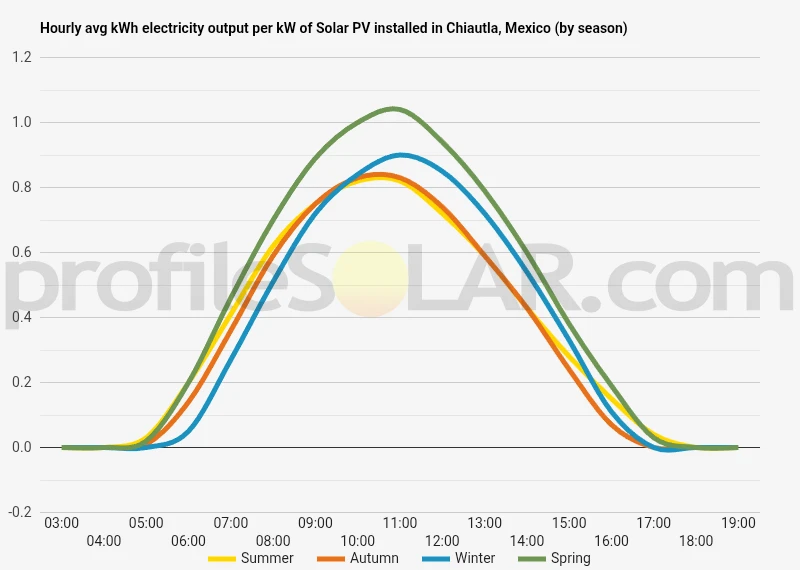

Solar output per kW of installed solar PV by season in Chiautla

Seasonal solar PV output for Latitude: 19.5759, Longitude: -98.8768 (Chiautla, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Chiautla, Mexico

To maximize your solar PV system's energy output in Chiautla, Mexico (Lat/Long 19.5759, -98.8768) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chiautla, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chiautla, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	26° South in Autumn	35° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chiautla, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chiautla, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chiautla, Mexico

Topographical Features of Chiautla, Mexico

Chiautla sits within the rugged landscape of central Mexico, positioned in the state of Puebla at an elevation of approximately 1,200 meters above sea level. The terrain around this region is characterized by rolling hills and moderate mountainous features that are typical of the Trans-Mexican Volcanic Belt. The area experiences a transitional topography where the higher elevations of the Sierra Madre Oriental begin to give way to more gentle slopes and valleys.

The immediate vicinity of Chiautla features a mix of agricultural valleys and scattered hills, with elevations ranging from about 1,000 to 1,800 meters in the broader region. The landscape is punctuated by seasonal streams and small rivers that flow through the valleys, creating natural drainage patterns that have shaped the local terrain over millennia. These waterways tend to carve out relatively flat bottomlands between the hills, while the slopes themselves vary from gentle to moderately steep.

The geological foundation consists primarily of volcanic rocks and sedimentary deposits, which have weathered to create soils that support both agriculture and natural vegetation. Much of the area has been modified by human activity, with terraced fields and cleared lands creating a patchwork of open spaces interspersed with remaining stands of oak and pine forests on the higher elevations.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Chiautla would be the broader valley floors and gentle slopes that extend to the north and east of the town. These areas offer relatively flat terrain with minimal grading requirements, which significantly reduces construction costs and environmental impact. The agricultural plains that stretch toward the municipalities of Tepeaca and Tecamachalco present particularly attractive opportunities, as they combine suitable topography with existing road access.

The elevated plateaus at moderate elevations between 1,100 and 1,400 meters provide excellent conditions for solar development. These locations benefit from stable ground conditions, reduced atmospheric moisture compared to lower elevations, and natural drainage that prevents water accumulation during the rainy season. The areas southwest of Chiautla, toward the flatter portions of the Puebla valley system, offer extensive tracts of land with gentle slopes that face favorable directions for solar collection.

Areas to avoid would include the steeper hillsides and ridgelines that surround the valleys, as these present challenges for panel installation and maintenance access. The narrow canyon areas and locations prone to seasonal flooding should also be excluded from consideration. The most suitable zones are those agricultural areas and grasslands where the slope remains below 5 degrees, infrastructure access already exists, and the terrain provides natural wind circulation to help cool the solar panels.

The region's elevation provides advantages in terms of reduced atmospheric filtering of solar radiation, while the relatively stable weather patterns and low seismic activity make it well-suited for long-term solar infrastructure investments. The combination of favorable topography and existing agricultural land use creates opportunities for large-scale solar development that could coexist with or transition from current land uses.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
