Chilpancingo, Guerrero, Mexico represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates 17.3908°N, -99.6974°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature changes seen in temperate climates.

Solar Energy Production Performance

The solar energy output data reveals that Chilpancingo delivers strong and relatively consistent performance across all seasons. Spring emerges as the peak production period, generating 7.64 kWh per day per kW of installed solar capacity. Summer and winter show similar moderate performance at 6.06 kWh/day and 5.95 kWh/day respectively, while autumn registers the lowest output at 5.91 kWh/day. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 17 degrees facing south. This angle has been calculated to maximize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance potential.

Environmental and Weather Challenges

Several significant factors in Chilpancingo can impact solar energy production and require careful consideration during installation planning. Seasonal Rainfall and Humidity The tropical climate brings intense wet seasons with heavy rainfall and high humidity levels. While rain can help clean solar panels naturally, excessive moisture can lead to corrosion of mounting systems and electrical components. Additionally, frequent cloud cover during rainy periods reduces solar irradiance, though this is already reflected in the seasonal output variations. Dust and Particulate Matter During dry seasons, dust accumulation on solar panels can significantly reduce energy output by blocking sunlight from reaching the photovoltaic cells. The mountainous terrain around Chilpancingo can contribute to dust and debris being carried by winds. Seismic Activity Mexico's location along active tectonic zones means earthquake risks must be considered when designing solar installations. Ground movement can damage both panels and mounting structures if not properly engineered.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install corrosion-resistant mounting systems using marine-grade aluminum or galvanized steel with proper protective coatings
• Implement regular cleaning schedules, particularly during dry seasons, or install automated cleaning systems
• Design mounting structures to meet local seismic building codes with appropriate flexibility and reinforcement
• Ensure proper drainage around ground-mounted systems to prevent water pooling during heavy rains
• Use high-quality electrical components with appropriate weatherproofing ratings for tropical conditions

Overall Assessment

Despite these environmental considerations, Chilpancingo remains a highly suitable location for solar energy generation. The consistent tropical sunlight and relatively stable year-round production levels make it an attractive option for both residential and commercial solar installations. With proper planning and installation techniques that account for local weather patterns and environmental factors, solar PV systems can operate efficiently and reliably throughout the year. The key to success lies in selecting appropriate equipment designed for tropical conditions and implementing regular maintenance schedules to address the specific challenges posed by the local climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

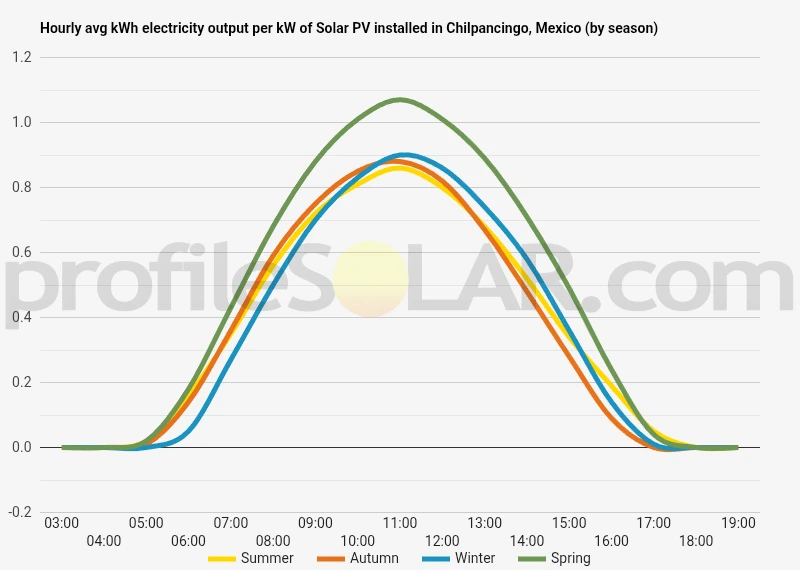

Solar output per kW of installed solar PV by season in Chilpancingo

Seasonal solar PV output for Latitude: 17.3908, Longitude: -99.6974 (Chilpancingo, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° South in Chilpancingo, Mexico

To maximize your solar PV system's energy output in Chilpancingo, Mexico (Lat/Long 17.3908, -99.6974) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chilpancingo, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chilpancingo, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	23° South in Autumn	33° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chilpancingo, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chilpancingo, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chilpancingo, Mexico

Topographical Features of Chilpancingo

Chilpancingo, the capital city of Guerrero state in southern Mexico, sits nestled within a complex mountainous landscape that defines much of the region's character. The city itself is positioned at an elevation of approximately 1,250 meters above sea level, surrounded by the rugged terrain of the Sierra Madre del Sur mountain range. This positioning creates a bowl-like valley setting, with steep hillsides and ridges extending in multiple directions from the urban center. The immediate surroundings of Chilpancingo feature a mix of rolling hills, deep valleys, and sharp ridgelines that are characteristic of this part of the Mexican highlands. The terrain transitions from relatively gentle slopes near the city center to increasingly dramatic elevation changes as one moves away from the urban area. Many of the nearby hills rise several hundred meters above the city floor, creating a landscape of significant vertical relief that poses both opportunities and challenges for large-scale development projects.

Drainage Patterns and Valley Systems

The region's topography is heavily influenced by water drainage patterns, with several seasonal streams and small rivers carving valleys through the mountainous terrain. These waterways have created natural corridors of flatter land that wind between the hills, though many of these areas remain relatively narrow. The broader valley floors, where they exist, tend to be concentrated closer to the city center and along the main transportation corridors that connect Chilpancingo to other regional centers. The surrounding landscape shows clear evidence of both ancient geological processes and more recent erosional activity. Rocky outcrops are common throughout the area, and the soil depth varies considerably depending on location and slope angle. Steeper areas often have thin soil cover over bedrock, while the valley bottoms and gentler slopes have accumulated deeper, more fertile soils over time.

Optimal Areas for Solar Development

For large-scale solar photovoltaic installations, the most promising areas around Chilpancingo would be the relatively flat to gently sloping valley floors and mesa-like elevated plateaus that exist scattered throughout the region. These locations offer the dual advantages of reduced construction complexity and minimal shading from surrounding terrain features. The areas immediately southeast and northwest of the city center contain some of the most extensive flat terrain suitable for solar development. The elevated plateaus and broad ridgetops found at various points around Chilpancingo present particularly attractive opportunities for solar installations. These locations not only provide the flat surfaces necessary for efficient solar panel deployment but also tend to have fewer obstructions from trees or other vegetation. Additionally, the higher elevation positions often experience better air circulation, which can help maintain optimal operating temperatures for photovoltaic equipment. Areas along the major valley systems that extend outward from Chilpancingo also show promise for solar development, particularly where these valleys widen and create substantial flat areas. The transportation infrastructure that follows these natural corridors would facilitate both construction access and eventual power transmission connections. However, careful site selection would be necessary to avoid areas prone to seasonal flooding or excessive moisture retention. The rolling hills that characterize much of the intermediate terrain around Chilpancingo could accommodate solar installations on their southern-facing slopes, though such projects would require more complex engineering and potentially higher construction costs. The key would be identifying slopes with appropriate gradients that provide good solar exposure while remaining feasible for large-scale development and maintenance access.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
