Ciudad Hidalgo, Michoacán, Mexico presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 19.6908°N, -100.5487°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data for Ciudad Hidalgo demonstrates excellent potential across all seasons:

• Spring: 7.88 kWh/day per kW of installed solar (highest production)
• Winter: 6.02 kWh/day per kW of installed solar
• Summer: 5.84 kWh/day per kW of installed solar
• Autumn: 5.66 kWh/day per kW of installed solar (lowest production)

Spring emerges as the optimal season for solar generation, producing nearly 40% more energy than the lowest-performing autumn season. Even during the least productive period, the location still generates substantial solar energy, making it viable for consistent year-round operation. For maximum efficiency with a fixed panel installation at this location, solar panels should be tilted at 19 degrees facing south. This angle has been calculated to optimize total year-round solar production by accounting for the sun's changing position throughout the seasons and the Earth's elliptical orbit pattern.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Ciudad Hidalgo, Michoacán, though the location remains highly suitable overall. The tropical climate brings distinct wet and dry seasons, with the rainy season typically occurring during summer and early autumn months. This corresponds with the slightly lower solar output figures during these periods. Heavy cloud cover during rainy periods can reduce solar irradiance, while frequent precipitation may require more regular panel cleaning to maintain optimal performance. Dust accumulation presents another consideration, particularly during dry seasons when rainfall is insufficient to naturally clean panel surfaces. The region's agricultural activities and occasional volcanic ash from nearby volcanic regions could contribute to dust buildup on solar installations. High humidity levels, common in tropical locations, can potentially affect electrical components over time if not properly protected against moisture infiltration.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges. Regular maintenance scheduling becomes crucial, with panel cleaning recommended at least monthly during dry seasons and bi-weekly during dusty periods. Installing panels with adequate spacing allows for proper air circulation, helping to reduce moisture buildup and improve cooling efficiency. Choosing high-quality mounting systems with proper drainage prevents water accumulation around panel frames. Electrical components should feature robust weatherproofing and corrosion-resistant materials suitable for high-humidity environments. Installing monitoring systems allows for quick identification of performance drops that might indicate cleaning needs or equipment issues. Tilt and orientation optimization using the recommended 19-degree south-facing angle ensures maximum energy capture throughout the year. Despite these considerations, Ciudad Hidalgo's consistent tropical sunlight and strong seasonal production figures make it an excellent location for solar PV installations, with proper planning and maintenance ensuring optimal long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

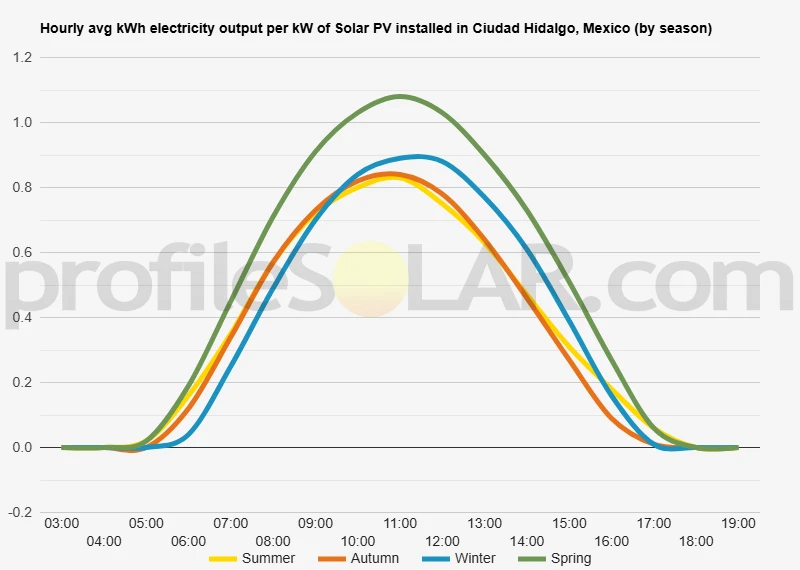

Solar output per kW of installed solar PV by season in Ciudad Hidalgo

Seasonal solar PV output for Latitude: 19.6908, Longitude: -100.5487 (Ciudad Hidalgo, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Ciudad Hidalgo, Mexico

To maximize your solar PV system's energy output in Ciudad Hidalgo, Mexico (Lat/Long 19.6908, -100.5487) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ciudad Hidalgo, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ciudad Hidalgo, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	26° South in Autumn	35° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ciudad Hidalgo, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ciudad Hidalgo, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ciudad Hidalgo, Mexico

Topographical Features of Ciudad Hidalgo

Ciudad Hidalgo sits within the Trans-Mexican Volcanic Belt, a geological region characterized by rolling hills, volcanic formations, and relatively moderate elevations. The terrain around this area displays a mix of gentle slopes and more pronounced undulations, typical of volcanic landscapes that have been shaped over millennia by both tectonic activity and erosion processes. The immediate surroundings feature elevations ranging from approximately 1,900 to 2,200 meters above sea level, creating a landscape of modest hills and valleys. These volcanic soils, while fertile for agriculture, also provide stable foundations for infrastructure development. The region experiences a temperate climate due to its elevation, with the topography contributing to relatively consistent weather patterns throughout the year.

Drainage and Water Features

The area's drainage patterns follow the natural contours of the volcanic terrain, with several small streams and seasonal waterways flowing through the valleys. These water features generally pose minimal obstacles to large-scale development, as they tend to be relatively small and follow predictable seasonal patterns. The volcanic substrate provides good drainage characteristics, reducing concerns about waterlogging or unstable ground conditions that might affect solar installations.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the gentler slopes and plateau areas that characterize much of the terrain south and southwest of Ciudad Hidalgo. These areas offer several advantages for solar development, including relatively flat or gently sloping ground that minimizes the need for extensive grading or terracing. The elevated plateaus and broad ridges in the region provide excellent exposure to solar radiation while maintaining accessibility for construction and maintenance activities. These locations typically feature stable volcanic soils that can support the weight of solar panel arrays and associated infrastructure without requiring extensive foundation work.

Geographic Advantages for Solar Installation

The volcanic nature of the terrain provides naturally well-drained sites that reduce moisture-related concerns for electrical equipment. The moderate slopes found throughout the area can actually be beneficial for solar installations, as they allow for optimal panel orientation while facilitating natural cleaning through rainfall runoff. Areas with southern-facing slopes of 5 to 15 degrees would be particularly well-suited for solar development, as they combine the benefits of good solar exposure with manageable construction challenges. The region's relatively open landscape, with scattered agricultural plots and grasslands, means that large contiguous areas are available for development without significant obstacles from dense vegetation or urban development. The transportation infrastructure in the region, while modest, provides adequate access to potential solar sites via existing rural roads that could be upgraded to support construction and maintenance vehicles. The proximity to existing electrical transmission infrastructure also makes grid connection more feasible for large-scale solar projects in this area.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
