Ciudad Madero, Tamaulipas, Mexico, situated at 22.3355° N, -97.8368° W, offers a promising location for solar energy generation throughout the year. Located in the tropics, this coastal city experiences relatively consistent sunlight and is characterized more by wet and dry seasons than traditional four-season patterns.

Seasonal Solar Production

Solar energy production in Ciudad Madero varies across the meteorological seasons. Summer yields the highest output at 6.40 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.93 kWh/day, while autumn produces 5.04 kWh/day. Winter, although less productive, still generates a respectable 3.87 kWh/day.

The most ideal times for solar generation are during the summer months, typically from June to August, when daylight hours are longest and solar intensity is at its peak. Spring and autumn also offer excellent conditions for solar energy production.

Optimal Panel Tilt

For fixed solar panel installations in Ciudad Madero, Tamaulipas, the ideal tilt angle to maximize year-round production is 20 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the city's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Ciudad Madero's climate is generally favorable for solar energy, there are some environmental factors to consider:

1. Hurricanes and tropical storms: The city's coastal location makes it vulnerable to these weather events, which could potentially damage solar installations.
2. High humidity: The tropical climate can lead to increased moisture, potentially affecting solar panel efficiency and longevity.
3. Salt air corrosion: Proximity to the Gulf of Mexico exposes equipment to salt air, which can accelerate corrosion of metal components.

Preventative Measures

To mitigate these environmental challenges and ensure optimal solar energy production, consider the following preventative measures:

• Use corrosion-resistant materials and protective coatings on all solar equipment
• Install robust mounting systems designed to withstand high winds
• Implement regular cleaning and maintenance routines to combat salt and humidity buildup
• Consider micro-inverter systems, which can minimize production losses if individual panels are damaged

By addressing these factors during installation and maintenance, solar energy systems in Ciudad Madero can capitalize on the area's abundant sunlight and achieve high levels of energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

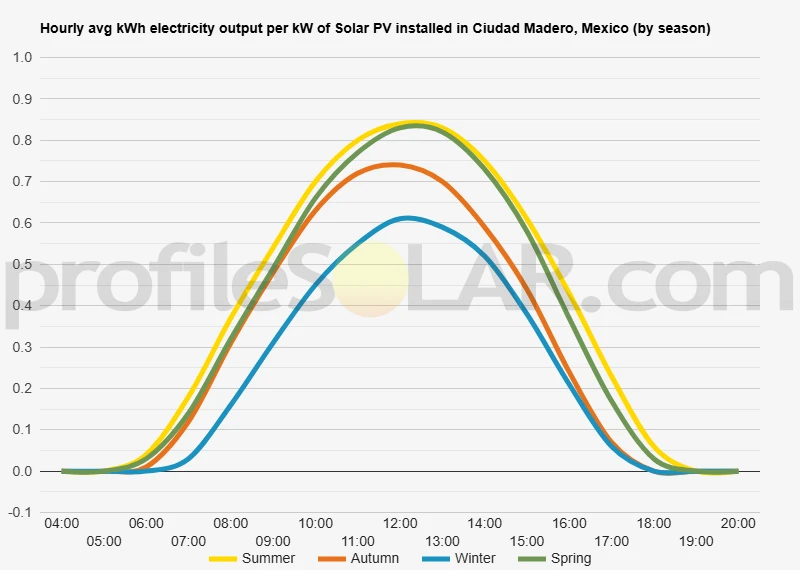

Solar output per kW of installed solar PV by season in Ciudad Madero

Seasonal solar PV output for Latitude: 22.3355, Longitude: -97.8368 (Ciudad Madero, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Ciudad Madero, Mexico

To maximize your solar PV system's energy output in Ciudad Madero, Mexico (Lat/Long 22.3355, -97.8368) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ciudad Madero, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ciudad Madero, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	28° South in Autumn	38° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ciudad Madero, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ciudad Madero, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ciudad Madero, Mexico

Ciudad Madero, located on the Gulf Coast of Mexico, is characterized by a predominantly flat topography. The city and its surrounding areas are part of the Tamaulipas coastal plain, which extends along the eastern edge of the country. This region is known for its low-lying terrain with minimal elevation changes, making it a stark contrast to the mountainous regions found further inland. The landscape around Ciudad Madero is dominated by coastal features, including sandy beaches, lagoons, and estuaries. To the east, the city is bordered by the Gulf of Mexico, with long stretches of shoreline that are relatively level. Moving inland, the terrain remains mostly flat, with only slight undulations in the land. This flatness extends for several kilometers to the west before gradually giving way to more varied terrain.

Nearby Areas Suitable for Large-Scale Solar PV

The areas surrounding Ciudad Madero offer several promising locations for large-scale solar photovoltaic (PV) installations. The flat topography of the region is particularly advantageous for solar energy development, as it minimizes the need for extensive land preparation and allows for efficient arrangement of solar panels. One of the most suitable areas for solar PV development would be the open lands to the west and southwest of Ciudad Madero. These areas, which are less densely populated and have fewer urban developments, provide ample space for large solar farms. The lack of significant geographical obstacles in these regions would facilitate easier construction and maintenance of solar installations. Additionally, the coastal plains stretching north and south of Ciudad Madero could be potential sites for solar energy projects. These areas receive abundant sunlight throughout the year, a crucial factor for solar power generation. However, developers would need to consider the potential impact of coastal weather patterns, such as hurricanes and tropical storms, when planning installations in these regions. It's worth noting that while the immediate vicinity of Ciudad Madero is suitable for solar PV, moving further inland towards the west, where the terrain begins to vary more, could offer additional opportunities. These slightly elevated areas might provide better exposure to sunlight and reduced risk of flooding, which are important considerations for large-scale solar projects. In conclusion, the flat topography and abundant open spaces around Ciudad Madero make it a promising location for solar energy development. With careful planning and consideration of environmental factors, this region could become a significant contributor to Mexico's renewable energy portfolio.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
