Cortazar, Guanajuato, Mexico, located at 20.4915 latitude and -100.9548 longitude, represents a promising location for solar energy production throughout the year. This site in the Tropics benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight hours.

Seasonal Solar Performance

Solar panels at this location demonstrate strong year-round electricity generation potential. Spring stands out as the most productive season, with an impressive 8.00 kWh per day for each kilowatt of installed capacity. Summer follows with 6.38 kWh/day, while winter delivers a respectable 5.99 kWh/day. Autumn shows the lowest output at 5.79 kWh/day, though this still represents good production compared to many other global locations.

The exceptional spring performance likely results from a combination of clear skies, moderate temperatures, and favorable sun angles. This makes March through May an ideal period for maximum energy harvesting at this location.

Optimal Panel Installation

For fixed solar panel installations in Cortazar, Guanajuato, the ideal tilt angle is 19 degrees facing South. This specific angle has been calculated to maximize total annual energy production, taking into account the site's tropical latitude and the seasonal variations in the sun's position throughout the year.

Environmental Considerations

Several environmental factors could potentially impact solar production at this location:

• Dust accumulation: Cortazar's semi-arid climate can lead to dust buildup on panels, reducing efficiency. Regular cleaning schedules and possibly automated cleaning systems would help maintain optimal performance.
• Seasonal rainfall patterns: While rain can naturally clean panels, the region's distinct wet and dry seasons mean that manual cleaning may be necessary during extended dry periods.
• Temperature effects: High daytime temperatures, particularly in summer, can slightly reduce panel efficiency. Installing panels with adequate airflow beneath them and using temperature-resistant models can mitigate this issue.
• Potential for hail: Though infrequent, occasional hailstorms could damage panels. Using hail-resistant panels with appropriate certification is advisable for long-term reliability.

With these considerations addressed through proper system design and maintenance protocols, Cortazar presents an excellent location for solar PV installations with strong, consistent energy production potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

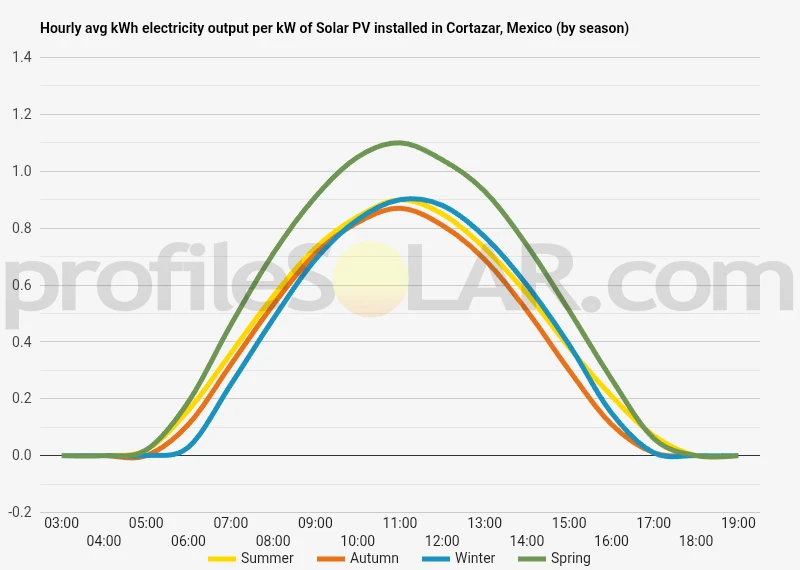

Solar output per kW of installed solar PV by season in Cortazar

Seasonal solar PV output for Latitude: 20.4915, Longitude: -100.9548 (Cortazar, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Cortazar, Mexico

To maximize your solar PV system's energy output in Cortazar, Mexico (Lat/Long 20.4915, -100.9548) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cortazar, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cortazar, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	26° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cortazar, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cortazar, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cortazar, Mexico

The region surrounding Cortazar, Mexico, in the state of Guanajuato, features a diverse topographical landscape characterized by a mix of flat valleys and rolling hills. Cortazar sits at an elevation of approximately 1,730 meters (5,675 feet) above sea level in the fertile Bajío region, which is known for its agricultural productivity. This area is part of the larger Trans-Mexican Volcanic Belt, though Cortazar itself is situated in a relatively level basin. To the north and east of Cortazar, the terrain gradually rises toward the Sierra de Guanajuato mountain range, creating a varied landscape with increasing elevation. These hills form part of the central Mexican plateau and provide a natural boundary for the Bajío lowlands. To the south, the terrain remains relatively flat before eventually rising toward the mountains that separate Guanajuato from Michoacán state.

Water Features and Drainage

The Lerma River, one of central Mexico's most significant waterways, flows not far from Cortazar, influencing the local topography through millennia of erosion and sediment deposition. This river system has created fertile alluvial plains that characterize much of the surrounding landscape. Several smaller streams and seasonal waterways also traverse the area, further shaping the local terrain through natural erosion processes.

Soil and Geological Characteristics

The soil composition around Cortazar is predominantly volcanic in origin, reflecting the region's geological history. These soils tend to be fertile and well-draining in the valley areas, while the hillier sections may have thinner soil layers over volcanic rock substrates. This geological foundation provides good stability for construction projects, including potential solar installations.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the relatively flat areas to the south and southwest of Cortazar present the most favorable conditions. These locations offer several advantages: The flat terrain minimizes the need for extensive land grading, reducing construction costs and environmental impact. These areas receive abundant solar radiation throughout the year due to their unobstructed exposure to the sun's path. The stable soil conditions provide a solid foundation for solar array mounting systems without requiring elaborate engineering solutions. Additionally, the agricultural plains that extend toward Salamanca and Celaya have the appropriate topographical characteristics for solar development. These areas feature minimal slope, good drainage, and accessibility to existing transportation infrastructure, which is crucial for the construction and maintenance of large solar installations.

Topographical Challenges

The hillier regions to the north present more significant challenges for large-scale solar development. These areas would require more extensive site preparation, potentially including terracing or specialized mounting systems designed for sloped terrain. While not impossible to develop, these locations would likely involve higher construction costs and greater environmental disruption. Some portions of the flat valley areas near water features may be subject to seasonal flooding, which would necessitate elevated mounting systems and careful site selection to avoid areas with poor drainage or flood risk. Environmental assessment would be particularly important in these zones to ensure sustainable development. The central Mexican plateau experiences occasional dust storms, particularly during the dry season, which could affect solar panel efficiency through particulate accumulation. This factor should be considered when selecting specific sites, with preference given to areas with natural windbreaks or the possibility of installing protective features.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
