Cuautla, Morelos, Mexico represents an excellent location for year-round solar photovoltaic energy generation. Positioned in the tropics at latitude 18.855°N and longitude -98.9542°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the temperature variations seen in temperate climates.

Solar Energy Production Potential

The solar energy output data for Cuautla demonstrates strong and reliable performance across all seasons. Spring emerges as the peak production period, delivering 7.73 kWh per day per kW of installed solar capacity. Summer follows closely with 6.68 kWh/day per kW, while autumn maintains solid output at 6.20 kWh/day per kW. Even winter, the lowest production season, still generates a respectable 5.97 kWh/day per kW. This seasonal variation of only 1.76 kWh between the highest and lowest production periods indicates exceptional consistency for solar energy generation. The relatively small difference between seasons makes Cuautla highly suitable for solar installations, as energy production remains predictable and substantial year-round. For fixed panel installations at this location, the ideal tilt angle is 18 degrees facing south. This angle maximizes total annual solar production by optimizing the panels' orientation relative to the sun's path throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Cuautla and require careful consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the rainy season typically occurring during summer and early autumn months. Heavy rainfall and increased cloud cover during these periods can reduce solar irradiance, though the production data suggests this impact is manageable. Frequent rain can actually benefit solar installations by naturally cleaning panels, but it also means higher humidity levels year-round. Dust accumulation presents a significant challenge in this region, particularly during the dry season. Mexico's central plateau experiences dust storms and airborne particles that can coat solar panels, reducing their efficiency substantially. The combination of agricultural activities in the surrounding areas and periodic volcanic ash from nearby volcanoes can exacerbate this issue. High humidity levels throughout the year, combined with temperature fluctuations between day and night, create conditions conducive to moisture buildup in electrical components. This can lead to corrosion and reduced system lifespan if not properly addressed.

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production and system longevity in Cuautla's environment. Regular cleaning schedules are essential, with panels requiring washing every 2-4 weeks during dry periods and monthly during the rainy season. Installing automated cleaning systems or ensuring easy access for manual cleaning can significantly improve energy output. Proper ventilation design becomes crucial in this humid environment. Mounting panels with adequate spacing from roof surfaces allows air circulation, preventing excessive heat buildup and moisture accumulation. This also helps maintain optimal operating temperatures for better efficiency. Using high-quality, humidity-resistant electrical components and ensuring proper sealing of all connections protects against moisture damage. Investing in corrosion-resistant mounting hardware and regular inspection of electrical connections helps prevent system degradation. Installing monitoring systems allows for early detection of performance issues, enabling prompt maintenance before problems significantly impact energy production. This proactive approach proves particularly valuable in challenging environmental conditions like those found in tropical locations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

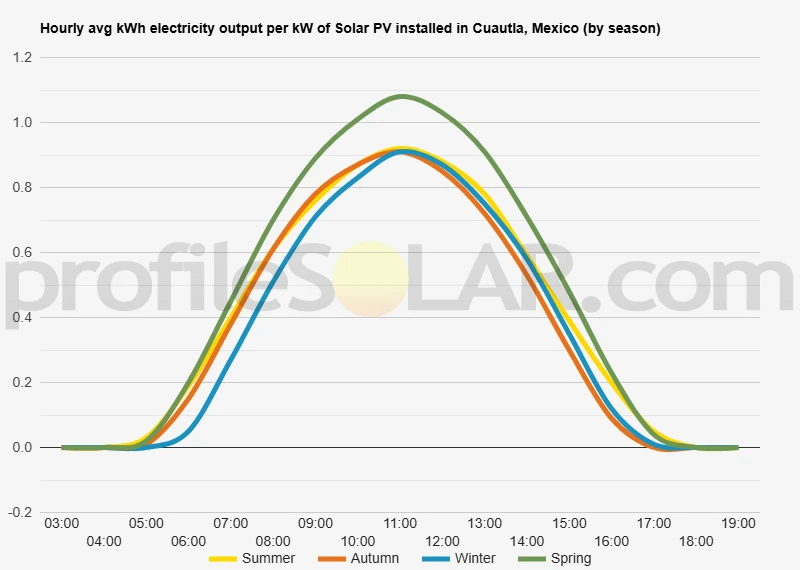

Solar output per kW of installed solar PV by season in Cuautla

Seasonal solar PV output for Latitude: 18.855, Longitude: -98.9542 (Cuautla, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Cuautla, Mexico

To maximize your solar PV system's energy output in Cuautla, Mexico (Lat/Long 18.855, -98.9542) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cuautla, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cuautla, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cuautla, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cuautla, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cuautla, Mexico

Topographical Features Around Cuautla

Cuautla sits in the state of Morelos within a distinctive valley formation in central Mexico. The city is positioned at approximately 1,300 meters above sea level, nestled within a broad, relatively flat valley that extends eastward from the foothills of the Sierra de Chichinautzin volcanic range. This valley floor provides generally level terrain with gentle undulations, making it considerably different from the more mountainous regions that characterize much of central Mexico.

The landscape immediately surrounding Cuautla consists primarily of agricultural plains and gently rolling hills. To the north and west, the terrain gradually rises toward the volcanic peaks of the Trans-Mexican Volcanic Belt, including the distant silhouettes of Popocatépetl and Iztaccíhuatl volcanoes. These mountainous areas create a natural barrier that influences local weather patterns and provides dramatic backdrop views from the valley floor.

Moving eastward from Cuautla, the topography becomes increasingly flat as it transitions toward the Balsas River basin. This eastern direction offers the most expansive areas of level ground, with minimal elevation changes across several kilometers. The valley floor in this direction is characterized by fertile alluvial soils deposited over millennia, creating broad stretches of relatively uniform terrain.

Solar Development Potential Areas

The most promising locations for large-scale solar photovoltaic installations lie primarily to the east and southeast of Cuautla, where the valley floor extends across considerable distances with minimal topographical obstacles. These areas benefit from consistent elevation levels and require minimal grading or site preparation work, significantly reducing construction costs and complexity.

The flat agricultural areas extending toward the municipalities of Yecapixtla and Ocuituco present particularly attractive characteristics for solar development. These zones offer large contiguous parcels of relatively level land with gentle slopes that naturally facilitate drainage while maintaining optimal panel positioning. The terrain in these areas typically features gradual elevation changes of less than five percent across extended distances, ideal for utility-scale solar arrays.

Areas to the immediate south of Cuautla also demonstrate favorable topographical conditions, though they tend to be slightly more undulating than the eastern expanses. The southern zones benefit from good accessibility via existing road networks while maintaining the gentle terrain characteristics necessary for efficient solar installation and maintenance operations.

The western approaches toward the volcanic foothills, while scenic, present more challenging topographical conditions with steeper grades and more irregular terrain. These areas would require significantly more site preparation and would likely prove less economical for large-scale solar development compared to the flatter eastern and southern alternatives.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
