El Cerro, Veracruz, Mexico presents a favorable location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year. The seasonal variations in this region are typically characterized by wet and dry periods rather than the traditional temperature-based seasons found in temperate climates.

Solar Energy Production Potential

The solar energy output data for El Cerro demonstrates strong potential across all seasons, though with notable seasonal variations. Summer produces the highest energy output at 5.78 kWh per day per kW of installed solar capacity, followed closely by spring at 5.70 kWh per day. Autumn generates 4.92 kWh per day, while winter shows the lowest production at 3.98 kWh per day per kW installed. The most productive periods for solar generation at this location are clearly spring and summer, when energy output exceeds 5.7 kWh daily per kW of installed capacity. Even during the least productive winter months, the location still generates nearly 4 kWh per day per kW, indicating consistent year-round viability for solar installations. For optimal performance, solar panels should be installed at a fixed tilt angle of 18 degrees facing south. This angle has been calculated to maximize total year-round production by accounting for the sun's changing position throughout the year, daily solar elevation angles, and weighting these factors against actual solar irradiance data.

Environmental and Weather Challenges

Several significant factors could impact solar energy production in El Cerro that require careful consideration during installation planning. The tropical climate brings substantial rainfall during wet seasons, which can reduce solar irradiance and create challenges for panel maintenance. Heavy rains can also lead to increased humidity and potential moisture-related issues with electrical components if not properly sealed and protected. Tropical storms and hurricanes pose serious threats to solar installations in this region. High winds can damage panels, mounting systems, and associated infrastructure, while heavy rains accompanying these weather events can cause flooding and electrical system damage. The consistently warm tropical temperatures, while beneficial for year-round operation, can actually reduce solar panel efficiency. Most solar panels lose efficiency as temperatures rise above their optimal operating range, which is typically around 25°C (77°F). High humidity levels common in tropical locations can accelerate corrosion of metal components and potentially cause issues with electrical connections over time. This can lead to reduced system performance and increased maintenance requirements.

Preventative Installation Measures

Several protective measures can significantly improve solar system performance and longevity in El Cerro's tropical environment. Wind-resistant mounting systems designed to withstand hurricane-force winds are essential. These should be engineered to local building codes and weather patterns, with secure anchoring systems that can handle extreme wind loads. Panel frames and mounting hardware should use marine-grade materials resistant to corrosion from salt air and high humidity. Proper drainage design around solar installations prevents water accumulation that could damage electrical components or create safety hazards. Elevated mounting systems can help protect against potential flooding, while ensuring adequate spacing between panels allows for proper air circulation and cooling. Electrical components require enhanced weatherproofing beyond standard installations. This includes using sealed inverters rated for outdoor tropical conditions, waterproof electrical connections, and conduits designed to prevent moisture infiltration. Regular maintenance schedules should account for the more challenging environmental conditions. Panel selection should prioritize models with better high-temperature performance coefficients and robust construction designed for tropical climates. Anti-reflective coatings can help maintain efficiency, while choosing panels with lower temperature coefficients will minimize efficiency losses during hot weather. Vegetation management around installations prevents shading issues while reducing fire risks during dry seasons. Regular cleaning schedules become more important due to faster accumulation of organic debris and dust in tropical environments.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

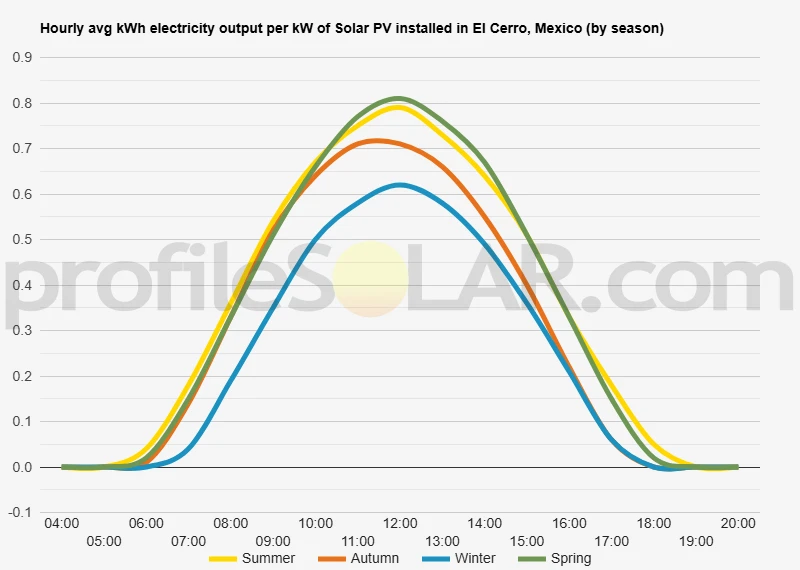

Solar output per kW of installed solar PV by season in El Cerro

Seasonal solar PV output for Latitude: 20.2713, Longitude: -97.5513 (El Cerro, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in El Cerro, Mexico

To maximize your solar PV system's energy output in El Cerro, Mexico (Lat/Long 20.2713, -97.5513) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Cerro, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Cerro, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	26° South in Autumn	36° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Cerro, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Cerro, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Cerro, Mexico

Topographical Characteristics of El Cerro Region

El Cerro sits within the coastal plains of Veracruz state in eastern Mexico, positioned between the Gulf of Mexico to the east and the foothills of the Sierra Madre Oriental mountain range to the west. The immediate area around these coordinates features relatively flat to gently rolling terrain, characteristic of the broader Veracruz coastal plain that extends inland from the Gulf shores. The elevation in this region remains fairly modest, with the landscape gradually rising from near sea level along the coast to moderate elevations as it approaches the mountainous interior. This transitional zone between the coastal lowlands and the highland regions creates a varied topographical environment with mixed terrain types. The local topography includes scattered low hills and undulating plains, interspersed with river valleys that drain eastward toward the Gulf of Mexico. These waterways have created natural corridors through the landscape, contributing to the region's agricultural character. The soil composition reflects both coastal influences and inland sedimentary deposits, creating fertile conditions that have historically supported farming activities.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the flatter portions of the coastal plain extending eastward from El Cerro toward the Gulf coast. These areas offer several advantages including minimal elevation changes that reduce construction and maintenance costs, while providing adequate space for large arrays without significant grading requirements. The gently sloping terrain south and southeast of El Cerro presents particularly favorable conditions for solar development. These areas combine relatively level ground with good drainage characteristics, reducing concerns about water accumulation during the region's wet season. The natural slope also facilitates optimal panel orientation and spacing. Areas to avoid for large-scale solar installations include the more pronounced hills and ridges that become increasingly common as one moves westward toward the Sierra Madre Oriental foothills. These elevated and irregular terrains would require extensive site preparation and could create shading issues between panel rows. Additionally, the river valleys and flood-prone lowlands closer to the coast present challenges related to seasonal water management and potential flooding risks. The agricultural plains that characterize much of the surrounding region offer excellent potential for solar development, particularly on land that may be transitioning away from farming use. These areas typically feature cleared land with established access routes, reducing initial development costs while providing the flat, unobstructed conditions ideal for maximizing solar panel efficiency and accessibility for maintenance operations.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
