El Llano, Aguascalientes, Mexico represents an excellent location for year-round solar photovoltaic energy generation. Positioned in the tropics at coordinates 21.9215°N, -102.0354°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations typically characterized by wet and dry periods rather than dramatic temperature changes.

Solar Energy Output Performance

The solar energy production data for El Llano shows strong performance across all seasons, with some notable variations. Spring emerges as the peak season, delivering an impressive 8.34 kWh per day per kW of installed solar capacity. Summer follows with solid production at 6.72 kWh per day per kW, while autumn and winter maintain consistent output at 5.90 and 5.93 kWh per day per kW respectively. Spring stands out as the ideal time for solar generation at this location, producing approximately 41% more energy than the lowest-performing season. This seasonal peak likely coincides with optimal atmospheric conditions and sun angles before the onset of the wet season.

Optimal Panel Configuration

For maximum year-round solar production at El Llano, Aguascalientes, fixed solar panels should be tilted at 20 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying elevation throughout the year, Earth's elliptical orbit, and local solar irradiance patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this Mexican location:

• Seasonal rainfall: The tropical wet season can reduce solar output through cloud cover and atmospheric moisture
• Dust accumulation: Mexico's arid periods and agricultural activities can deposit dust and particles on solar panels
• High temperatures: Extreme heat can reduce panel efficiency despite abundant sunlight
• Hail risk: Tropical storm systems may occasionally produce damaging hail

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered. Regular cleaning systems or easy access for manual panel cleaning can address dust accumulation effectively. Installing panels with adequate ventilation underneath helps manage heat buildup and maintains optimal operating temperatures. Selecting panels with appropriate hail ratings and considering protective measures during severe weather seasons will ensure system longevity. Additionally, designing systems with slight panel tilts aids natural rainwater cleaning during wet seasons, helping maintain peak performance. Overall, El Llano's tropical location offers excellent solar potential year-round, with spring representing the optimal generation period. Proper installation techniques can effectively mitigate most environmental challenges while maximizing this location's substantial solar energy advantages.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

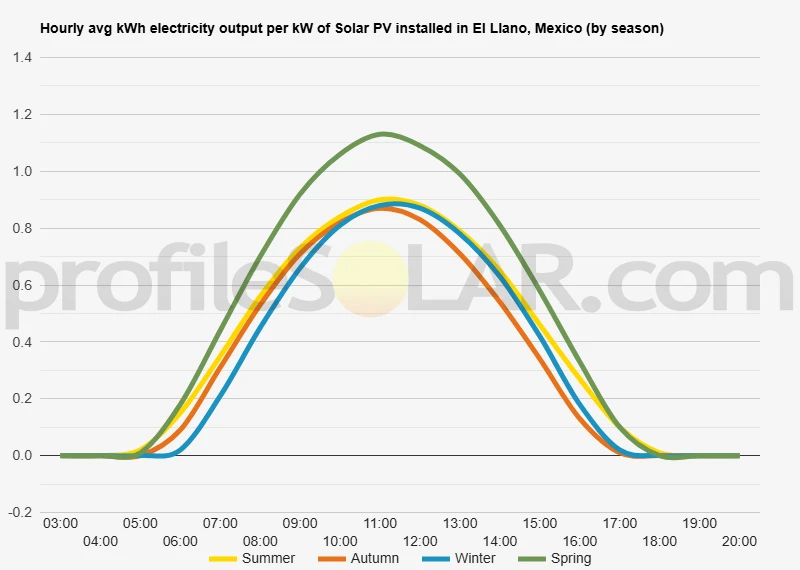

Solar output per kW of installed solar PV by season in El Llano

Seasonal solar PV output for Latitude: 21.9215, Longitude: -102.0354 (El Llano, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in El Llano, Mexico

To maximize your solar PV system's energy output in El Llano, Mexico (Lat/Long 21.9215, -102.0354) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Llano, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Llano, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	28° South in Autumn	37° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Llano, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Llano, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Llano, Mexico

Topographical Characteristics of El Llano

El Llano sits within the central Mexican plateau region known as the Mesa Central, characterized by relatively flat to gently rolling terrain at an elevation of approximately 2,000 meters above sea level. This area forms part of the broader Bajío region, which translates to "lowland" in Spanish, though the term refers more to its position relative to surrounding mountain ranges rather than absolute elevation. The landscape around El Llano consists primarily of expansive plains and gentle undulations, with minimal steep slopes or dramatic elevation changes.

The region benefits from its position between major mountain systems, creating a natural basin with excellent drainage characteristics. To the west, the Sierra Madre Occidental rises dramatically, while smaller mountain ranges and hills dot the eastern horizon. These surrounding elevations help create the relatively stable, flat terrain that defines the immediate area around El Llano.

The local topography features predominantly agricultural lands with large, open fields that stretch across the landscape. Natural vegetation in undeveloped areas consists mainly of grasslands and scattered shrubland typical of the semi-arid central Mexican plateau. The terrain shows minimal rocky outcroppings or dense forest cover, with most of the landscape presenting as accessible, developable land.

Optimal Areas for Large-Scale Solar Development

The expansive flat plains extending southward and eastward from El Llano present the most promising opportunities for large-scale solar photovoltaic installations. These areas offer several kilometers of continuous, relatively level terrain with minimal natural obstacles or significant elevation changes that could create shading issues for solar arrays.

The agricultural fields surrounding the community, particularly those on slightly elevated plateaus, would be well-suited for solar development due to their existing cleared status and gentle gradients. These locations typically feature good natural drainage, reducing concerns about water accumulation around solar equipment during seasonal rains.

Areas to the northwest of El Llano, where the terrain remains flat but begins to rise slightly toward distant mountain foothills, could also accommodate large solar installations. This slightly elevated positioning would provide natural drainage advantages while maintaining the essential flat characteristics needed for efficient solar panel placement and maintenance access.

The most suitable zones would avoid the immediate floodplains of any seasonal waterways while taking advantage of the region's naturally open landscape. The combination of minimal vegetation, stable soils typical of the central plateau, and excellent accessibility via existing rural road networks makes much of the surrounding area highly compatible with utility-scale solar development.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
