Ensenada, Mexico presents a highly favorable location for year-round solar energy generation, with consistently strong solar production potential throughout all seasons. Located in the Northern Sub Tropics at coordinates 31.8153, -116.606, this coastal Baja California city offers excellent conditions for solar photovoltaic installations.

Seasonal Solar Production Performance

The solar energy output at Ensenada shows impressive consistency across the year. Summer delivers the highest production at 7.52 kWh per day per kW of installed solar capacity, closely followed by spring at 7.43 kWh per day per kW. Even during the lower-production seasons, autumn maintains a respectable 5.45 kWh per day per kW, while winter, though the weakest season, still produces a solid 4.13 kWh per day per kW. Spring and summer represent the optimal periods for solar generation at this location, with both seasons producing nearly identical high output levels. The relatively modest drop-off during autumn and winter means that solar installations remain productive year-round, making this an excellent location for consistent renewable energy generation.

Optimal Panel Installation

For maximum year-round solar production at Ensenada, fixed solar panels should be tilted at 28 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying elevation angles throughout the year, weighted by the actual solar irradiance potential at this specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at Ensenada, though the location remains highly suitable overall:

• Marine Layer and Coastal Fog: Being a coastal city, Ensenada experiences marine layer conditions, particularly during morning hours in late spring and early summer months
• Salt Air Corrosion: The proximity to the Pacific Ocean means solar installations face constant exposure to salt-laden air
• Dust and Sand Accumulation: The semi-arid climate and occasional desert winds can deposit dust and fine particles on solar panels
• Seasonal Wind Patterns: Strong seasonal winds, particularly the Santa Ana-type conditions, can carry additional debris

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several installation strategies prove effective:

• Anti-Corrosion Materials: Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed for coastal environments
• Enhanced Panel Coatings: Install panels with hydrophobic and anti-soiling surface treatments that help shed moisture and reduce dust adhesion
• Regular Maintenance Schedule: Implement monthly cleaning routines, particularly important during dry periods when dust accumulation peaks
• Proper Drainage Design: Ensure mounting systems allow adequate water runoff to prevent salt buildup and corrosion
• Wind-Resistant Installation: Use reinforced mounting systems rated for higher wind loads to handle seasonal wind events

Despite these environmental considerations, Ensenada's strong solar irradiance levels and favorable climate make it an excellent location for solar energy generation. With proper installation techniques and regular maintenance, solar installations can achieve their full potential in this Northern Sub Tropical location.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

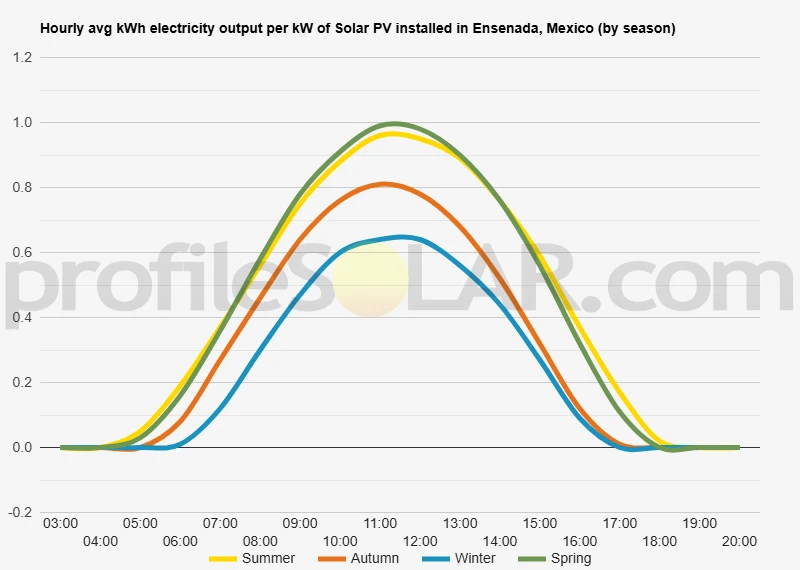

Solar output per kW of installed solar PV by season in Ensenada

Seasonal solar PV output for Latitude: 31.8153, Longitude: -116.606 (Ensenada, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Ensenada, Mexico

To maximize your solar PV system's energy output in Ensenada, Mexico (Lat/Long 31.8153, -116.606) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ensenada, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ensenada, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ensenada, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ensenada, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ensenada, Mexico

Topographical Features of Ensenada

Ensenada sits along the Pacific coast of Baja California, Mexico, positioned where rolling coastal hills meet the ocean. The city itself occupies a natural bay area with relatively gentle topography, surrounded by undulating terrain that gradually rises inland from the coastline. The immediate coastal zone features low-lying areas and modest elevation changes, making it accessible for urban development and infrastructure.

Moving eastward from the coast, the landscape transitions into a series of rolling hills and valleys characteristic of the Mediterranean-like climate zone. These hills typically range from gentle slopes to moderate inclines, with elevations gradually increasing as one moves away from the Pacific Ocean. The terrain includes numerous small valleys and ridgelines that create a varied but generally manageable topographical profile.

Further inland, the topography becomes more pronounced with higher elevations and steeper gradients. The region features a mix of chaparral-covered hills and agricultural valleys, with some areas reaching significant elevations that offer expansive views of the surrounding landscape. The overall geological structure consists of sedimentary and volcanic formations that have been shaped by coastal and tectonic processes over time.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ensenada lie in the inland valleys and plateau areas, particularly those situated 15 to 30 kilometers east and southeast of the city center. These areas offer the ideal combination of relatively flat terrain, minimal coastal fog influence, and adequate space for extensive solar arrays.

The Valle de Guadalupe region, known primarily for its wine production, contains numerous flat to gently sloping areas that would be excellent candidates for solar development. The valley floors and lower hillsides provide stable ground conditions and sufficient space for large installations while remaining accessible for construction and maintenance activities.

Areas along the eastern edges of the coastal hills, where the terrain levels out into broader valleys, present another prime opportunity for solar development. These locations benefit from being inland enough to avoid the marine layer effects that can reduce solar irradiance near the coast, while still maintaining reasonable proximity to existing electrical infrastructure and transportation networks.

The higher elevation plateaus and mesa formations southeast of Ensenada also offer excellent potential for solar installations. These areas typically feature stable, well-drained soils and expansive flat surfaces that can accommodate large-scale solar farms. The elevated positions provide consistent exposure to direct sunlight throughout the day while avoiding the shadowing effects that can occur in narrow valleys or areas surrounded by higher terrain.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
