Grajales, Puebla, Mexico presents an excellent location for year-round solar energy generation. Located in the tropics at coordinates 19.2417°N, -97.8067°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Throughout the Year

The solar energy output at Grajales remains remarkably consistent across seasons, making it highly suitable for solar photovoltaic installations. Each kilowatt of installed solar capacity can be expected to generate 5.66 kWh per day during summer, 5.29 kWh per day in autumn, 5.31 kWh per day in winter, and an impressive 6.61 kWh per day during spring. Spring emerges as the peak season for solar generation at this location, producing nearly 25% more energy than the lowest-performing season. This makes spring the ideal time for maximum solar output, though the relatively small variation between seasons means the location provides reliable energy production year-round.

Optimal Panel Installation

For fixed panel installations at Grajales, Puebla, the ideal tilt angle to maximize total year-round solar production is 18 degrees facing south. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel tilt for each day, and weighting these angles according to daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Factors

Several local factors could potentially impact solar production at Grajales and require consideration during installation:

• Seasonal rainfall: The tropical wet season can bring heavy rains and increased cloud cover, which may temporarily reduce solar output during certain months
• Humidity and moisture: High tropical humidity can lead to moisture accumulation on panels and potential corrosion issues
• Dust and particulate matter: Dry seasons may result in dust accumulation on solar panels, reducing their efficiency
• Tropical storms: The region may experience severe weather events that could damage installations

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several preventative measures should be implemented:

• Regular cleaning schedule: Establish routine panel cleaning, especially during dry seasons when dust accumulation is highest
• Proper drainage systems: Install adequate drainage around panel mounting systems to prevent water pooling during heavy rains
• Corrosion-resistant materials: Use marine-grade or tropical-rated mounting hardware and electrical components designed to withstand high humidity
• Robust mounting systems: Install reinforced mounting structures capable of withstanding high winds and potential storm conditions
• Ventilation considerations: Ensure proper air circulation around panels to prevent overheating and moisture buildup

Despite these considerations, Grajales represents a highly favorable location for solar energy generation, with consistent output throughout the year and peak performance during spring months. With proper installation techniques and regular maintenance, solar installations at this location can achieve excellent long-term performance and energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

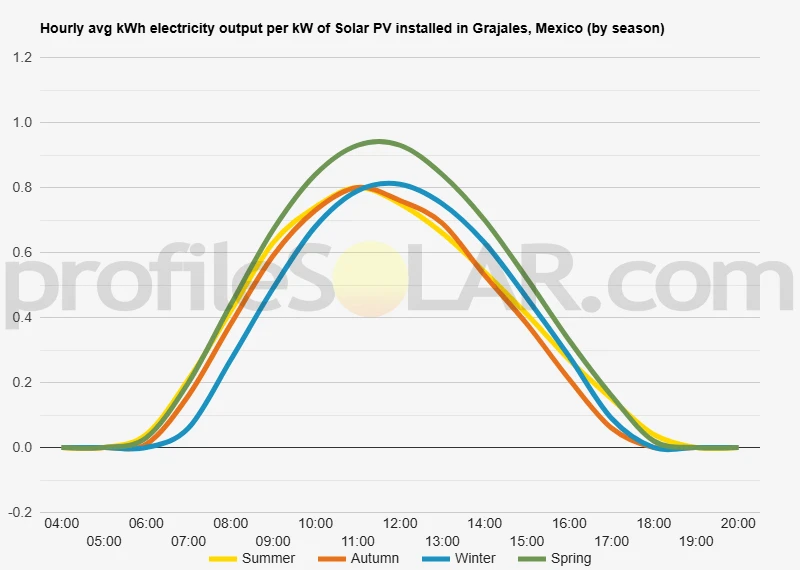

Solar output per kW of installed solar PV by season in Grajales

Seasonal solar PV output for Latitude: 19.2417, Longitude: -97.8067 (Grajales, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Grajales, Mexico

To maximize your solar PV system's energy output in Grajales, Mexico (Lat/Long 19.2417, -97.8067) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grajales, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grajales, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	35° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grajales, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grajales, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grajales, Mexico

Regional Topography

The area around Grajales, Mexico sits within the central Mexican highlands, characterized by a complex landscape of volcanic plains, rolling hills, and moderate elevation changes. This region forms part of the Trans-Mexican Volcanic Belt, where ancient volcanic activity has created a varied terrain of gentle slopes interspersed with more pronounced ridges and valleys. The elevation in this area typically ranges from approximately 2,200 to 2,600 meters above sea level, placing it within Mexico's temperate highland zone. The immediate vicinity features predominantly rolling terrain with gradual elevation changes rather than steep mountainous slopes. Agricultural lands dominate much of the landscape, with fields of corn, wheat, and other crops taking advantage of the relatively fertile volcanic soils. Small settlements and rural communities are scattered throughout the region, connected by a network of rural roads and pathways.

Drainage and Water Features

Several seasonal streams and small waterways traverse the area, flowing generally eastward toward larger river systems. These watercourses have carved shallow valleys and drainage channels into the landscape, creating a gently undulating topography. During the dry season, many of these streams reduce to minimal flow or dry completely, while the rainy season brings increased water flow that has shaped the current landforms over centuries. The presence of these drainage patterns has influenced local agriculture and settlement patterns, with communities often established on slightly elevated ground to avoid seasonal flooding while maintaining access to water resources during drier periods.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the broader, flatter areas of the volcanic plains that extend to the north and east of Grajales. These areas offer several advantages including relatively level ground that would minimize site preparation costs and engineering challenges associated with panel installation and maintenance access. The gently sloping agricultural fields that currently support crop production represent prime candidates for solar development, particularly those with southern or southwestern exposures that would maximize solar collection potential. These locations typically feature minimal tree cover and few existing structures, reducing potential shading issues and land acquisition complications. Areas with elevations between 2,300 and 2,500 meters would be particularly well-suited, as they combine the benefits of the region's climate with practical considerations for construction and grid connection. The existing road network provides reasonable access to many of these locations, though some infrastructure improvements might be necessary for large-scale development.

Development Considerations

The volcanic soils in the region generally provide good foundation conditions for solar installations, though site-specific geotechnical analysis would be necessary to confirm soil stability and drainage characteristics. The relatively stable geological conditions, with minimal seismic activity compared to other parts of Mexico, present fewer engineering challenges for large-scale construction projects. Wind patterns in this highland region are generally moderate, reducing concerns about extreme weather impacts on solar installations. The open nature of much of the agricultural land means that wind flow is relatively unobstructed, which can help with natural cooling of solar panels and improved efficiency. Proximity to existing electrical infrastructure varies throughout the region, with some areas having better access to transmission lines than others. The most practical locations for large-scale solar development would likely be those within reasonable distance of existing power lines or substations, reducing the infrastructure investment required for grid connection.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
