Heroica Caborca, Sonora, Mexico presents excellent conditions for year-round solar energy generation, ranking among the most favorable locations globally for photovoltaic installations. Located in the Northern Sub Tropics at coordinates 30.6987° North, -112.354° West, this area benefits from abundant sunshine throughout all seasons.

Seasonal Solar Production Performance

The solar energy output at Heroica Caborca varies significantly across seasons, with spring delivering the highest performance at 8.16 kWh per day per kW of installed solar capacity. Summer follows closely with 7.67 kWh per day per kW, making these the peak production months. Autumn production drops to 5.75 kWh per day per kW, while winter sees the lowest output at 4.51 kWh per day per kW. Even during the lowest production period in winter, the daily output remains substantial compared to many other global locations. The strong spring and summer performance more than compensates for the reduced winter generation, creating an excellent annual energy profile. For fixed panel installations at this location, the ideal angle to tilt panels for maximum year-round production is 27 degrees facing South. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, weighted by solar irradiance data to maximize total annual output.

Environmental and Weather Challenges

Several significant environmental factors can impact solar production efficiency at Heroica Caborca and require careful consideration during installation planning. Dust and Sand Accumulation: The desert climate creates substantial challenges with airborne particles that settle on solar panels, potentially reducing efficiency by 10-25% if left unaddressed. Regular cleaning schedules and anti-soiling coatings can help maintain optimal performance. Extreme Temperature Fluctuations: Desert conditions bring intense daytime heat and significant nighttime cooling, creating thermal stress on equipment. High-quality mounting systems with proper thermal expansion allowances and temperature-rated components are essential. Intense UV Radiation: The high altitude and clear skies result in exceptionally strong ultraviolet exposure that can degrade panel materials and wiring over time. UV-resistant materials and protective coatings help extend system lifespan.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove highly effective:

• Install automated cleaning systems or establish regular manual cleaning protocols to combat dust accumulation
• Use mounting systems designed for thermal expansion and high wind loads typical of desert environments
• Select panels and inverters rated for extreme temperature ranges commonly experienced in desert climates
• Implement proper cable management with UV-resistant conduits and weatherproof connections
• Ensure adequate ventilation behind panels to prevent overheating and maintain efficiency

Despite these environmental considerations, Heroica Caborca remains an outstanding location for solar energy generation. With proper installation techniques and maintenance protocols, solar systems can achieve exceptional long-term performance while withstanding the challenging desert conditions.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

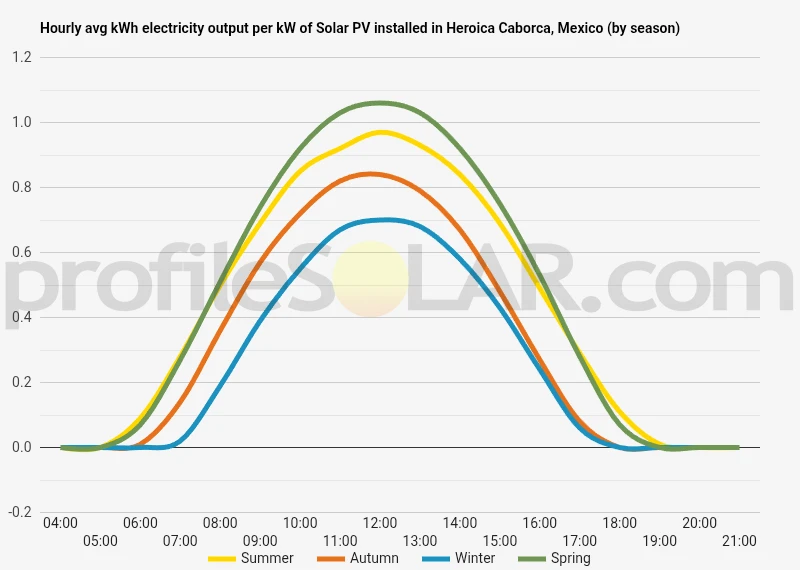

Solar output per kW of installed solar PV by season in Heroica Caborca

Seasonal solar PV output for Latitude: 30.6987, Longitude: -112.354 (Heroica Caborca, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Heroica Caborca, Mexico

To maximize your solar PV system's energy output in Heroica Caborca, Mexico (Lat/Long 30.6987, -112.354) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Heroica Caborca, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Heroica Caborca, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	36° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Heroica Caborca, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Heroica Caborca, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Heroica Caborca, Mexico

Topographical Features Around Heroica Caborca

Heroica Caborca sits in the northwestern region of Sonora, Mexico, within the expansive Sonoran Desert landscape. The surrounding terrain is characterized by relatively flat to gently rolling desert plains that extend for considerable distances in multiple directions. This arid region features scattered low hills and occasional rocky outcrops that punctuate an otherwise level topography, creating a landscape well-suited to large-scale development projects.

The elevation around Caborca remains fairly consistent, with the town itself positioned at approximately 400 meters above sea level. The surrounding desert floor maintains similar elevations with gradual undulations rather than dramatic elevation changes. To the north and east of the city, vast stretches of desert scrubland extend toward the United States border, offering expansive areas of relatively uniform terrain with minimal natural obstacles.

The region experiences typical Sonoran Desert geology, with sandy and rocky soils interspersed throughout the landscape. Seasonal arroyos and dry washes cross the terrain, though these natural drainage channels are generally shallow and widely spaced. The vegetation consists primarily of drought-resistant desert plants including various cacti species, mesquite, and other hardy shrubs that remain relatively low to the ground.

Optimal Areas for Large-Scale Solar Development

The expansive flat areas extending north and northeast of Heroica Caborca present the most favorable conditions for large-scale solar photovoltaic installations. These zones offer several kilometers of continuous, relatively level terrain with minimal natural obstructions and sparse vegetation that would require clearing. The consistent elevation and gentle gradients in these areas would minimize the need for extensive site preparation and grading work.

The desert plains to the east of the city also provide excellent potential for solar development, particularly areas that lie between the existing road infrastructure and natural drainage patterns. These locations benefit from accessibility while maintaining the flat topography essential for efficient solar panel installation and maintenance operations.

Areas immediately south and west of Caborca, while still suitable, present slightly more varied topography with increased frequency of low hills and rocky outcrops. However, significant flat zones exist within these regions that could accommodate substantial solar installations with appropriate site selection and planning.

The sparse population density throughout the surrounding desert regions means that large tracts of land remain available for development without significant conflicts with existing residential or agricultural uses. The minimal vegetation and lack of significant water features in most areas would reduce environmental constraints typically associated with large-scale renewable energy projects in more ecologically sensitive regions.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
