Huimanguillo, Tabasco, Mexico presents a good location for year-round solar energy generation, though with some seasonal variation typical of tropical regions. Located at coordinates 17.8378°N, -93.3834°W in the tropics, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods than temperature changes.

Solar Energy Output Performance

The solar energy production at Huimanguillo shows strong performance during certain times of the year. Summer delivers the highest output at 6.18 kWh per day per kW of installed solar capacity, making it the peak production season. Spring follows closely with 6.04 kWh per day per kW, indicating excellent solar conditions during these months. Autumn sees a moderate decrease to 4.95 kWh per day per kW, while winter represents the lowest production period at 4.38 kWh per day per kW of installed capacity. Despite this seasonal variation, even the lowest production period still provides substantial solar energy generation. For optimal year-round solar production at this location, fixed solar panels should be tilted at 16 degrees toward the south. This angle maximizes total annual energy output by accounting for the sun's path throughout the year and the area's specific latitude.

Environmental and Weather Challenges

Several significant factors in Huimanguillo could impact solar energy production and require careful consideration during installation:

• High humidity and moisture: The tropical climate creates consistently high humidity levels that can lead to corrosion of metal components and degradation of electrical connections
• Heavy rainfall during wet season: Intense tropical rains can reduce solar irradiance and create water infiltration issues if panels aren't properly sealed
• Salt air exposure: Being relatively close to coastal areas, salt-laden air can accelerate corrosion of solar panel frames and mounting systems
• Dust and debris accumulation: Dry season conditions can lead to dust buildup on panels, reducing their efficiency

Preventative Installation Measures

To maximize solar energy production despite these environmental challenges, several protective measures should be implemented during installation: Choosing marine-grade or tropical-rated equipment specifically designed for high-humidity environments helps prevent premature degradation. All electrical connections should use corrosion-resistant materials and waterproof sealing to protect against moisture infiltration. Installing panels with adequate spacing allows for proper air circulation, which helps reduce moisture buildup and keeps panels cooler for better efficiency. Mounting systems should use stainless steel or aluminum components with protective coatings to resist corrosion from humidity and salt air. Regular maintenance scheduling becomes crucial in this environment. This includes periodic cleaning to remove dust, debris, and any organic growth, plus routine inspection of seals and electrical connections to catch potential issues early. Proper drainage design around the installation area prevents water pooling during heavy rains, while ensuring panels are mounted with sufficient clearance allows rainwater to naturally clean the surfaces while preventing water from affecting the mounting structure.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

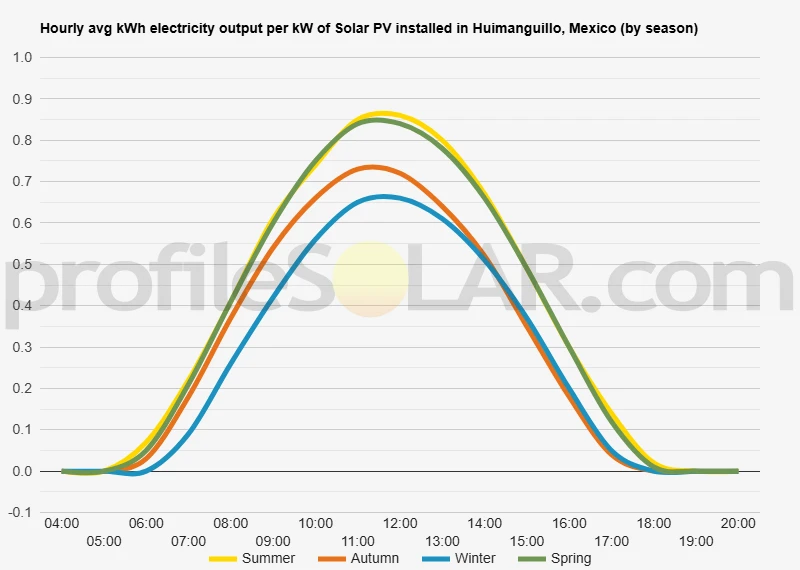

Solar output per kW of installed solar PV by season in Huimanguillo

Seasonal solar PV output for Latitude: 17.8378, Longitude: -93.3834 (Huimanguillo, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° South in Huimanguillo, Mexico

To maximize your solar PV system's energy output in Huimanguillo, Mexico (Lat/Long 17.8378, -93.3834) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Huimanguillo, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Huimanguillo, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	23° South in Autumn	33° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Huimanguillo, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Huimanguillo, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Huimanguillo, Mexico

Topographical Features of Huimanguillo

Huimanguillo sits in the southeastern portion of Tabasco state, positioned within Mexico's Gulf Coastal Plain region. This area is characterized by predominantly flat to gently rolling terrain, with elevations typically ranging from sea level to approximately 200 meters above sea level. The landscape represents part of the broader Tabasco Plain, which extends across much of the state and into neighboring Chiapas.

The region experiences a tropical climate with distinct wet and dry seasons. The topography is heavily influenced by numerous rivers and waterways that flow toward the Gulf of Mexico, creating a network of floodplains and wetlands throughout the area. The Grijalva River system dominates the hydrology of this region, with several tributaries meandering through the landscape and creating fertile alluvial deposits.

Much of the terrain around Huimanguillo consists of agricultural lands, with extensive cattle ranching operations and crop cultivation taking advantage of the flat, fertile soils. The natural vegetation includes tropical rainforest remnants, though much of the original forest cover has been converted to agricultural use over the decades. Small hills and ridges occasionally interrupt the otherwise level terrain, but these elevations are generally modest.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling topography around Huimanguillo presents several advantages for large-scale solar photovoltaic installations. Areas with minimal slopes and good drainage characteristics would be most suitable for solar development, as they require less land preparation and reduce installation costs while minimizing flood risks during the wet season.

The most promising locations for solar farms would be found on the slightly elevated areas and gentle ridges that provide natural drainage away from seasonal flooding. These elevated zones, while still relatively flat, offer better protection from the periodic inundation that affects lower-lying areas near rivers and wetlands. The agricultural lands on these higher elevations could potentially be converted to solar use, particularly areas that are currently used for less intensive farming operations.

Areas to the north and northwest of Huimanguillo appear particularly suitable due to their combination of flat terrain and slightly higher elevations. These zones benefit from good accessibility via existing road networks while maintaining sufficient distance from major waterways to avoid flood-prone areas. The existing agricultural infrastructure in these areas also means that electrical grid connections and transportation access are already established.

When selecting specific sites, developers would need to avoid the extensive wetlands and floodplains that characterize much of the immediate surroundings. The seasonal nature of flooding in this region makes it essential to choose locations with adequate elevation and drainage. Areas currently used for cattle ranching on firmer, well-drained soils would likely present the best opportunities for large-scale solar installations, as these lands typically have fewer environmental constraints and established property boundaries.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
