Jiutepec, Morelos, Mexico represents a highly favorable location for year-round solar photovoltaic energy generation. Positioned in the tropics at coordinates 18.8956°N, -99.1734°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output data for Jiutepec demonstrates excellent year-round potential for solar PV systems. Spring emerges as the most productive season, generating 7.68 kWh per day per kW of installed solar capacity. Summer follows closely with 6.58 kWh/day per kW, while autumn and winter show more modest but still substantial production at 6.04 and 5.96 kWh/day per kW respectively. This seasonal pattern aligns well with the tropical climate, where spring typically offers optimal conditions with high solar irradiance and minimal cloud cover before the wet season begins. The relatively consistent performance across all seasons makes Jiutepec an ideal location for solar installations that require reliable year-round energy production.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 18 degrees facing south. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Despite the favorable solar conditions, several local factors could potentially impact solar production in Jiutepec and require careful consideration during installation planning. The tropical wet season presents the most significant challenge for solar energy generation. During this period, increased cloud cover and frequent rainfall can reduce solar irradiance and temporarily decrease energy output. Heavy rains may also leave water spots and debris on panels, further reducing efficiency if not properly managed. Dust accumulation represents another concern, particularly during the dry season when reduced rainfall means less natural cleaning of panel surfaces. The tropical environment can also promote faster growth of vegetation, which may create shading issues if not properly managed around solar installations. High humidity levels characteristic of tropical climates can potentially affect electrical components and connections over time, while occasional severe weather events such as tropical storms or hurricanes could pose risks to solar infrastructure.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production and system longevity in Jiutepec's tropical environment.

• Install panels at the optimal 18-degree tilt to promote natural water runoff and self-cleaning during rainy periods
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Use high-quality, weather-resistant mounting systems and electrical components rated for tropical climates
• Ensure proper drainage around installations to prevent water pooling and potential foundation issues
• Design systems with appropriate spacing between panel rows to minimize shading and allow for maintenance access

Additionally, selecting panels and inverters with robust weather sealing and corrosion-resistant materials will help ensure long-term performance in the humid tropical environment. Regular vegetation management around the solar installation site will prevent shading issues as plants grow.

Overall Assessment

Jiutepec offers excellent conditions for solar PV installations, with consistent year-round production potential and particularly strong performance during spring months. While tropical weather patterns present some challenges, these can be effectively managed through proper system design, quality component selection, and regular maintenance practices. The location's reliable solar resource makes it highly suitable for both residential and commercial solar energy projects.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

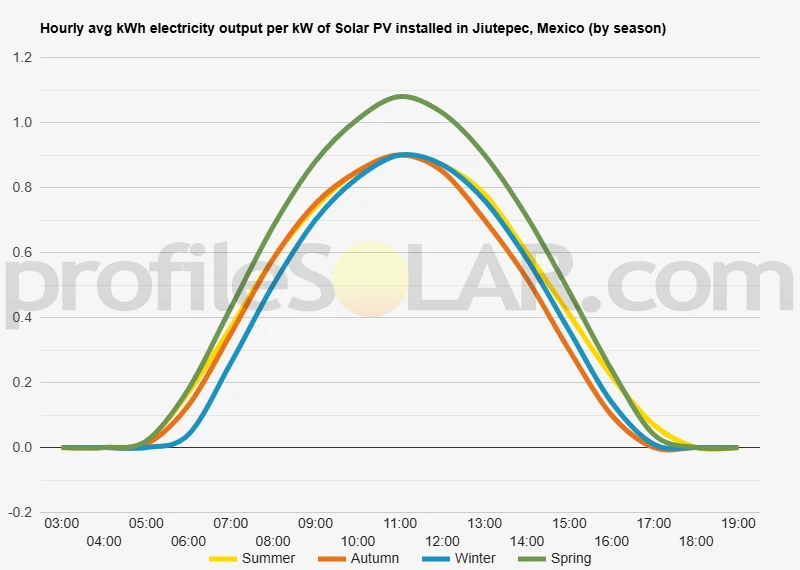

Solar output per kW of installed solar PV by season in Jiutepec

Seasonal solar PV output for Latitude: 18.8956, Longitude: -99.1734 (Jiutepec, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Jiutepec, Mexico

To maximize your solar PV system's energy output in Jiutepec, Mexico (Lat/Long 18.8956, -99.1734) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jiutepec, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jiutepec, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jiutepec, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jiutepec, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jiutepec, Mexico

Topography of Jiutepec and Surrounding Region

Jiutepec sits in the state of Morelos, nestled within a transitional zone between Mexico's central highlands and the warmer valleys that characterize much of the region. The city itself is positioned at a moderate elevation, creating a landscape that combines rolling hills with relatively flat valley floors. This area forms part of the broader Trans-Mexican Volcanic Belt, though the immediate vicinity around Jiutepec features gentler terrain compared to the dramatic volcanic peaks found elsewhere in this geological zone.

The topography immediately surrounding Jiutepec is characterized by undulating hills and small valleys, with the terrain generally sloping toward the south and southwest. To the north and northeast, the land rises more steeply as it approaches the higher elevations of the Mexican plateau. The Tepozteco Mountains form a notable feature to the northeast, creating a scenic backdrop of forested ridges and rocky outcrops that contrast with the more subdued landscape closer to the city.

Water features play an important role in shaping the local topography. Several seasonal streams and small rivers flow through the area, creating narrow valleys and contributing to the formation of alluvial deposits in the flatter areas. These waterways generally follow a north-to-south orientation, carving gentle channels through the landscape as they make their way toward larger drainage systems.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie to the south and southwest of Jiutepec, where the topography transitions into broader, flatter valleys. These areas offer the dual advantages of relatively level terrain and minimal shading from surrounding hills. The gentle slopes in these southern areas provide natural drainage while maintaining the consistent orientation needed for optimal solar panel positioning.

The valley floors extending westward toward the Cuernavaca metropolitan area present particularly attractive opportunities for solar development. These locations feature expansive flat to gently rolling terrain with minimal tree cover, reducing the need for extensive site preparation. The consistent elevation and open character of these valleys also minimize the potential for shadows cast by nearby topographical features during different times of the day and seasons.

Areas to the southeast of Jiutepec, where the landscape opens into broader agricultural plains, represent another zone well-suited to large-scale solar installations. The terrain in this direction is notably flatter and more uniform than in other directions, with fewer interruptions from hills or significant elevation changes. The existing agricultural use of much of this land indicates good soil stability and accessibility, both important factors for solar infrastructure development.

The higher elevations and steeper slopes found to the north and northeast of Jiutepec are generally less suitable for extensive solar projects. These areas, while offering potentially clearer atmospheric conditions due to elevation, present challenges in terms of terrain preparation, access, and the potential for shading from adjacent ridges and hills. The forested nature of many of these elevated areas would also require significant environmental consideration before any development could proceed.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
