La Barca, Jalisco, Mexico represents an excellent location for year-round solar photovoltaic energy generation. Situated in the tropics at coordinates 20.3588°N, -102.5561°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Output Performance

The solar energy production potential at La Barca shows strong performance across all seasons, with particularly impressive results during spring months. The expected electricity output per kilowatt of installed solar capacity varies seasonally:

• Spring: 8.17 kWh/day - the peak production season
• Summer: 6.41 kWh/day - solid mid-range performance
• Winter: 6.00 kWh/day - surprisingly good for the traditional low season
• Autumn: 5.81 kWh/day - the lowest but still respectable output

Spring emerges as the ideal time for solar generation at this location, producing approximately 40% more energy than the autumn months. Even during the lowest-producing season, the output remains quite substantial, making this location viable for consistent year-round solar energy production. For optimal performance, solar panels should be installed at a fixed tilt angle of 19 degrees facing south. This angle maximizes total year-round production by accounting for the sun's varying elevation throughout the seasons and the Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at La Barca. The tropical climate brings distinct wet and dry seasons, with the rainy season typically causing temporary reductions in solar output due to increased cloud cover and atmospheric moisture. During heavy rainfall periods, dust and debris can accumulate on panel surfaces, reducing their ability to capture sunlight effectively. The region's agricultural activities may contribute to airborne dust and particles, particularly during dry seasons and harvest times. This dust accumulation can create a film on solar panels that gradually reduces their efficiency over time.

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation and maintenance strategies prove beneficial. Regular cleaning schedules become particularly important during and after the rainy season to remove accumulated debris and maintain panel transparency. Installing panels with adequate spacing and proper drainage systems helps prevent water pooling and allows for better air circulation, which aids in natural cleaning during rainfall. Choosing panel mounting systems that allow for slight tilting also helps water run off more effectively, carrying away dust and debris. Implementing automated monitoring systems can help identify when panels need cleaning or maintenance, ensuring optimal performance throughout the year. Additionally, selecting high-quality panels with anti-reflective coatings and smooth surfaces makes them more resistant to dust accumulation and easier to clean when necessary. Despite these considerations, La Barca's consistently strong solar output across all seasons makes it a highly suitable location for solar energy investment, with proper installation and maintenance practices ensuring excellent long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

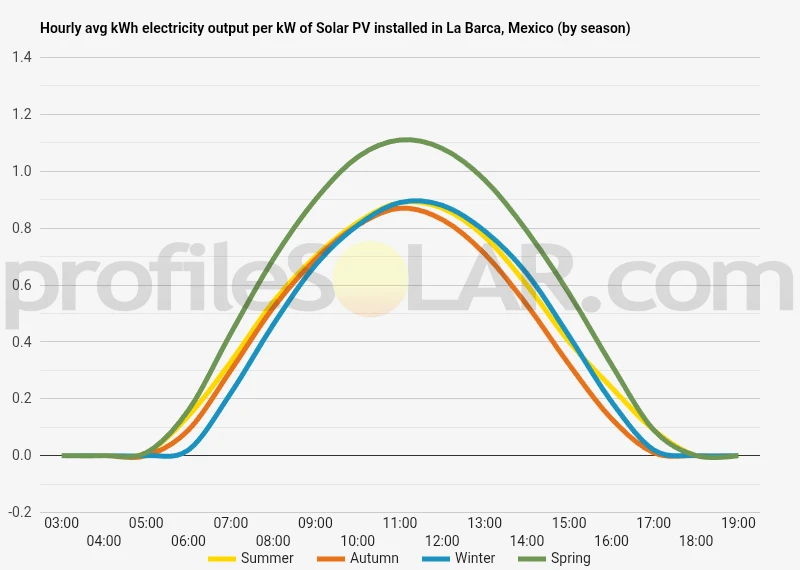

Solar output per kW of installed solar PV by season in La Barca

Seasonal solar PV output for Latitude: 20.3588, Longitude: -102.5561 (La Barca, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in La Barca, Mexico

To maximize your solar PV system's energy output in La Barca, Mexico (Lat/Long 20.3588, -102.5561) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for La Barca, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in La Barca, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	26° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in La Barca, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in La Barca, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around La Barca, Mexico

Topographical Features Around La Barca

La Barca sits in the heart of Jalisco state within Mexico's central plateau region, positioned at an elevation of approximately 1,520 meters above sea level. The surrounding landscape is characterized by gently rolling hills and broad valleys that form part of the larger Bajío region, known for its relatively flat agricultural terrain. This area represents a transition zone between the volcanic highlands to the south and the more arid northern Mexican plateau. The immediate vicinity of La Barca features predominantly flat to gently undulating terrain with slopes typically ranging from zero to five degrees. The landscape has been shaped by centuries of volcanic activity from the nearby Trans-Mexican Volcanic Belt, resulting in fertile soils and relatively stable geological conditions. Small seasonal streams and arroyos cut through the terrain, creating minor topographical variations, but these drainage channels are generally shallow and do not significantly interrupt the overall gentle character of the land. Moving outward from La Barca, the topography remains fairly consistent for several kilometers in most directions. To the northeast and southwest, the terrain continues as part of the broader valley system, while low hills rise gradually to the southeast and northwest. These elevated areas typically reach heights of 100 to 200 meters above the valley floor, creating a bowl-like geographical setting that provides natural wind protection.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie primarily to the north and northeast of La Barca, where vast stretches of relatively flat agricultural land offer minimal topographical constraints. These areas benefit from consistent gentle slopes that facilitate natural drainage while maintaining optimal panel positioning. The terrain in these zones requires minimal grading or earthwork, significantly reducing development costs and environmental impact. The southwestern quadrant also presents excellent opportunities for solar development, particularly in areas where the land transitions from agricultural use to more marginal grazing areas. The slightly elevated plains in this direction provide natural elevation that can enhance air circulation around solar arrays, potentially improving panel efficiency through better cooling. The substrate in these areas consists primarily of stable volcanic soils that provide excellent foundation conditions for mounting systems. Areas immediately southeast of La Barca, while slightly more undulating, contain numerous suitable sites on south-facing slopes that could maximize solar exposure throughout the day. These locations would require more careful site planning to work with the natural contours, but the moderate elevation changes could actually benefit overall energy production by providing optimal tilt angles naturally. The region's geological stability, stemming from its position on ancient volcanic deposits, makes it particularly well-suited for large-scale solar infrastructure. The absence of significant seismic activity and the presence of well-draining soils reduce long-term maintenance concerns and foundation requirements. Additionally, the relatively sparse population density in agricultural areas surrounding La Barca means that large contiguous parcels of land are potentially available for development without significant residential displacement concerns.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
