Lerdo, Durango, Mexico presents an excellent location for year-round solar PV energy generation, with consistently high solar output throughout all seasons. Located in the Northern Sub Tropics at coordinates 25.5971°N, -103.6628°W, this area benefits from abundant sunshine and favorable conditions for solar power production.

Seasonal Solar Performance

The solar energy output at Lerdo varies seasonally but remains robust year-round. Spring delivers the highest production at 8.00 kWh per day per kW of installed solar capacity, closely followed by summer at 7.58 kWh per day per kW. Autumn production drops to 5.97 kWh per day per kW, while winter shows the lowest output at 5.18 kWh per day per kW installed. Even during the least productive winter months, Lerdo still generates substantial solar energy, making it highly suitable for consistent year-round power generation. The spring and summer months represent the optimal times for maximum solar energy harvesting at this location.

Optimal Panel Configuration

For fixed panel installations at Lerdo, Durango, the ideal tilt angle to maximize total year-round solar production is 23 degrees facing South. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors in the Lerdo region could potentially impact solar panel performance and require consideration during installation:

• Dust and Sand Accumulation: The semi-arid climate and proximity to desert regions can lead to significant dust buildup on solar panels, reducing efficiency by blocking sunlight
• Extreme Heat: High summer temperatures can reduce panel efficiency and accelerate equipment degradation
• Hail Storms: Occasional severe weather events may pose risks to panel integrity
• Wind Loading: Strong winds common in open desert areas can stress mounting systems

Preventative Measures for Optimal Performance

To maximize solar energy production and system longevity in Lerdo, Durango, several installation strategies should be implemented:

• Regular Cleaning Systems: Install automated cleaning systems or schedule frequent manual cleaning to remove dust and debris
• Proper Ventilation: Ensure adequate airflow beneath panels to reduce operating temperatures and maintain efficiency
• Impact-Resistant Panels: Choose panels with tempered glass and robust construction to withstand hail and wind damage
• Reinforced Mounting: Use heavy-duty mounting systems designed for high wind loads typical of the region
• Quality Inverters: Select inverters rated for extreme temperature operation to handle the hot climate

Despite these challenges, Lerdo's exceptional solar resource makes it highly worthwhile to invest in proper installation techniques and maintenance protocols. The consistently high energy output throughout the year, combined with appropriate preventative measures, makes this location ideal for solar PV installations.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

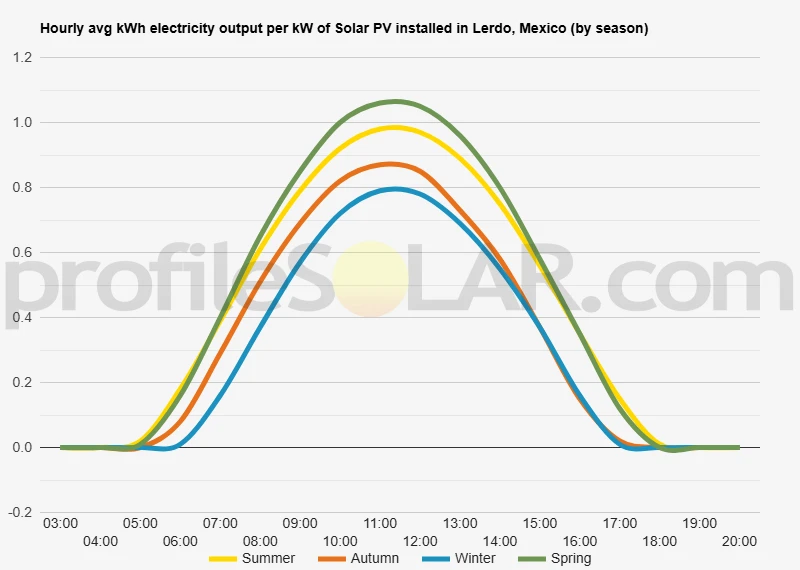

Solar output per kW of installed solar PV by season in Lerdo

Seasonal solar PV output for Latitude: 25.5971, Longitude: -103.6628 (Lerdo, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Lerdo, Mexico

To maximize your solar PV system's energy output in Lerdo, Mexico (Lat/Long 25.5971, -103.6628) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lerdo, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lerdo, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	31° South in Autumn	41° South in Winter	19° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lerdo, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lerdo, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lerdo, Mexico

Topography Around Lerdo, Mexico

Lerdo sits in the north-central Mexican state of Durango, positioned within the expansive Laguna Region that forms part of the greater Chihuahuan Desert ecosystem. The terrain surrounding this area is characterized by relatively flat to gently rolling plains that stretch across much of the landscape, punctuated by modest hills and occasional low mountain ranges in the distance. The elevation around Lerdo sits at approximately 1,100 meters above sea level, creating a high desert environment with wide open spaces and minimal topographical obstacles.

The immediate vicinity features predominantly flat agricultural land that has been cultivated for decades, with irrigation channels and farm roads creating a grid-like pattern across the countryside. These plains extend for many kilometers in most directions, broken only by scattered rural communities, agricultural infrastructure, and the occasional arroyo or dry creek bed that carries seasonal runoff during the brief rainy periods.

To the west and southwest, the Sierra Madre Occidental mountain range creates a dramatic backdrop on the horizon, though these peaks are far enough away that they do not significantly impact the local topography or create substantial shading effects. The eastern approaches toward Coahuila state maintain the flat, open character typical of this portion of the Mexican plateau.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains surrounding Lerdo present exceptional opportunities for large-scale solar photovoltaic installations. The most promising areas lie to the north and northeast of the city, where thousands of hectares of relatively unused semi-arid land stretch toward the state border with Coahuila. These areas offer minimal slope variations, excellent accessibility via existing highway networks, and sufficient distance from residential areas to minimize land use conflicts.

The western plains also show considerable potential, particularly in areas where agricultural activity is less intensive or where marginal farmland could be repurposed for solar development. The flat topography in these zones would require minimal grading or site preparation, significantly reducing installation costs and environmental impact. The sparse vegetation typical of this semi-arid region means that land clearing requirements would be minimal.

Areas immediately south and southeast of Lerdo, while topographically suitable, tend to have more established agricultural operations and irrigation infrastructure that might complicate large-scale solar development. However, the consistent flatness of the terrain means that even these areas could accommodate solar installations if land use arrangements could be negotiated with local agricultural interests.

The region benefits from excellent transportation infrastructure, with major highways providing access to potential solar sites and facilitating the movement of equipment and materials during construction phases. The proximity to existing electrical transmission infrastructure, including connections to Mexico's national grid, further enhances the attractiveness of this area for utility-scale solar development.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.
