Mapastepec, Chiapas, Mexico represents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates 15.4426°N, -92.8871°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the temperature variations found in temperate climates.

Solar Energy Production Performance

The solar energy output data for Mapastepec demonstrates remarkably consistent performance across all seasons. Spring emerges as the peak production period, generating 6.32 kWh per day per kW of installed solar capacity. Summer follows closely with 5.96 kWh/day per kW, while winter maintains strong output at 5.74 kWh/day per kW. Even autumn, the lowest-producing season, still delivers a respectable 5.58 kWh/day per kW. This seasonal variation of less than 15% between the highest and lowest production periods indicates exceptional stability for solar energy generation. The relatively small fluctuation makes Mapastepec highly suitable for both residential and commercial solar installations, as energy output remains predictable throughout the year.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 15 degrees facing south. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Despite the favorable solar conditions, several local factors could potentially impact solar energy production in Mapastepec:

• Tropical humidity and moisture: High humidity levels can cause condensation on panels and promote the growth of algae or mold on panel surfaces
• Seasonal rainfall: The wet season brings heavy precipitation that can temporarily reduce solar output and create ongoing maintenance challenges
• Dust and debris accumulation: Tropical conditions can lead to faster accumulation of organic matter, dust, and other particles on panel surfaces
• Salt air exposure: Depending on proximity to the coast, salt-laden air could accelerate corrosion of metal components

Preventative Measures for Enhanced Performance

Several strategies can help mitigate these environmental challenges and ensure optimal solar energy production:

• Regular cleaning schedules: Implement frequent panel cleaning, particularly during and after the wet season, to remove accumulated debris and prevent biological growth
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand humid, potentially salt-laden conditions
• Proper drainage design: Ensure mounting systems allow adequate water drainage to prevent standing water and reduce humidity around electrical components
• Ventilation considerations: Design installations with adequate airflow beneath panels to reduce moisture buildup and improve cooling efficiency
• Quality inverter protection: Install inverters in well-ventilated, weather-protected enclosures to prevent moisture damage to electronic components

With proper installation techniques and regular maintenance addressing these tropical conditions, Mapastepec offers outstanding potential for reliable, year-round solar energy generation. The consistent high output levels across all seasons make it an ideal location for solar investment, provided that environmental factors are properly managed through appropriate design and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

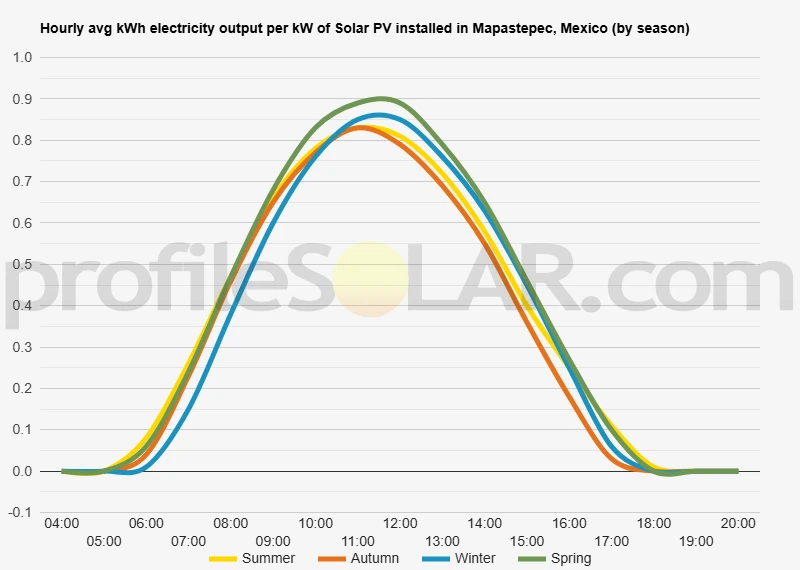

Solar output per kW of installed solar PV by season in Mapastepec

Seasonal solar PV output for Latitude: 15.4426, Longitude: -92.8871 (Mapastepec, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° South in Mapastepec, Mexico

To maximize your solar PV system's energy output in Mapastepec, Mexico (Lat/Long 15.4426, -92.8871) throughout the year, you should tilt your panels at an angle of 15° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mapastepec, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mapastepec, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	21° South in Autumn	31° South in Winter	9° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mapastepec, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mapastepec, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mapastepec, Mexico

Topographical Features Around Mapastepec

Mapastepec sits in the coastal plain region of Chiapas, Mexico, positioned between the Pacific Ocean to the southwest and the rising foothills of the Sierra Madre de Chiapas mountain range to the northeast. The immediate area around the town features relatively flat to gently rolling terrain, characteristic of the Soconusco coastal plain that extends along this portion of the Mexican Pacific coast.

The elevation around Mapastepec ranges from near sea level along the coastal areas to approximately 200-300 meters above sea level as the land gradually rises toward the interior. This gentle gradient creates an expansive area of relatively level ground that extends inland for several kilometers before encountering the more dramatic topographical changes associated with the mountain foothills.

The landscape is intersected by several rivers and streams that flow from the highland areas toward the Pacific Ocean, creating a network of waterways that drain the region during the wet season. These watercourses have carved shallow valleys and created some undulating terrain, but the overall character remains one of broad, open plains with minimal steep slopes or significant elevation changes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Mapastepec would be found on the extensive flat to gently sloping areas that characterize the coastal plain extending northeast and southeast of the town. These areas offer the ideal combination of minimal topographical constraints and sufficient space for major solar facilities.

The broad agricultural plains that stretch inland from the coastal zone present particularly attractive opportunities for solar development. These areas typically feature gentle slopes of less than 5 degrees, which are optimal for solar panel installation and maintenance access while still allowing for proper drainage. The relatively uniform elevation across these plains minimizes the need for extensive grading or earthwork during construction.

Areas located roughly 5-15 kilometers inland from the immediate coastal zone would likely provide the best balance of favorable topography and reduced exposure to coastal weather patterns. These locations maintain the flat terrain advantages while potentially offering slightly better drainage characteristics and reduced salt air exposure that could affect equipment longevity.

The regions to the northeast and southeast of Mapastepec, where the coastal plain extends furthest before encountering significant elevation changes, would be particularly well-suited for utility-scale solar installations. These areas provide the large contiguous parcels of relatively level land necessary for major solar projects while remaining accessible via existing road networks that connect to regional transmission infrastructure.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
