Orizaba, Veracruz, Mexico, situated at 18.8558°N, -97.0993°W, presents a favorable location for solar energy generation throughout the year. This tropical city benefits from consistent sunlight, with seasons primarily distinguished by wet and dry periods rather than significant temperature variations.

Seasonal Solar Performance

Solar panel efficiency in Orizaba remains relatively stable across seasons, with some notable fluctuations. Spring stands out as the most productive period, yielding an impressive 7.35 kWh per day for each kilowatt of installed solar capacity. Summer follows with 6.29 kWh/day, while autumn and winter maintain respectable outputs of 5.87 kWh/day and 5.82 kWh/day, respectively.

Optimal Panel Orientation

For fixed solar panel installations in Orizaba, Veracruz, the ideal tilt angle to maximize year-round energy production is 18 degrees facing south. This orientation ensures optimal exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and Orizaba's specific latitude.

Environmental Considerations

While Orizaba's climate is generally conducive to solar energy production, there are a few environmental factors to consider: 1. Rainfall: Orizaba experiences a rainy season, typically from June to October. Heavy cloud cover during this period may temporarily reduce solar panel efficiency. 2. Dust and pollution: The city's industrial activity and nearby volcanic ash from Pico de Orizaba can lead to particulate matter accumulation on solar panels. To mitigate these issues, consider implementing the following measures:

• Install panels at a steeper angle to promote natural cleaning during rainfall
• Use self-cleaning panel technologies or schedule regular cleaning maintenance
• Employ high-quality inverters capable of optimizing performance in varying light conditions

Overall, Orizaba's location offers excellent potential for solar energy generation, with only minor challenges that can be effectively addressed through proper installation and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

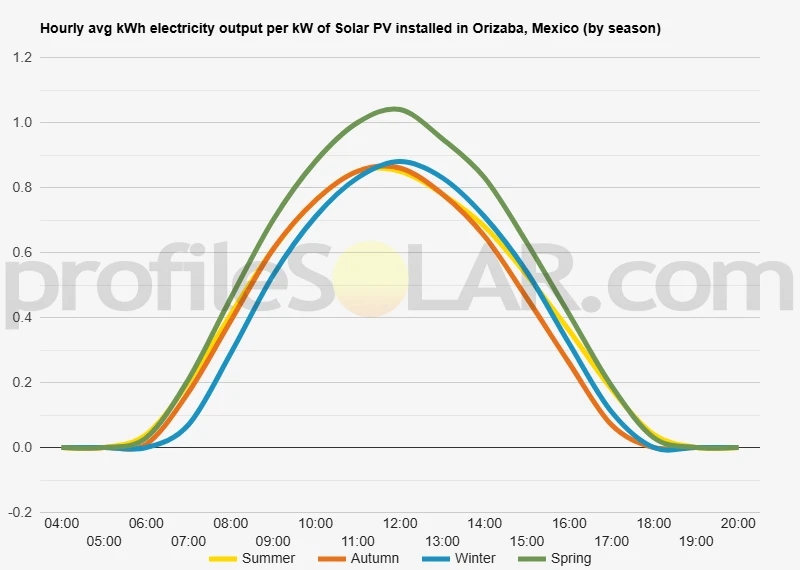

Solar output per kW of installed solar PV by season in Orizaba

Seasonal solar PV output for Latitude: 18.8558, Longitude: -97.0993 (Orizaba, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Orizaba, Mexico

To maximize your solar PV system's energy output in Orizaba, Mexico (Lat/Long 18.8558, -97.0993) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Orizaba, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Orizaba, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Orizaba, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Orizaba, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Orizaba, Mexico

The topography around Orizaba, Mexico, is characterized by dramatic and varied terrain. The city itself is nestled in a valley surrounded by mountains, with the imposing Pico de Orizaba, also known as Citlaltépetl, dominating the landscape to the north. This dormant stratovolcano is the highest peak in Mexico and the third-highest in North America, reaching an elevation of 5,636 meters (18,491 feet) above sea level. The area surrounding Orizaba features a mix of steep mountain slopes, rolling hills, and flat valleys. To the east and southeast of the city, the terrain gradually descends towards the coastal plains of Veracruz. This transition creates a diverse landscape with varying elevations and microclimates. The western and southwestern regions are marked by rugged highlands and deep canyons, forming part of the Sierra Madre Oriental mountain range.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Orizaba, several factors come into play, including topography, solar radiation, and land availability. The most suitable areas for such projects would likely be found in the flatter regions to the east and southeast of Orizaba. The coastal plains of Veracruz, which begin approximately 50-60 kilometers east of Orizaba, offer expansive flat terrain that could be ideal for solar farms. These areas receive ample sunlight throughout the year and have fewer geographical obstacles that might cast shadows or impede construction. Another potential location for solar PV installations could be the broader valleys and plateaus found scattered throughout the region. While not as extensive as the coastal plains, these areas provide relatively flat land with good sun exposure. Some of these sites may be found in the transitional zones between the mountains and the lowlands, particularly to the southeast of Orizaba. It's important to note that while the mountainous areas surrounding Orizaba receive significant solar radiation, their steep slopes and uneven terrain make them less suitable for large-scale solar projects. However, these elevated areas might be appropriate for smaller, distributed solar installations that could take advantage of the abundant sunlight at higher altitudes. Any large-scale solar PV project in the region would need to carefully consider environmental impacts, land use regulations, and the potential effects on local communities and agriculture. The rich biodiversity and cultural significance of the area around Orizaba necessitate a balanced approach to renewable energy development that respects both natural and human environments.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
