Solar Energy Potential in Piedras Negras, Coahuila, Mexico

Piedras Negras, Coahuila, Mexico, located in the Northern Sub Tropics, presents a favorable location for solar PV energy generation throughout the year. The seasonal electricity output shows significant variation, with the highest production occurring during summer months. The seasonal solar energy production per kilowatt of installed capacity shows a clear pattern. Summer yields the highest output at 7.31 kWh per day, followed by spring with 6.16 kWh per day. Autumn produces a moderate 5.32 kWh per day, while winter sees the lowest generation at 3.88 kWh per day. This seasonal variation indicates that Piedras Negras experiences a substantial difference between summer and winter solar potential. For maximizing year-round solar energy production with fixed panel installations in this location, the ideal tilt angle is 25 degrees facing South. This specific angle has been calculated to optimize annual energy harvest by accounting for the location's latitude and seasonal sun paths.

Optimal Solar Generation Periods

The most productive months for solar energy in Piedras Negras align with the summer season, particularly June through August, when daily generation exceeds 7 kWh per installed kilowatt. Spring (March to May) represents the second-best period for solar production. Even during the least productive winter months, the location still generates nearly 4 kWh per day per kilowatt installed, which remains viable for solar energy applications.

Environmental Factors and Mitigation Strategies

Several environmental factors could potentially impact solar production in Piedras Negras:

• Dust and particulate matter from the semi-arid environment can accumulate on panels, reducing efficiency by up to 15% if not addressed. Regular cleaning schedules and possibly automated cleaning systems are recommended.
• High summer temperatures, which can exceed 40°C (104°F), may reduce panel efficiency. Installing panels with adequate airflow underneath and using temperature-resistant PV technology can mitigate this effect.
• Occasional severe weather events, including thunderstorms and high winds, necessitate robust mounting systems and possibly hail-resistant panel options.

Despite these challenges, the location's high solar irradiance makes it an excellent candidate for solar PV installations. With proper system design accounting for seasonal variations and environmental factors, Piedras Negras offers substantial potential for solar energy generation throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

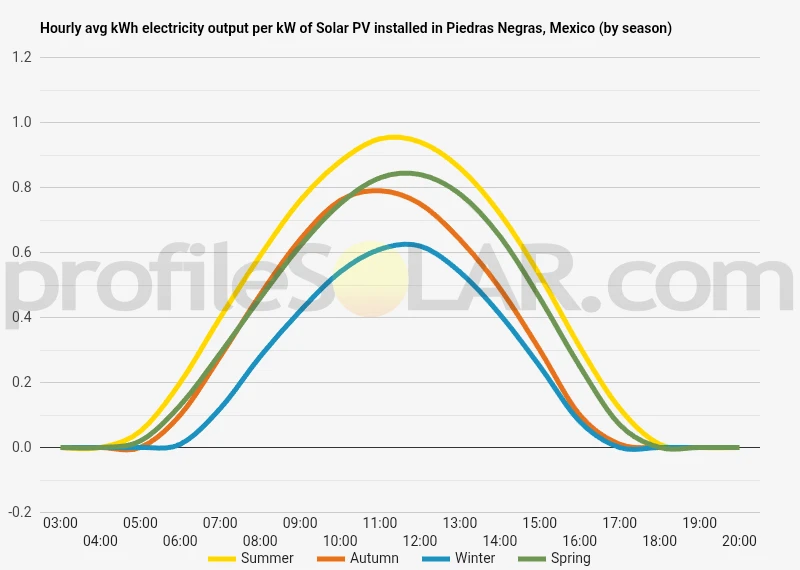

Solar output per kW of installed solar PV by season in Piedras Negras

Seasonal solar PV output for Latitude: 28.6684, Longitude: -100.5433 (Piedras Negras, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Piedras Negras, Mexico

To maximize your solar PV system's energy output in Piedras Negras, Mexico (Lat/Long 28.6684, -100.5433) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Piedras Negras, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Piedras Negras, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	33° South in Autumn	44° South in Winter	22° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Piedras Negras, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Piedras Negras, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Piedras Negras, Mexico

The landscape surrounding Piedras Negras, Mexico presents a diverse topographical character typical of the northern Coahuila region. Situated along the Rio Grande (known as Río Bravo del Norte in Mexico), which forms the natural boundary between Mexico and the United States, Piedras Negras occupies a strategic position in a semi-arid environment. The terrain around Piedras Negras is predominantly flat to gently rolling, with elevations gradually increasing as one moves away from the river. The immediate vicinity of the city features alluvial plains formed by the Rio Grande, creating fertile areas that contrast with the otherwise dry landscape. These riverside lowlands have historically supported agriculture despite the region's limited rainfall. Moving further from the river, the landscape transitions to more rugged terrain characterized by low hills and plateaus. These features are part of the broader Northern Mexican Plateau, which extends throughout much of northern Mexico. The soil composition tends toward the calcareous, with significant limestone deposits that influence both the vegetation and water drainage patterns of the region.

Vegetation and Natural Features

The natural vegetation around Piedras Negras reflects its semi-arid climate, featuring drought-resistant plants such as mesquite, various cacti species, and thorny shrubs. This sparse vegetation cover leaves much of the ground exposed, particularly in areas away from water sources. The Rio Grande valley creates a ribbon of relatively lush vegetation that stands in stark contrast to the surrounding drier landscape. This riparian corridor provides important ecological services and has historically been central to human settlement patterns in the region.

Potential for Solar PV Development

Several characteristics make specific areas around Piedras Negras particularly suitable for large-scale solar photovoltaic development: The extensive flat plateaus to the south and southwest of Piedras Negras present ideal conditions for solar installations. These elevated areas receive consistent solar exposure throughout the day with minimal shadowing effects from geographical features. The stable, relatively firm ground conditions also reduce construction challenges and costs associated with extensive grading or specialized foundations. The semi-arid plains extending westward from the city offer substantial undeveloped land with minimal competing land uses. These areas have sparse vegetation that requires less clearing prior to development and poses fewer environmental concerns regarding habitat disruption. The natural drainage patterns in these plains also reduce flood risks that might otherwise threaten infrastructure. Areas of gentle slopes facing south to southwest, particularly those found in the elevated terrain approximately 15-20 kilometers from the city center, maximize solar gain throughout the year. These locations benefit from slightly elevated positions that reduce dust accumulation on panels while still maintaining reasonable accessibility for construction and maintenance. The region's generally clear atmospheric conditions, with limited fog or atmospheric pollution compared to more industrialized areas, further enhances the suitability for solar energy capture. The relatively stable geological conditions also present fewer risks from natural hazards that might otherwise threaten large infrastructure investments. It's worth noting that while areas immediately adjacent to the Rio Grande offer flat terrain, they may present complications including periodic flooding risks, higher humidity levels that can affect equipment, and potential border-related regulatory complexities. For these reasons, the optimal locations for large-scale solar development likely lie in the elevated plains and plateaus several kilometers removed from the river valley.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
