Pueblo Nuevo, Guanajuato, Mexico presents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year with seasons typically defined by wet and dry periods rather than temperature variations.

Solar Energy Production Performance

The solar energy output at this location shows strong performance across all seasons, with particularly impressive results during spring months. Spring delivers the highest energy production at 8.08 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Summer follows as the second-best season with 6.58 kWh per day per kW, while winter and autumn show more moderate but still respectable outputs of 5.98 kWh and 5.89 kWh per day per kW respectively. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 19 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's path throughout the year and weighting the angles based on daily solar potential.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at Pueblo Nuevo and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the rainy season potentially reducing solar output due to increased cloud cover and atmospheric moisture. During heavy rainfall periods, water accumulation on panels can temporarily decrease efficiency until the panels dry. Dust and particulate matter common in many Mexican regions can accumulate on solar panel surfaces, gradually reducing their ability to capture sunlight effectively. This is particularly problematic during dry seasons when dust storms or general airborne particles settle on installations. High humidity levels typical of tropical locations may contribute to faster degradation of electrical components and connections if not properly protected. The combination of heat and moisture can be challenging for solar equipment longevity.

Preventative Measures and Installation Recommendations

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate drainage systems and slight tilting beyond the optimal 19 degrees if necessary to prevent water pooling during heavy rains
• Implement regular cleaning schedules, particularly during and after dry seasons when dust accumulation is highest
• Use high-quality weather sealing and corrosion-resistant materials for all electrical connections and mounting hardware
• Consider automated cleaning systems for larger installations to maintain optimal panel cleanliness year-round
• Ensure proper ventilation around panels to reduce heat buildup and moisture retention

Despite these considerations, Pueblo Nuevo's consistent solar resource and strong seasonal performance make it a highly suitable location for solar energy generation, with proper installation and maintenance practices ensuring optimal long-term energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

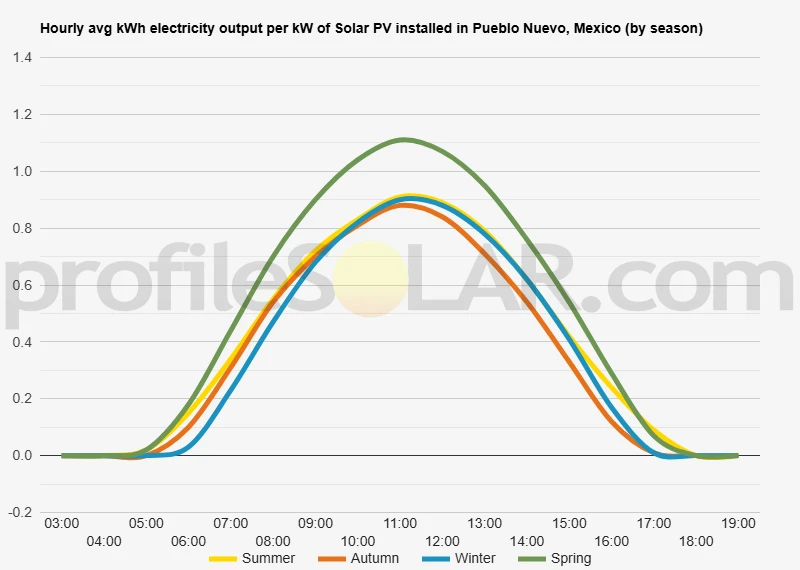

Solar output per kW of installed solar PV by season in Pueblo Nuevo

Seasonal solar PV output for Latitude: 20.5243, Longitude: -101.3682 (Pueblo Nuevo, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Pueblo Nuevo, Mexico

To maximize your solar PV system's energy output in Pueblo Nuevo, Mexico (Lat/Long 20.5243, -101.3682) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pueblo Nuevo, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pueblo Nuevo, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	26° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pueblo Nuevo, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pueblo Nuevo, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pueblo Nuevo, Mexico

Topographical Characteristics of Pueblo Nuevo

The area around Pueblo Nuevo in Guanajuato, Mexico sits within the central Mexican plateau, characterized by relatively gentle rolling hills and broad valleys. This region forms part of the Mesa Central, where elevations typically range from 1,800 to 2,200 meters above sea level. The landscape features a mix of agricultural plains interspersed with low ridges and occasional volcanic formations that create a moderately undulating terrain. The immediate vicinity shows predominantly flat to gently sloping agricultural land, with gradients rarely exceeding 5-10 degrees across most areas. Small seasonal streams and arroyos cut through the landscape, creating minor drainage channels that flow during the rainy season but remain dry for much of the year. These waterways have carved shallow valleys that add subtle variation to an otherwise relatively uniform topographical profile. To the north and east of Pueblo Nuevo, the terrain becomes slightly more elevated with scattered hills rising 100-200 meters above the surrounding plains. These formations are primarily composed of volcanic rock and sedimentary deposits, creating stable geological foundations. The western approaches feature broader valleys with excellent drainage characteristics and minimal slope variation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the expansive agricultural plains extending southwest and northwest of Pueblo Nuevo. These areas offer several kilometers of continuous flat terrain with minimal obstacles, providing ideal conditions for large solar arrays. The gentle southward-facing slopes in these regions would be particularly advantageous for maximizing solar panel efficiency throughout the day. The broad valley systems to the west present exceptional opportunities for utility-scale solar development. These areas combine optimal topographical conditions with good accessibility via existing rural roads and proximity to agricultural infrastructure. The stable, well-drained soils in these valleys provide excellent foundations for solar mounting systems, while the minimal vegetation and existing land use patterns would facilitate development. Areas immediately north of the town center also show strong potential, particularly where the terrain transitions from agricultural fields to slightly elevated plateaus. These locations offer the dual advantages of flat installation surfaces and natural elevation that can improve air circulation around solar panels, potentially enhancing their operational efficiency. The eastern approaches, while featuring more varied topography, contain several suitable parcels of relatively flat land between the low hills. These areas might serve well for smaller utility-scale installations or could be developed as multiple distributed solar farms connected to a common grid infrastructure. When considering large-scale solar development in this region, the extensive plains and valley floors clearly emerge as the most practical choices, offering the combination of favorable terrain, accessibility, and sufficient continuous area needed for major photovoltaic installations.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
