Nogales, Mexico presents a highly favorable location for year-round solar photovoltaic energy generation. The solar output data reveals consistently strong performance across all seasons, with daily electricity generation ranging from 5.81 kWh per installed kilowatt in winter to an impressive 7.35 kWh per kilowatt during spring months.

Seasonal Solar Performance

Spring emerges as the optimal season for solar energy production at this location, delivering 7.35 kWh per day per installed kilowatt. Summer follows closely with 6.29 kWh daily output, while autumn and winter maintain respectable production levels at 5.86 kWh and 5.81 kWh respectively. This relatively small seasonal variation demonstrates the location's reliability for consistent solar energy generation throughout the year. For maximum energy harvest from a fixed panel installation at Nogales, the ideal tilt angle is 18 degrees facing south. This angle optimizes total year-round production by accounting for the sun's varying elevation angles throughout the seasons and the Earth's elliptical orbit pattern.

Environmental Factors and Mitigation Strategies

Several environmental factors could potentially impact solar production efficiency at this tropical location. The region's characteristic wet and dry seasonal pattern introduces specific challenges that require careful consideration during installation planning. Dust and Particulate Accumulation: Mexico's arid regions often experience significant dust storms and airborne particles that can coat solar panels, reducing their efficiency. Regular cleaning schedules and anti-soiling coatings can help maintain optimal performance. Installing panels with self-cleaning glass surfaces or automated washing systems proves particularly beneficial in dusty environments. Monsoon Season Impacts: The tropical wet season can bring heavy rainfall, high humidity, and potential flooding concerns. Proper drainage systems around solar installations prevent water accumulation that could damage electrical components. Elevated mounting systems and waterproof electrical enclosures provide essential protection during intense rainfall periods. Temperature Considerations: High ambient temperatures common in tropical locations can reduce solar panel efficiency. Adequate ventilation spacing behind panels allows air circulation to prevent overheating. Selecting solar panels with better temperature coefficients helps maintain performance during peak heat periods. Vegetation Growth: The wet season promotes rapid plant growth that could create shading issues. Regular vegetation management around solar installations ensures panels remain unobstructed. Strategic site selection away from fast-growing trees prevents future shading problems as vegetation matures.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

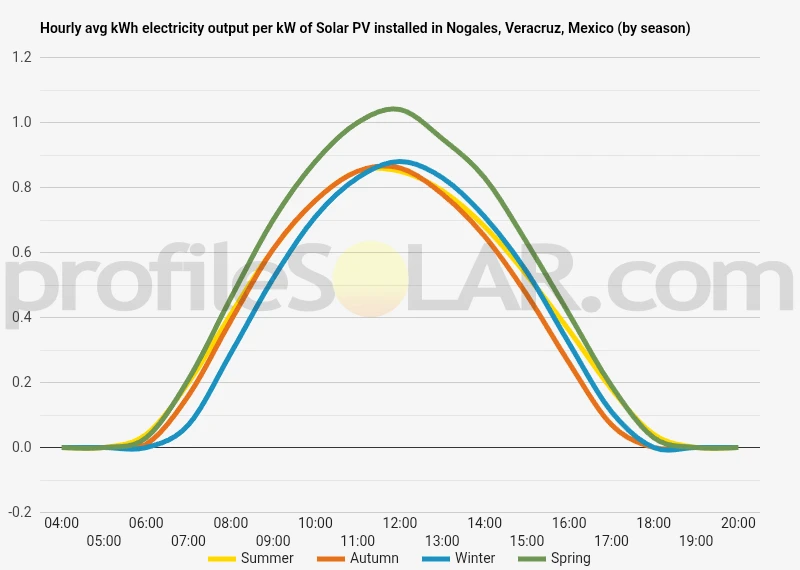

Solar output per kW of installed solar PV by season in Nogales, Veracruz

Seasonal solar PV output for Latitude: 18.812, Longitude: -97.1654 (Nogales, Veracruz, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Nogales, Veracruz, Mexico

To maximize your solar PV system's energy output in Nogales, Veracruz, Mexico (Lat/Long 18.812, -97.1654) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nogales, Veracruz, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nogales, Veracruz, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nogales, Veracruz, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nogales, Veracruz, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nogales, Veracruz, Mexico

Topographical Features Around Nogales, Mexico

The region surrounding Nogales, Mexico is characterized by a diverse and dramatic topographical landscape that reflects its position within the Trans-Mexican Volcanic Belt. This area sits at a moderate elevation, nestled among rolling hills and volcanic formations that create a varied terrain of peaks, valleys, and plateaus. The landscape is dominated by ancient volcanic activity, resulting in a mixture of steep slopes, gentle inclines, and relatively flat areas that have been shaped by centuries of geological processes.

The immediate vicinity features numerous small to medium-sized hills and ridges that run in various directions, creating a somewhat fragmented terrain pattern. These elevations are interspersed with valleys and depressions that provide natural drainage channels during the rainy season. The volcanic soil composition in many areas has created fertile ground, though the terrain can be quite uneven in places due to historical lava flows and volcanic debris deposits.

To the north and east of Nogales, the landscape generally becomes more mountainous, with steeper gradients and more pronounced elevation changes. Conversely, to the south and west, the terrain tends to level out somewhat, offering broader expanses of gentler slopes and more consistent elevation patterns. The region experiences seasonal variations in vegetation coverage, with the landscape appearing more lush during wet periods and more arid during dry seasons.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie primarily to the southwest and west of Nogales, where the topography transitions into broader, more gently sloping terrain. These areas offer several advantages for solar development, including more consistent elevation patterns that reduce the complexity and cost of installation while maximizing the potential for uniform panel orientation.

The plateau regions extending westward from the city center present particularly attractive opportunities, as they combine relatively flat surfaces with good drainage characteristics. These elevated flat areas minimize the risk of flooding during heavy rains while providing stable foundations for large solar arrays. The volcanic soil composition in these regions, while excellent for agriculture, also provides solid ground conditions suitable for supporting extensive solar infrastructure.

Areas with gentle south-facing slopes in the southwestern quadrant around Nogales offer additional advantages for solar installations. These natural inclines can enhance solar collection efficiency when properly utilized, while still maintaining manageable grades for construction and maintenance access. The relatively open nature of much of this terrain also reduces concerns about shading from natural features or existing structures.

The broader valley systems to the west of the city provide extensive areas of relatively level ground that could accommodate very large solar installations. These locations benefit from good accessibility via existing road networks while being sufficiently removed from dense urban development. The combination of stable geology, appropriate drainage, and minimal topographical obstacles makes these western areas particularly well-suited for utility-scale solar projects that require substantial contiguous land areas.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
