San Juan Bautista Tuxtla, Oaxaca, Mexico represents a strong location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 18.0741°N, -96.088°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the dramatic temperature variations seen in temperate climates.

Solar Energy Production Potential

The solar energy output data shows that San Juan Bautista Tuxtla delivers solid performance across all seasons. Spring emerges as the peak production period, generating 6.17 kWh per day per kW of installed solar capacity. Summer follows closely with 5.96 kWh/day per kW, making these the optimal months for solar energy generation at this location. Autumn production drops to 5.09 kWh/day per kW, while winter shows the lowest output at 4.41 kWh/day per kW. Despite this seasonal variation, even the winter months provide respectable energy generation, making this location viable for consistent year-round solar power production. For maximum energy output from a fixed panel installation at this location, solar panels should be tilted at 16 degrees toward the south. This angle has been calculated to optimize total year-round production by accounting for the sun's path throughout the seasons and the area's specific latitude.

Environmental and Weather Challenges

Several significant environmental factors in San Juan Bautista Tuxtla can impact solar energy production and require careful consideration during installation planning. The tropical climate brings intense seasonal rainfall during wet periods, which can reduce solar irradiance and create challenges for system maintenance. Heavy rains can also lead to increased humidity and potential moisture infiltration issues if systems aren't properly sealed. High humidity levels throughout much of the year can accelerate corrosion of metal components and electrical connections. The combination of heat and moisture creates an environment where standard materials may degrade more quickly than in drier climates. Tropical storms and hurricanes pose a significant risk in this coastal region of Mexico. These weather events can bring destructive winds, flying debris, and torrential rains that could damage solar installations. The area's vegetation grows rapidly in the tropical climate, meaning that trees and other plants can quickly create shading issues if not properly managed during the initial site planning phase.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production while protecting against local environmental challenges:

• Use marine-grade or tropical-rated equipment specifically designed to resist corrosion in high-humidity environments
• Install robust mounting systems engineered to withstand high wind loads from tropical storms
• Ensure all electrical connections are properly sealed with weatherproof enclosures rated for tropical conditions
• Design drainage systems that prevent water accumulation around equipment
• Plan for regular cleaning schedules to remove debris, dust, and organic matter that accumulates more rapidly in tropical climates

Proper vegetation management around the installation site is crucial. This includes trimming back existing trees and shrubs that could create shade, and implementing ongoing landscape maintenance to prevent new growth from impacting panel performance. Installing monitoring systems becomes particularly important in this environment, as they can quickly identify performance drops caused by weather-related issues or equipment problems. Remote monitoring capabilities allow for rapid response to system issues, especially important during and after severe weather events. Ground-mounted systems should be elevated sufficiently to prevent flooding during heavy rains, while roof-mounted systems require extra attention to waterproofing and structural integrity to handle both the additional weight and wind loads from storms.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

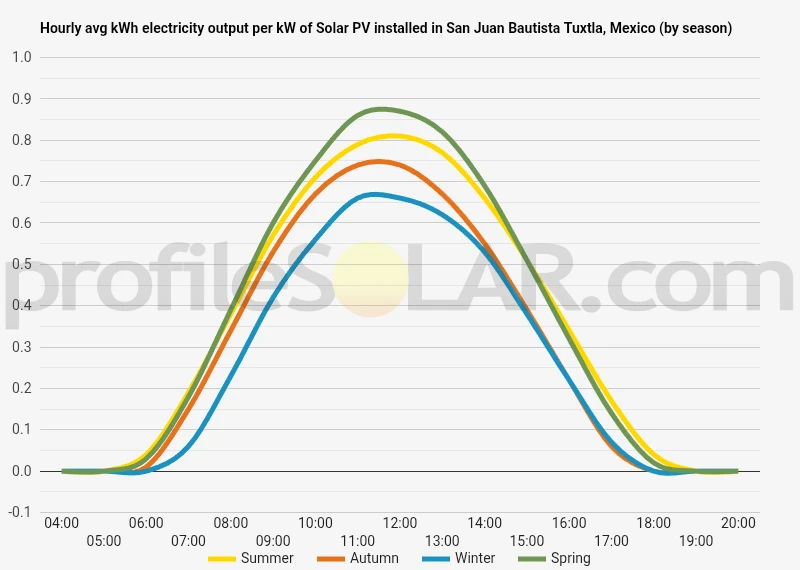

Solar output per kW of installed solar PV by season in San Juan Bautista Tuxtla

Seasonal solar PV output for Latitude: 18.0741, Longitude: -96.088 (San Juan Bautista Tuxtla, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° South in San Juan Bautista Tuxtla, Mexico

To maximize your solar PV system's energy output in San Juan Bautista Tuxtla, Mexico (Lat/Long 18.0741, -96.088) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Juan Bautista Tuxtla, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Juan Bautista Tuxtla, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	23° South in Autumn	34° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Juan Bautista Tuxtla, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Juan Bautista Tuxtla, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Juan Bautista Tuxtla, Mexico

Topographical Features of San Juan Bautista Tuxtla

San Juan Bautista Tuxtla sits in a region of southeastern Mexico characterized by rolling hills and moderate elevation changes. The area lies within the coastal plain that extends inland from the Gulf of Mexico, creating a landscape of gentle undulations rather than dramatic mountainous terrain. The elevation gradually increases as one moves inland from the coast, with the town positioned at a comfortable middle ground between the low-lying coastal areas and the higher elevations found further south. The surrounding countryside features a mix of agricultural lands, pastures, and scattered settlements connected by a network of roads that follow the natural contours of the land. Small streams and seasonal waterways meander through the valleys, creating fertile bottomlands that have supported farming communities for generations. The terrain is generally well-drained, with sufficient slope to prevent water accumulation while remaining gentle enough for various land uses.

Vegetation and Land Use Patterns

The natural vegetation consists primarily of tropical deciduous forest and grasslands, though much of the original forest cover has been converted to agricultural use over time. Cattle ranching and crop cultivation dominate the landscape, creating large open areas with minimal tree cover. These cleared lands offer excellent visibility and accessibility, while the remaining forested areas tend to cluster along waterways and on steeper slopes where farming is less practical. The climate supports year-round agricultural activity, with distinct wet and dry seasons that influence both natural vegetation patterns and human land use decisions. During the dry season, the landscape takes on a more open appearance as deciduous trees shed their leaves and grass cover becomes less dense.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar installations would be the gently sloping agricultural lands and former pastures that characterize much of the region. These areas offer several advantages including relatively flat terrain that minimizes grading requirements, existing road access for construction and maintenance activities, and minimal conflicts with sensitive environmental areas. The elevated plateaus and broad ridgetops scattered throughout the region present particularly attractive opportunities for solar development. These locations typically receive excellent exposure to sunlight throughout the day while offering natural drainage and reduced risk of flooding during the rainy season. The gentle southern and southwestern facing slopes would be especially well-suited for solar panel arrays, as they can be oriented to maximize energy capture. Areas to avoid would include the steeper hillsides where installation costs would be prohibitive, the narrow valley bottoms prone to seasonal flooding, and locations with significant remaining forest cover that would require extensive clearing. The existing agricultural infrastructure, including farm roads and electrical connections to nearby communities, makes many rural areas particularly attractive for solar development with minimal additional infrastructure requirements. The relatively stable geology and absence of extreme topographical features means that most of the region could technically support solar installations, making site selection primarily a matter of optimizing for factors like land availability, grid connectivity, and local community considerations rather than being limited by challenging terrain.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
