San Juan de Sabinas, Mexico represents a very good location for year-round solar photovoltaic energy generation. Located in the Northern Sub Tropics at coordinates 27.9229°N, -101.143°W, this area benefits from consistently strong solar irradiance throughout all seasons.

Seasonal Solar Performance

The solar energy output data shows excellent production potential across all seasons. Summer delivers the highest output at 7.39 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 6.83 kWh per day per kW, providing nearly as strong performance as summer months. Autumn production drops to 5.54 kWh per day per kW, which still represents solid energy generation. Even winter, typically the weakest season for solar production, maintains a respectable 4.50 kWh per day per kW of installed capacity.

Optimal Installation Configuration

For maximum year-round energy production at San Juan de Sabinas, solar panels should be installed at a fixed tilt angle of 25 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel positioning, and weighting these angles using solar irradiance data to account for Earth's elliptical orbit patterns.

Environmental Challenges and Solutions

Several environmental factors could potentially impact solar energy production at this location and require careful consideration during installation:

• Desert dust and sand accumulation - The arid climate can lead to significant dust buildup on panels
• Extreme temperature variations - High daytime temperatures and cooler nights can stress equipment
• Occasional severe weather events - Including hailstorms and high winds typical of northern Mexico
• Water scarcity - Limited water availability for cleaning and maintenance

Preventative Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Installing panels with anti-soiling coatings helps reduce dust adhesion and makes cleaning more efficient. Designing adequate ventilation space beneath panels prevents overheating and maintains optimal operating temperatures. Using tempered glass with impact resistance protects against hail damage, while robust mounting systems engineered for high wind loads ensure structural integrity during storms. Implementing automated cleaning systems or scheduling regular maintenance helps maintain peak efficiency despite water limitations. Selecting inverters and electrical components rated for extreme temperature ranges ensures reliable operation year-round. Additionally, installing monitoring systems allows for quick identification of performance issues caused by environmental factors. Overall, San Juan de Sabinas offers excellent solar potential with manageable environmental challenges that can be effectively addressed through proper installation techniques and equipment selection.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

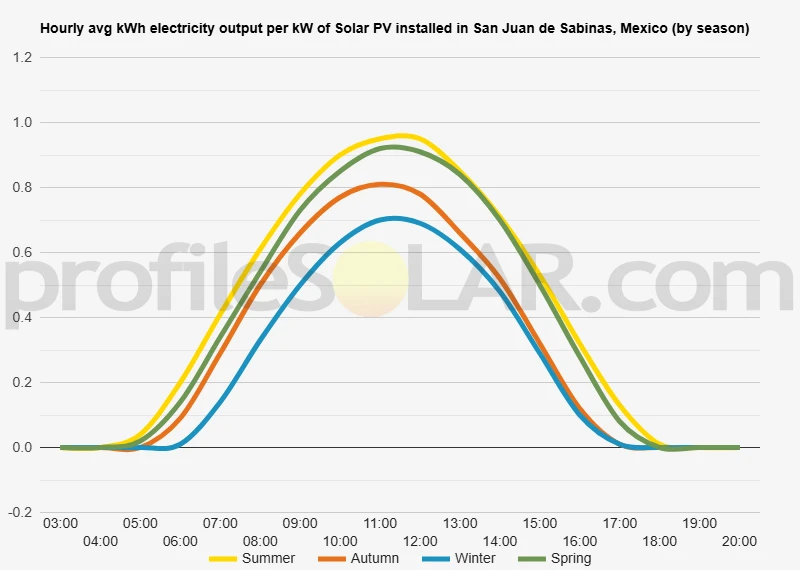

Solar output per kW of installed solar PV by season in San Juan De Sabinas

Seasonal solar PV output for Latitude: 27.9229, Longitude: -101.143 (San Juan De Sabinas, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in San Juan De Sabinas, Mexico

To maximize your solar PV system's energy output in San Juan De Sabinas, Mexico (Lat/Long 27.9229, -101.143) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Juan De Sabinas, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Juan De Sabinas, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Juan De Sabinas, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Juan De Sabinas, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Juan De Sabinas, Mexico

Topographical Features of San Juan de Sabinas

San Juan de Sabinas sits within the Chihuahuan Desert region of northern Mexico, positioned in the state of Coahuila near the Texas border. The landscape surrounding this municipality is characterized by relatively flat to gently rolling terrain, with elevations ranging from approximately 300 to 500 meters above sea level. This area forms part of the broader Mexican Plateau, where the topography transitions from the more mountainous regions to the south into the flatter desert plains extending northward into Texas. The immediate vicinity features expansive stretches of semi-arid scrubland and desert vegetation, with occasional low hills and mesas breaking the horizon. The terrain is generally well-drained, with sparse surface water features due to the arid climate. Small arroyos and seasonal watercourses cut through the landscape, creating minor undulations in an otherwise relatively uniform topographical profile.

Geological and Surface Characteristics

The underlying geology consists primarily of sedimentary formations typical of the Chihuahuan Desert basin. The surface is predominantly composed of sandy and rocky soils with scattered desert pavement areas where wind erosion has exposed harder substrate materials. Vegetation is sparse and consists mainly of drought-resistant shrubs, cacti, and occasional mesquite trees, creating an open landscape with minimal shading obstacles. The region experiences minimal seismic activity and has stable geological conditions, making it suitable for large-scale infrastructure development. The relatively flat terrain requires minimal grading for construction projects, while the firm substrate provides adequate foundation support for heavy installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around San Juan de Sabinas would be the extensive flat plains extending northeast and southeast of the town center. These areas offer several advantages including minimal slope gradients, which reduce construction and maintenance costs while maximizing panel efficiency through optimal positioning. The southeastern plains, in particular, present ideal conditions with their combination of level terrain and minimal vegetation density. This region features stable soil conditions and good accessibility via existing road networks, making it practical for large-scale development. The absence of significant topographical barriers allows for flexible site layout and efficient use of available land. Areas to the northwest show more varied topography with increased elevation changes and should generally be avoided for major solar installations. The western approaches toward the Sierra Madre Oriental foothills present challenges including steeper grades and more complex terrain that would increase development costs and reduce operational efficiency. The northeastern sectors offer another promising zone, where the landscape flattens considerably and extends toward the Rio Grande valley. This region benefits from stable meteorological conditions and minimal interference from natural obstacles, making it highly suitable for utility-scale solar farms.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
