San Juan de los Lagos, Mexico, situated at latitude 21.2434 and longitude -102.3265, presents a favorable location for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with seasonal variations primarily characterized by wet and dry periods rather than significant changes in daylight hours.

Seasonal Solar Performance

The solar energy potential in San Juan de los Lagos demonstrates strong year-round performance, with some seasonal fluctuations. Spring stands out as the most productive season, yielding an impressive 8.33 kWh per day for each kilowatt of installed solar capacity. Summer follows with a solid 6.70 kWh/day, while winter and autumn show slightly lower but still substantial outputs of 5.93 kWh/day and 5.89 kWh/day, respectively.

Optimal Panel Tilt

For fixed solar panel installations in this location, the ideal tilt angle to maximize year-round energy production is 20 degrees facing south. This angle has been calculated considering the daily solar elevation angles, optimal panel tilt, and weighted by the daily photovoltaic potential using NASA's solar irradiance data.

Peak Generation Periods

The most ideal time for solar energy generation in San Juan de los Lagos is during the spring months. This period offers the highest daily output, likely due to clear skies and moderate temperatures. Summer also presents excellent generation potential, although slightly lower than spring, possibly due to increased cloud cover during the rainy season.

Environmental Considerations

While San Juan de los Lagos generally offers favorable conditions for solar energy production, there are a few environmental factors to consider: 1. Dust and pollution: The semi-arid climate can lead to dust accumulation on panels, potentially reducing efficiency. 2. Seasonal rains: The wet season, typically occurring in summer, may temporarily reduce solar output due to increased cloud cover. To mitigate these issues, regular panel cleaning should be incorporated into maintenance routines. Additionally, installing panels at the recommended 20-degree tilt can help with natural cleaning during rainfalls and prevent dust buildup. In conclusion, San Juan de los Lagos presents an excellent location for solar PV installations, with strong year-round potential and particularly high output during spring and summer months. With proper installation and maintenance, solar energy systems in this area can expect to perform efficiently throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

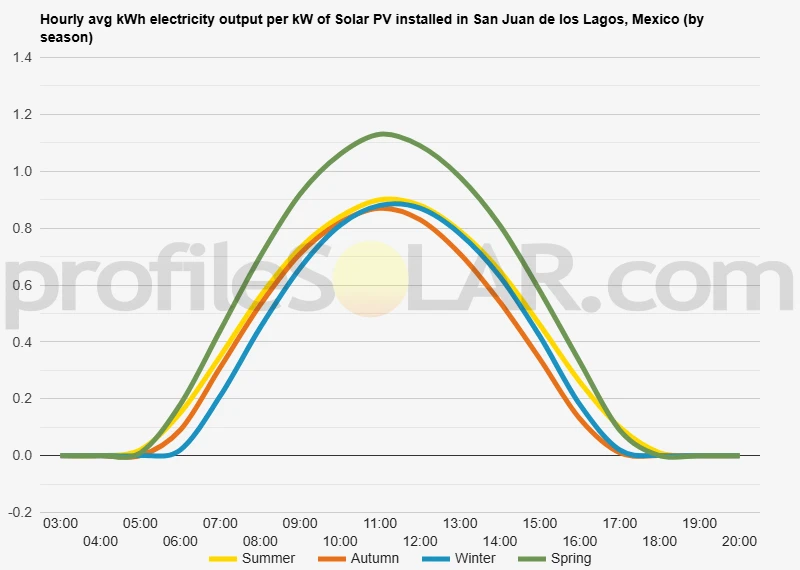

Solar output per kW of installed solar PV by season in San Juan De Los Lagos

Seasonal solar PV output for Latitude: 21.2434, Longitude: -102.3265 (San Juan De Los Lagos, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in San Juan De Los Lagos, Mexico

To maximize your solar PV system's energy output in San Juan De Los Lagos, Mexico (Lat/Long 21.2434, -102.3265) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Juan De Los Lagos, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Juan De Los Lagos, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	27° South in Autumn	36° South in Winter	15° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Juan De Los Lagos, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Juan De Los Lagos, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Juan De Los Lagos, Mexico

The topography surrounding San Juan de los Lagos, Mexico, is characterized by a diverse landscape that reflects the region's geological history and climate. Located in the state of Jalisco, this area is part of the Mexican Plateau, a vast highland region that covers much of central Mexico. The terrain around San Juan de los Lagos features a mix of rolling hills, small valleys, and flat plains, creating a picturesque and varied environment. To the north and east of the city, the land gradually rises, forming gentle slopes and hillsides. These elevated areas provide panoramic views of the surrounding countryside and are often dotted with shrubs and small trees adapted to the semi-arid climate. The southern and western parts of the region tend to be flatter, with expansive plains that stretch out towards the horizon.

Potential for Solar PV Development

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The flat plains to the south and west of San Juan de los Lagos present particularly promising opportunities for solar energy development. These areas offer several advantages for large-scale solar PV projects: Firstly, the relatively level terrain reduces the need for extensive land preparation, making it easier and more cost-effective to install solar panels over large areas. The absence of significant geographical obstacles also minimizes shading issues, allowing for optimal sun exposure throughout the day. Secondly, the region's climate is favorable for solar energy production. The area experiences abundant sunshine throughout the year, with limited cloud cover and rainfall. This high solar irradiance is crucial for maximizing the efficiency and output of solar PV systems. Additionally, the semi-arid nature of the landscape means that there is less competition for land use from agriculture or dense vegetation. This can simplify the process of acquiring and developing land for solar installations. However, it's important to note that any large-scale solar PV project would require careful environmental impact assessments and consideration of local ecosystems. While the flat plains may seem ideal, developers would need to ensure that their projects do not negatively affect local wildlife or disrupt important natural habitats. In conclusion, the topography around San Juan de los Lagos offers a mix of hilly and flat terrain, with the flatter areas to the south and west presenting the most promising locations for large-scale solar PV development. The combination of suitable land, favorable climate, and abundant sunshine makes this region an attractive prospect for renewable energy projects, provided they are implemented with due consideration for the local environment and communities.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
