San Salvador, Hidalgo, Mexico, located at coordinates 20.2939°N, -99.0271°W, presents a generally favorable location for year-round solar photovoltaic energy generation. This tropical location benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Seasonal Solar Energy Production

The solar energy output at this location varies notably across the seasons. Spring emerges as the most productive period, generating 7.45 kWh per day for each kilowatt of installed solar capacity. Summer follows with 6.23 kWh/day per kW, while winter produces 5.69 kWh/day per kW. Autumn shows the lowest output at 5.56 kWh/day per kW of installed solar panels. Spring represents the ideal time for solar generation at this location, likely due to optimal sun angles and clearer atmospheric conditions before the wet season intensifies. The relatively strong performance during winter months demonstrates the advantage of this tropical location, where solar production remains viable year-round.

Optimal Panel Installation

For maximum year-round solar energy production at San Salvador, Hidalgo, Mexico, fixed solar panels should be tilted at 19 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying elevation throughout the year and weighting these angles according to actual solar irradiance data.

Environmental and Weather Challenges

Several significant factors could impede solar production at this location, requiring careful consideration during installation planning. The wet season poses the primary challenge, as heavy rainfall and increased cloud cover can substantially reduce solar irradiance. The lower autumn production figures likely reflect this seasonal weather pattern. Prolonged periods of overcast skies during intense rainy periods can dramatically decrease energy generation. High humidity levels, common in tropical locations, can lead to moisture-related issues including corrosion of electrical components and reduced panel efficiency over time. The combination of heat and humidity creates particularly challenging conditions for solar equipment longevity. Dust accumulation presents another concern, especially during drier periods. Airborne particles can settle on panel surfaces, creating a film that reduces light transmission and energy output. This issue may be compounded by occasional dust storms or volcanic ash, given Mexico's geological activity.

Preventative Installation Measures

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate drainage systems and slight tilting to prevent water pooling during heavy rains
• Use marine-grade or tropical-rated electrical components designed to withstand high humidity and temperature fluctuations
• Implement regular cleaning schedules, particularly important before and after dusty seasons
• Choose panels with anti-reflective coatings that resist dust adhesion and facilitate natural cleaning by rainfall
• Install proper ventilation behind panels to reduce heat buildup and improve efficiency

Proper grounding and surge protection become especially critical in areas prone to intense thunderstorms during wet seasons. Additionally, selecting inverters and electrical components rated for high-temperature, high-humidity environments will ensure more reliable long-term performance and reduce maintenance requirements.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

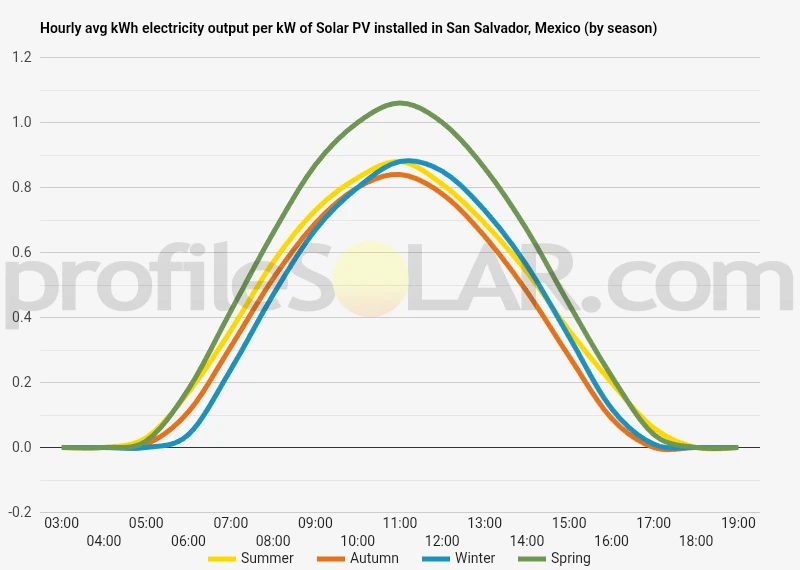

Solar output per kW of installed solar PV by season in San Salvador

Seasonal solar PV output for Latitude: 20.2939, Longitude: -99.0271 (San Salvador, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in San Salvador, Mexico

To maximize your solar PV system's energy output in San Salvador, Mexico (Lat/Long 20.2939, -99.0271) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Salvador, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Salvador, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	26° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Salvador, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Salvador, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Salvador, Mexico

Topographical Features of San Salvador, Mexico

San Salvador in Mexico sits within the central Mexican plateau, characterized by a landscape that transitions between rolling hills and relatively flat terrain. The area forms part of the broader Trans-Mexican Volcanic Belt, which creates a complex topography of volcanic formations, elevated plains, and gentle slopes. The elevation in this region generally ranges from moderate to high altitudes, contributing to the area's distinctive geographical character.

The immediate surroundings feature a mix of agricultural lands and semi-arid terrain, with the landscape gradually undulating rather than presenting steep mountainous barriers. This creates natural valleys and elevated plateaus that define much of the central Mexican geography. The volcanic origins of the region have left behind fertile soils in some areas, while others display the characteristic rocky outcrops and mineral-rich surfaces typical of volcanic landscapes.

Water features in the area include seasonal streams and small waterways that flow through the valleys, though permanent water bodies are relatively sparse. The drainage patterns follow the natural contours of the land, creating a network of small watersheds that contribute to the overall topographical complexity of the region.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie in the flatter portions of the surrounding plateau areas. These zones offer the dual advantages of minimal grading requirements and reduced installation costs, while maintaining good accessibility for construction and maintenance activities. The elevated plains to the north and east of San Salvador present particularly attractive characteristics for solar development.

Areas with gentle southern-facing slopes provide excellent opportunities for solar installations, as these orientations maximize exposure to direct sunlight throughout the day. The volcanic plateau regions offer stable geological foundations that can support large-scale solar arrays without significant ground preparation or specialized mounting systems.

The semi-arid zones surrounding the immediate agricultural areas represent ideal candidates for solar development. These locations typically have minimal competing land uses and offer the clear atmospheric conditions favorable for photovoltaic generation. The relatively sparse vegetation in these areas reduces environmental impact concerns and simplifies site preparation processes.

Transportation infrastructure accessibility plays a crucial role in site selection, and the areas connected to existing road networks while maintaining suitable topographical characteristics offer the best development potential. The combination of flat to gently sloping terrain, stable geological conditions, and reasonable proximity to electrical transmission infrastructure makes the plateau regions extending outward from San Salvador particularly well-suited for large-scale solar installations.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.
