Sayula, Jalisco, Mexico represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 19.9437°N, -103.6762°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data for Sayula shows strong and relatively consistent performance across all seasons. Winter delivers 5.97 kWh per day per kW of installed solar capacity, while summer produces 5.88 kWh per day per kW. Autumn shows slightly lower output at 5.63 kWh per day per kW, but spring stands out as the peak season with exceptional production of 8.15 kWh per day per kW of installed capacity. Spring emerges as the ideal time for solar generation at this location, producing nearly 45% more energy than the lowest-performing season. This makes Sayula particularly attractive for solar installations, as the variation between seasons is manageable and the peak performance period delivers outstanding results. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 19 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's path throughout the year, daily solar elevation angles, and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Sayula, Jalisco, though most can be effectively managed with proper installation techniques. The tropical climate brings distinct wet and dry seasons, with the rainy period potentially reducing solar output due to increased cloud cover and atmospheric moisture. However, the seasonal production data suggests this impact is relatively modest, as even the lowest-producing season still delivers substantial energy output. Dust accumulation presents a significant concern in this region, particularly during dry periods. The combination of agricultural activities in the surrounding area and periodic dry winds can deposit dust and debris on solar panels, reducing their efficiency. Regular cleaning schedules and automated washing systems can help maintain optimal performance.

Preventative Installation Measures

To maximize energy production despite local challenges, several installation strategies prove beneficial:

• Install panels with adequate spacing for air circulation to prevent overheating during hot periods
• Use high-quality mounting systems designed to withstand tropical weather conditions including heavy rains and strong winds
• Implement regular cleaning protocols or automated washing systems to combat dust buildup
• Consider anti-soiling coatings on panel surfaces to reduce dust adhesion
• Ensure proper drainage around installations to prevent water pooling during rainy seasons

The relatively stable tropical climate and strong solar resource make Sayula an attractive location for solar energy projects. While environmental factors require consideration during planning and installation, they do not significantly diminish the location's excellent solar potential when proper mitigation measures are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

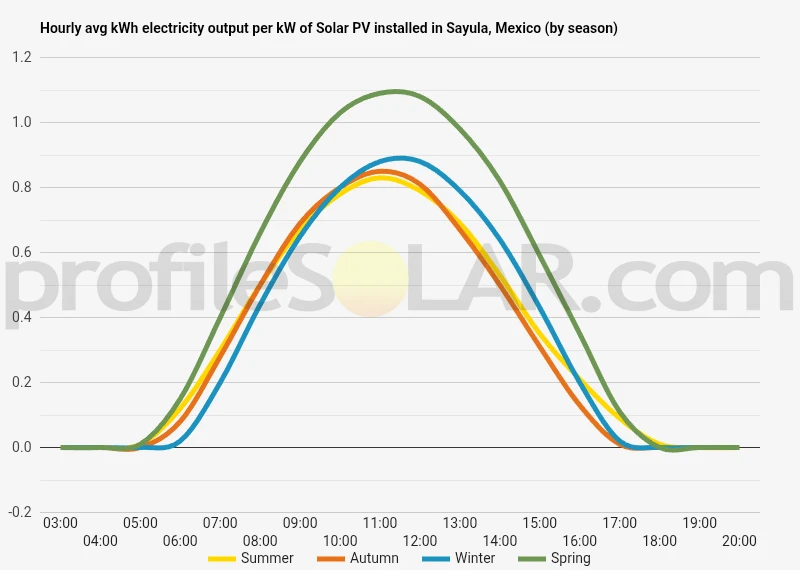

Solar output per kW of installed solar PV by season in Sayula

Seasonal solar PV output for Latitude: 19.9437, Longitude: -103.6762 (Sayula, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Sayula, Mexico

To maximize your solar PV system's energy output in Sayula, Mexico (Lat/Long 19.9437, -103.6762) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sayula, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sayula, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	26° South in Autumn	35° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sayula, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sayula, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sayula, Mexico

Topographical Features Around Sayula

Sayula sits in the southern portion of Jalisco state, nestled within a distinctive geographical basin known as the Sayula Basin or Laguna de Sayula depression. This area represents one of Mexico's most notable endorheic basins, where water flows inward rather than reaching the ocean. The immediate terrain around the city is characterized by relatively flat to gently rolling plains that extend across much of the basin floor, sitting at approximately 1,350 meters above sea level. The basin itself is surrounded by higher elevations that form natural boundaries. To the north and northeast, the terrain rises gradually toward the foothills of the Sierra de Amula, while the southern margins are defined by volcanic hills and ridges that separate this basin from adjacent valleys. The western edge features moderate slopes leading up to higher ground, and the eastern boundary is marked by similar elevated terrain that helps contain the basin's internal drainage system. The landscape within the immediate vicinity of Sayula displays the typical characteristics of an intermontane basin, with broad expanses of relatively level ground interrupted by occasional low hills and gentle undulations. Much of this area has been modified by centuries of agricultural use, creating extensive flat fields and pastures that stretch across the basin floor. The natural lake that historically occupied the central portion of the basin has largely dried up in modern times, leaving behind additional flat terrain with clay-rich soils.

Volcanic Influences and Terrain Variation

The broader region shows clear evidence of volcanic activity, with several prominent volcanic features visible in the surrounding landscape. These volcanic formations have created a varied topography that includes cinder cones, lava flows, and associated volcanic terrain. However, much of this more dramatic topography lies at the margins of the basin rather than in the immediate Sayula area. The volcanic soils and deposits have contributed to the generally stable geological conditions found throughout much of the basin. The terrain exhibits good drainage characteristics in most areas, though some locations near the former lake bed may have different soil conditions due to the historical presence of standing water.

Optimal Areas for Large-Scale Solar Development

The extensive flat to gently rolling terrain surrounding Sayula presents excellent opportunities for large-scale solar photovoltaic installations. The most promising areas lie in the central and northern portions of the basin, where broad expanses of level ground extend for considerable distances without significant topographical obstacles. The agricultural plains that stretch northward and eastward from the city offer particularly suitable conditions, with minimal slope variations and good accessibility via existing road networks. These areas would require minimal grading or site preparation work, keeping development costs relatively low while providing stable foundations for solar arrays. The former lake bed areas, while potentially requiring more detailed soil analysis, represent another zone with exceptionally flat terrain that could accommodate very large installations. The clay-rich soils in these areas may actually provide excellent stability for solar mounting systems once properly assessed and prepared. Areas to the west and southwest of Sayula also show promise, where the terrain remains relatively flat before beginning its gradual rise toward the basin margins. These locations would benefit from good solar exposure while maintaining the accessibility and gentle topography that make large-scale development feasible. The key advantage of the Sayula basin for solar development lies in its combination of extensive flat terrain, stable geological conditions, and existing infrastructure connections. The basin's natural boundaries help protect potential installations from extreme weather while the internal drainage patterns minimize flood risks in most areas.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
