Solar Energy Potential in Tapachula, Chiapas, Mexico

Tapachula, Chiapas, Mexico, situated at the southern edge of the country near the Guatemala border, offers very favorable conditions for solar energy production throughout the year. Located in the tropics, this location benefits from remarkably consistent solar energy potential across all seasons, with only modest variations between them. The solar electricity generation potential shows impressive year-round performance. During spring, panels can produce approximately 6.80 kWh per day for each kilowatt of installed capacity, making this the most productive season. Summer follows with 6.42 kWh/day, while winter yields about 6.20 kWh/day. Autumn shows the lowest output at 6.15 kWh/day, but the difference between the highest and lowest seasonal outputs is relatively small at just 0.65 kWh/day.

Optimal Panel Installation

For fixed solar panel installations in Tapachula, Chiapas, the ideal tilt angle to maximize year-round energy production is 14 degrees facing South. This specific angle has been calculated taking into account the location's latitude, the sun's position throughout the year, and the weighted solar potential across different seasons. This moderate tilt helps optimize energy capture across all seasons rather than favoring any particular time of year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Tapachula:

• The region experiences a distinct rainy season (typically May to October), which can temporarily reduce solar output due to cloud cover and rainfall.
• Tropical storms and hurricanes can occasionally affect the area, potentially causing physical damage to installations if not properly secured.
• High humidity levels may lead to increased dust adhesion on panels, reducing efficiency if not regularly maintained.
• The tropical climate can accelerate degradation of equipment if not properly rated for these conditions.

Preventative Measures

To maximize solar energy production in Tapachula despite these challenges, several preventative measures are recommended:

• Install hurricane-rated mounting systems that can withstand strong winds common during tropical storms.
• Implement a regular cleaning schedule, particularly during the dry season when dust accumulation may be higher.
• Use solar equipment with high humidity and corrosion resistance ratings specifically designed for tropical environments.
• Consider a slight increase in system capacity to compensate for reduced output during the rainy season.
• Install micro-inverters or power optimizers to minimize the impact of partial shading from clouds.

Despite these considerations, Tapachula's consistent year-round solar radiation makes it an excellent location for solar energy production, with annual average daily production exceeding 6 kWh per installed kilowatt, significantly higher than many non-tropical locations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

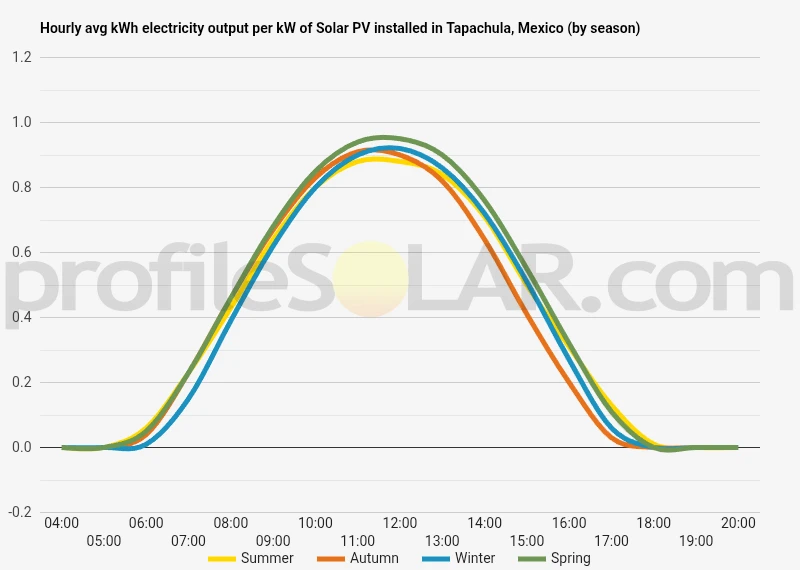

Solar output per kW of installed solar PV by season in Tapachula

Seasonal solar PV output for Latitude: 14.9058, Longitude: -92.2634 (Tapachula, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° South in Tapachula, Mexico

To maximize your solar PV system's energy output in Tapachula, Mexico (Lat/Long 14.9058, -92.2634) throughout the year, you should tilt your panels at an angle of 14° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tapachula, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tapachula, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	21° South in Autumn	30° South in Winter	9° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tapachula, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tapachula, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tapachula, Mexico

Tapachula is situated in the southernmost part of Mexico in the state of Chiapas, nestled between the Sierra Madre de Chiapas mountain range and the Pacific Ocean. This location creates a diverse topographical landscape that transitions from coastal plains to dramatic mountain slopes.

Coastal Plains

The western and southwestern areas surrounding Tapachula consist of relatively flat coastal plains that extend toward the Pacific Ocean. These lowlands are characterized by gentle slopes and elevations typically below 200 meters above sea level. The terrain here is predominantly composed of alluvial soils deposited by rivers flowing from the mountains to the coast. This flat to gently undulating landscape features scattered agricultural fields and some wetland areas closer to the coast.

Foothills and Valleys

Moving inland and eastward from Tapachula, the terrain begins to rise into the foothills of the Sierra Madre de Chiapas. This transitional zone features rolling hills and small valleys with elevations ranging from 200 to 500 meters. The landscape becomes more irregular, with numerous small streams and rivers cutting through the terrain. These areas often contain a mix of agricultural land and patches of tropical vegetation.

Sierra Madre Mountains

The eastern and northeastern regions beyond Tapachula rise dramatically into the Sierra Madre de Chiapas mountain range. These mountains can reach heights exceeding 2,000 meters and form a significant topographical barrier. The slopes are steep and often covered with tropical forests, particularly at higher elevations. Numerous valleys and canyons cut through the mountains, created by rivers that flow toward the coastal plains.

Volcanic Features

The regional landscape is also influenced by volcanic activity. Most notably, the Tacaná Volcano stands as a prominent feature northeast of Tapachula, rising to approximately 4,060 meters above sea level. This stratovolcano straddles the Mexico-Guatemala border and contributes to the rugged mountain topography of the area.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the coastal plains west and southwest of Tapachula offer the most suitable terrain. These areas combine several advantageous characteristics: The flat to gently sloping terrain minimizes the need for extensive land grading and preparation, significantly reducing construction costs for large solar arrays. The open landscape also experiences minimal shadowing effects from topographical features, allowing for optimal solar exposure throughout the day. Additionally, these coastal areas typically have fewer dense forests compared to the mountainous regions, reducing environmental impact and land clearing requirements. The proximity to existing infrastructure, including roads and the urban center of Tapachula, would facilitate construction and maintenance access while providing relatively short transmission distances to population centers. The transitional foothills zone might also offer some suitable locations, particularly on south-facing slopes that receive consistent sunlight. However, these areas would require more careful site selection to avoid excessive grading costs and to manage drainage issues during the rainy season. The mountainous regions to the east and northeast, while receiving good solar radiation at higher elevations, present significant challenges for large-scale installations due to difficult access, steep slopes, and environmental considerations. These areas would generally be impractical for industrial-scale solar development but might accommodate smaller, distributed solar installations.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
