Solar Energy Potential in Terrenate, Tlaxcala, Mexico

Terrenate, Tlaxcala, Mexico, situated in the tropics at 19.4762° N, -97.9161° W, presents a favorable location for solar energy generation throughout the year. This tropical region benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight hours. The solar electricity production potential at Terrenate shows promising output across all seasons. In spring, the location achieves its peak performance with an impressive 6.61 kWh per day for each kilowatt of installed solar capacity. Summer follows with a solid 5.66 kWh/day, while winter and autumn maintain respectable outputs of 5.31 kWh/day and 5.29 kWh/day respectively. For residents or developers considering solar installations in Terrenate, Tlaxcala, this data indicates that spring represents the optimal season for solar energy generation. However, the relatively small variation between seasons suggests that solar panels would provide substantial energy throughout the entire year, making it a reliable renewable energy source for this location.

Optimal Panel Installation

For fixed solar panel installations in Terrenate, Tlaxcala, the ideal tilt angle to maximize year-round energy production is 19 degrees facing South. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the location's latitude and the Earth's elliptical orbit around the sun.

Environmental Considerations

Like many tropical locations, Terrenate may experience a pronounced wet season that could temporarily reduce solar efficiency. During rainy periods, cloud cover can diminish direct sunlight exposure, potentially reducing the energy output below the seasonal averages mentioned above. To mitigate these environmental factors, several preventative measures can be implemented:

• Installing slightly elevated panels with adequate drainage systems to prevent water accumulation
• Using self-cleaning panel technologies or implementing regular cleaning schedules to remove dust and debris that might accumulate during dry seasons
• Considering micro-inverter or power optimizer technologies that can help maintain production even when some panels are partially shaded
• Installing lightning protection systems, particularly important in tropical regions prone to thunderstorms

With these considerations in mind, Terrenate represents a highly viable location for solar energy production, with consistent year-round generation potential and a clear peak during the spring months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

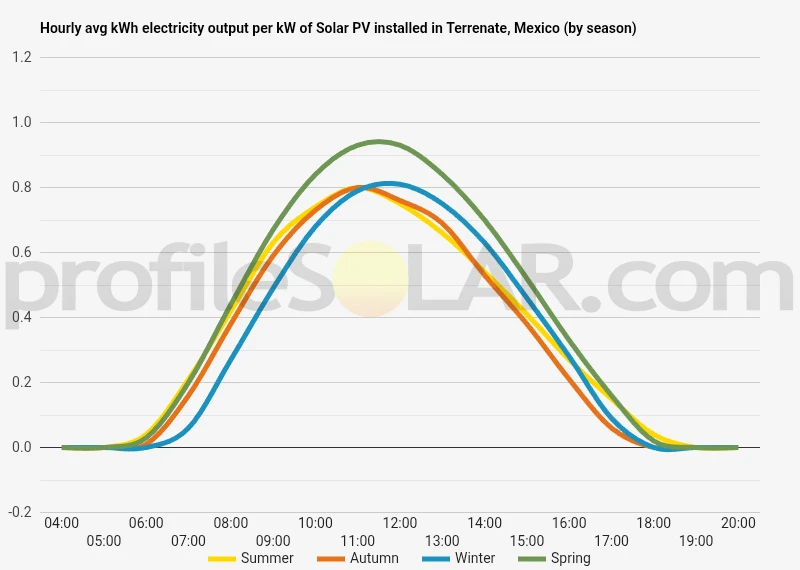

Solar output per kW of installed solar PV by season in Terrenate

Seasonal solar PV output for Latitude: 19.4762, Longitude: -97.9161 (Terrenate, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Terrenate, Mexico

To maximize your solar PV system's energy output in Terrenate, Mexico (Lat/Long 19.4762, -97.9161) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Terrenate, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Terrenate, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	25° South in Autumn	35° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Terrenate, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Terrenate, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Terrenate, Mexico

Terrenate, situated in the eastern part of Mexico, presents a diverse topographical landscape. The area is characterized by its location within the Sierra Madre Oriental mountain range, creating a terrain that varies significantly in elevation. The region features rolling hills, valleys, and some more pronounced mountainous features, with elevations generally ranging between 2,300 and 2,800 meters above sea level. The landscape around Terrenate contains numerous small plateaus and gentle slopes, interspersed with more rugged terrain in certain areas. The soil composition tends to be volcanic in origin, reflecting the broader geological history of central Mexico. Natural vegetation in the region is predominantly semi-arid, consisting of various shrubs, cacti, and drought-resistant grasses, though agricultural modification has altered much of the natural landscape.

Hydrological Features

Water resources around Terrenate are relatively limited, with seasonal streams and small water bodies that vary in volume throughout the year. The region experiences a distinct wet season, typically from June to September, when most precipitation occurs. During the dry season, water availability becomes more restricted, which is an important consideration for any development in the area.

Climate Influence on Topography

The climate has played a significant role in shaping the topography of the Terrenate area. The region experiences a temperate climate with seasonal variations, contributing to the erosion patterns visible in the landscape. Wind patterns have also influenced the terrain, creating some distinctive geological features over time.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Terrenate would be the gently sloping plateaus and relatively flat terrain sections that can be found primarily to the east and southeast of the main settlement. These areas offer several advantages for solar development: The more level terrain in these sections reduces the need for extensive grading and site preparation, which can significantly lower initial construction costs for solar installations. These areas also tend to have minimal shadowing effects from surrounding topographical features, maximizing potential solar exposure throughout the day. Additionally, these eastern and southeastern regions generally have less agricultural activity than other areas around Terrenate, potentially reducing land-use conflicts. The natural drainage patterns in these areas also tend to minimize flooding risks, which is beneficial for maintaining solar infrastructure over time.

Topographical Challenges

Despite these advantages, certain topographical challenges exist for solar development in the region. Some areas, particularly to the west and northwest, feature more pronounced slopes and irregular terrain that would require substantial modification for large-scale installations. These areas would involve higher development costs and potentially greater environmental impacts. The seasonal water flows during the rainy period must also be carefully considered in site selection and design, as proper drainage systems would be essential to protect solar infrastructure. The volcanic soil composition, while generally stable, may require specific foundation designs in certain locations to ensure the long-term stability of solar arrays. In summary, the topography around Terrenate offers good potential for solar PV development, particularly in the more level eastern and southeastern regions, though careful site selection and engineering would be necessary to address the specific characteristics of this mountainous landscape.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
