Solar PV Analysis of Tlaquepaque, Mexico
Tlaquepaque, Jalisco, Mexico is a great location for generating solar energy throughout the year due to its tropical climate. The amount of sunlight it receives is consistent and doesn't change much from season to season. This consistency means that solar panels can produce a substantial amount of electricity all year round.
In terms of the best times for solar energy production, Spring stands out as the most productive season with an average electricity output of 8.19 kWh per day for each kilowatt (kW) of installed solar power. Summer follows closely behind with 6.22 kWh/day per kW, while Autumn and Winter also have good outputs at around 5.78 and 5.98 kWh/day per kW respectively.
For optimal results, if you're installing fixed panel solar systems in Tlaquepaque, Jalisco, it's best to tilt them at an angle of 19 degrees facing South which will help maximize total annual production from your photovoltaic (PV) system.
However, there could be some local factors that might affect the performance of your PV system in this area such as dust storms or heavy rainfall during wet seasons which could cover panels reducing their efficiency or even damage them over time if not properly maintained.
To mitigate these potential issues:
1) Regular maintenance should be carried out on your PV system including cleaning off any debris or dust that may accumulate on the surface.
2) Consider installing protective measures like weather-resistant barriers or covers especially during wet seasons.
3) Ensure proper installation techniques are used by qualified professionals who understand local weather conditions and can recommend appropriate precautions based on experience working in similar environments.
Overall though, Tlaquepaque provides excellent conditions for harnessing sun power consistently throughout the year making it an ideal location for generating renewable energy via solar PV systems!
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Mexico by location

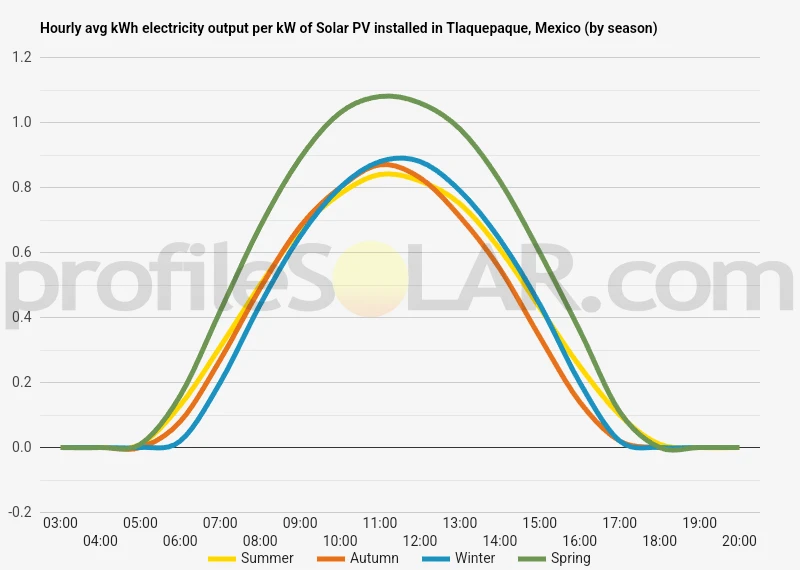

Solar output per kW of installed solar PV by season in Tlaquepaque
Seasonal solar PV output for Latitude: 20.6073, Longitude: -103.3641 (Tlaquepaque, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 19° South in Tlaquepaque, Mexico
To maximize your solar PV system's energy output in Tlaquepaque, Mexico (Lat/Long 20.6073, -103.3641) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Tlaquepaque, Mexico
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tlaquepaque, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 5° South in Summer | 27° South in Autumn | 36° South in Winter | 14° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Tlaquepaque, Mexico
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tlaquepaque, Mexico.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Tlaquepaque, Mexico
Tlaquepaque is located in the state of Jalisco, Mexico. The city is situated on a plateau in the central part of Mexico and has an average altitude of 1,550 meters (5,085 feet) above sea level. It's surrounded by mountains to the north and south with relatively flat terrain in between.
The topography around Tlaquepaque includes highlands, lowlands, valleys and mountain ranges. The climate is subtropical with dry winters which makes it ideal for solar power generation.
For large-scale solar PV installations, areas with flat or gently sloping terrains would be most suitable as they allow for easier installation and maintenance while also maximizing exposure to sunlight. This could include the plains surrounding Tlaquepaque towards its east and west where there are extensive agricultural lands that might be suitable for this purpose.
However, any decision on specific locations should consider other factors such as land use restrictions, proximity to transmission lines or substations for grid connection, potential environmental impact among others. Therefore detailed feasibility studies including site inspections would be required before making a final decision.
Mexico solar PV Stats as a country
Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Mexico?
Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
