Trancoso, Zacatecas, Mexico presents an excellent location for year-round solar energy generation, with consistently strong electricity output potential throughout all seasons. Located in the tropical region at coordinates 22.739° North, -102.3651° West, this area benefits from the reliable sunlight patterns typical of tropical climates.

Seasonal Solar Performance

The solar energy production at Trancoso varies meaningfully across the seasons, with spring emerging as the peak performance period. During spring months, solar panels can generate an impressive 8.15 kWh per day for each kW of installed capacity. Summer follows as the second-best season with 6.82 kWh/day per kW, while winter maintains solid production at 5.89 kWh/day per kW. Autumn shows the lowest output at 5.76 kWh/day per kW, though this still represents strong generation potential. The optimal time for solar generation clearly falls during spring and summer months, when the sun's position and atmospheric conditions combine to deliver maximum energy output. Even during the lower-performing seasons of autumn and winter, the production levels remain quite respectable for a solar installation.

Optimal Panel Configuration

For maximum year-round energy production at Trancoso, Zacatecas, solar panels should be installed at a fixed tilt angle of 21 degrees facing south. This angle has been calculated by analyzing the sun's daily elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to actual solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this tropical Mexican location. The most significant concern involves the seasonal rainfall patterns typical of tropical climates, where intense wet seasons can reduce solar output through cloud cover and frequent storms.

• Heavy seasonal rains and associated cloud cover during wet months
• Dust accumulation during dry periods, which can coat panels and reduce efficiency
• High humidity levels that may affect electrical components over time
• Potential for severe weather events including tropical storms or hurricanes

Preventative Installation Measures

To maximize energy production despite these environmental challenges, several preventative measures should be incorporated during installation. Regular cleaning systems or easy access for manual cleaning becomes crucial during both dusty dry seasons and after wet periods when debris may accumulate on panels. Installing panels with adequate ventilation space underneath helps combat the effects of high humidity and heat, allowing air circulation to keep components cooler and more efficient. Robust mounting systems designed to withstand high winds and severe weather events are essential given the potential for tropical storms in this region. Proper drainage around the installation site prevents water accumulation that could damage electrical components, while using marine-grade or tropical-rated electrical components helps ensure longevity in the humid environment. These measures, combined with the location's strong baseline solar potential, can help maintain excellent energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

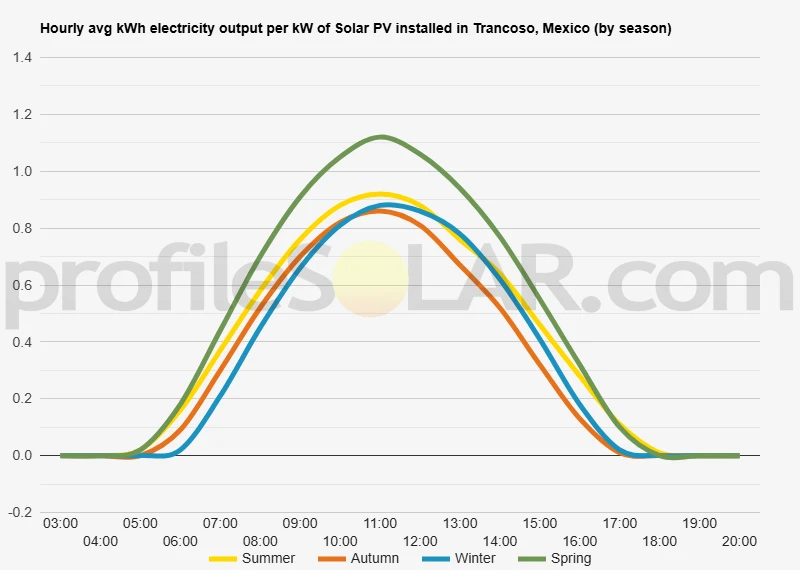

Solar output per kW of installed solar PV by season in Trancoso

Seasonal solar PV output for Latitude: 22.739, Longitude: -102.3651 (Trancoso, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° South in Trancoso, Mexico

To maximize your solar PV system's energy output in Trancoso, Mexico (Lat/Long 22.739, -102.3651) throughout the year, you should tilt your panels at an angle of 21° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Trancoso, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Trancoso, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	29° South in Autumn	38° South in Winter	16° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Trancoso, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Trancoso, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Trancoso, Mexico

Topographical Features Around Trancoso

Trancoso sits within the Mexican Plateau, a vast elevated region that characterizes much of central Mexico. The terrain around this location features gently rolling hills and broad valleys typical of the southern portion of Zacatecas state. The elevation reaches approximately 2,100 meters above sea level, placing the area within Mexico's temperate highland zone.

The landscape consists primarily of semi-arid plains interspersed with low mountain ranges and mesas. These formations create a moderately undulating topography rather than dramatic elevation changes. The surrounding countryside displays the characteristic features of the Mexican Altiplano, with wide expanses of relatively flat terrain broken by occasional rocky outcrops and gentle ridges.

Drainage patterns in the region follow natural depressions and valleys, with seasonal streams that flow during the rainy months. The soil composition varies from rocky, thin layers on elevated areas to deeper alluvial deposits in the valley floors. Vegetation remains sparse due to the semi-arid climate, consisting mainly of shrubland, grassland, and scattered drought-resistant trees.

Optimal Areas for Large-Scale Solar Development

The broad valley floors surrounding Trancoso present the most promising locations for extensive solar installations. These areas offer relatively level terrain that minimizes grading requirements and construction costs. The gentle slopes found throughout much of the region could accommodate solar arrays with minimal site preparation, particularly on south-facing gradients that naturally optimize panel orientation.

Mesa tops and elevated plateaus in the vicinity provide additional suitable locations, offering expansive flat surfaces with excellent exposure conditions. These elevated positions benefit from reduced atmospheric interference and consistent wind patterns that help maintain optimal panel temperatures. The stable geological conditions of these formations also support the infrastructure requirements of large-scale solar facilities.

Areas with minimal vegetation cover, particularly the natural clearings common throughout the semi-arid landscape, would require less environmental disruption during development. The existing sparse plant coverage means reduced clearing costs and fewer ecological concerns compared to more densely vegetated regions.

Transportation access proves favorable throughout much of the surrounding terrain, with the relatively gentle topography allowing for straightforward road construction to remote sites. The proximity to existing infrastructure, including power transmission corridors that serve the regional grid, enhances the viability of solar developments in multiple directions from Trancoso.

The combination of stable geological conditions, manageable terrain, and adequate space for large installations makes the broader valley systems and elevated plains within a reasonable distance of Trancoso particularly well-suited for utility-scale solar projects. These areas balance the technical requirements of solar development with practical considerations of access, grid connectivity, and land availability.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
