Solar PV Analysis of Veracruz, Mexico
Veracruz, Mexico, situated at 19.2139°N, -96.2198°W, offers a promising location for solar energy generation throughout the year. This tropical climate provides consistent sunlight, with seasons primarily distinguished by wet and dry periods rather than significant temperature fluctuations.
Seasonal Solar Performance
Solar panel performance in Veracruz varies across seasons, with spring being the most productive period. The average daily electricity output per kilowatt of installed solar capacity is as follows:
- Spring: 6.16 kWh/day
- Summer: 5.93 kWh/day
- Autumn: 5.16 kWh/day
- Winter: 4.48 kWh/day
These figures indicate that solar energy production remains relatively stable throughout the year, with a slight dip during winter months. The consistency in output makes Veracruz an attractive location for year-round solar power generation.
Optimal Panel Installation
For fixed panel installations in Veracruz, the ideal tilt angle to maximize year-round solar production is 17 degrees facing South. This angle has been calculated considering daily solar elevation angles, optimal panel tilt, and weighted by daily photovoltaic potential using NASA's solar irradiance data.
Environmental Considerations
While Veracruz's location is generally favorable for solar energy production, there are some environmental factors to consider. The region experiences a tropical climate with a pronounced rainy season, typically from June to October. Heavy rainfall and potential tropical storms during this period may temporarily reduce solar panel efficiency.
To mitigate these challenges, installing robust mounting systems that can withstand strong winds is crucial. Additionally, implementing effective drainage systems around the solar array can prevent water accumulation. Regular cleaning and maintenance, especially after heavy rains or storms, will help ensure optimal performance.
Another factor to consider is the potential for high humidity levels, which can lead to condensation on solar panels. Using high-quality, weather-resistant panels and ensuring proper ventilation can help address this issue. Despite these challenges, the overall climate in Veracruz remains highly conducive to solar energy production, making it an ideal location for solar PV installations.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Mexico by location

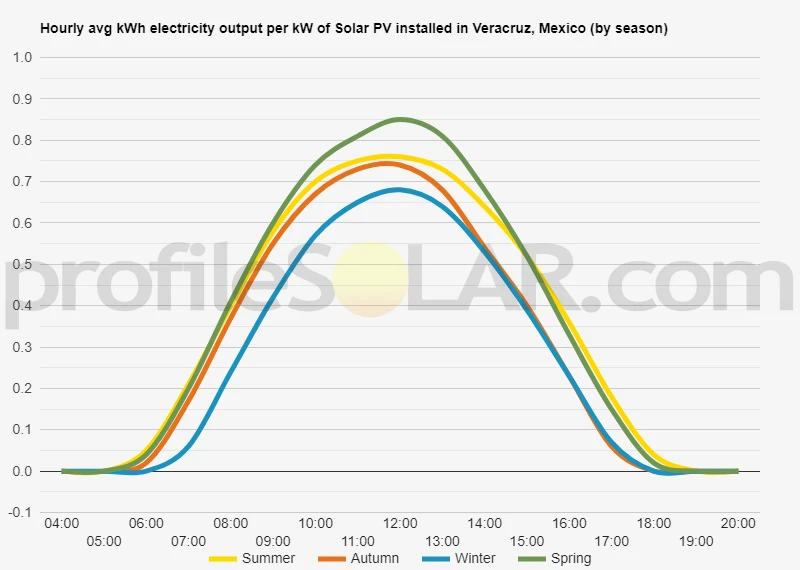

Solar output per kW of installed solar PV by season in Veracruz
Seasonal solar PV output for Latitude: 19.2139, Longitude: -96.2198 (Veracruz, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 17° South in Veracruz, Mexico
To maximize your solar PV system's energy output in Veracruz, Mexico (Lat/Long 19.2139, -96.2198) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Veracruz, Mexico
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Veracruz, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 3° South in Summer | 25° South in Autumn | 35° South in Winter | 12° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Veracruz, Mexico
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Veracruz, Mexico.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Veracruz, Mexico
The topography around Veracruz, Mexico, is quite diverse and interesting. The city itself is situated on the coast of the Gulf of Mexico, with relatively flat terrain near the shoreline. As you move inland from Veracruz, the landscape begins to change dramatically.
To the west of Veracruz, the land starts to rise gradually, transitioning into rolling hills and eventually into more mountainous terrain. This is part of the eastern edge of the Sierra Madre Oriental mountain range. The elevation increases quite rapidly as you move further inland, with some peaks reaching heights of over 5,000 feet within just 50 miles of the coast.
To the north and south of Veracruz, the coastline stretches for many miles, characterized by sandy beaches, lagoons, and coastal plains. These areas are generally low-lying and relatively flat, with some small hills and gentle slopes scattered throughout the region.
Regarding areas nearby that would be most suited for large-scale solar PV (photovoltaic) installations, there are a few promising options to consider. The coastal plains to the north and south of Veracruz could be suitable locations, as they offer large, open areas with relatively flat terrain. These regions typically receive ample sunlight throughout the year, which is crucial for solar energy production.
Another potential area for solar PV development would be the gently sloping lands just inland from the coast. These areas, while not completely flat, still offer sufficient space and stability for large-scale solar installations. The slight elevation might even be advantageous, as it could reduce the risk of flooding and provide better exposure to sunlight.
However, it's important to note that the more mountainous regions to the west, while potentially offering good sun exposure, might be less suitable for large-scale solar farms due to the challenging terrain and potential ecological concerns. The steep slopes and varied elevations would make construction and maintenance more difficult and expensive.
In conclusion, the most promising areas for large-scale solar PV near Veracruz would likely be the coastal plains and the gently sloping inland areas, where there's a good balance of available space, suitable terrain, and abundant sunlight.
Mexico solar PV Stats as a country
Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Mexico?
Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
