Location estimate

Villahermosa

Tabasco · Mexico

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.57

kWh/day

Autumn

5.27

kWh/day

Winter

4.84

kWh/day

Spring

6.53

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Villahermosa, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.57 6.57 × 1 kWp = 6.57 kWh/day
Autumn 5.27 5.27 × 1 kWp = 5.27 kWh/day
Winter 4.84 4.84 × 1 kWp = 4.84 kWh/day
Spring 6.53 6.53 × 1 kWp = 6.53 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.57
Autumn · kWh/day
5.27
Winter · kWh/day
4.84
Spring · kWh/day
6.53

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 16 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
16°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
2°South
Autumn
Sep, Oct, Nov
23°South
Winter
Dec, Jan, Feb
33°South
Spring
Mar, Apr, May
11°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Villahermosa, Tabasco, Mexico.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 2 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

2° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 23 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

23° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 33 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

33° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 11 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

11° tilt · South

Illustrative direction; exact azimuth not recorded.

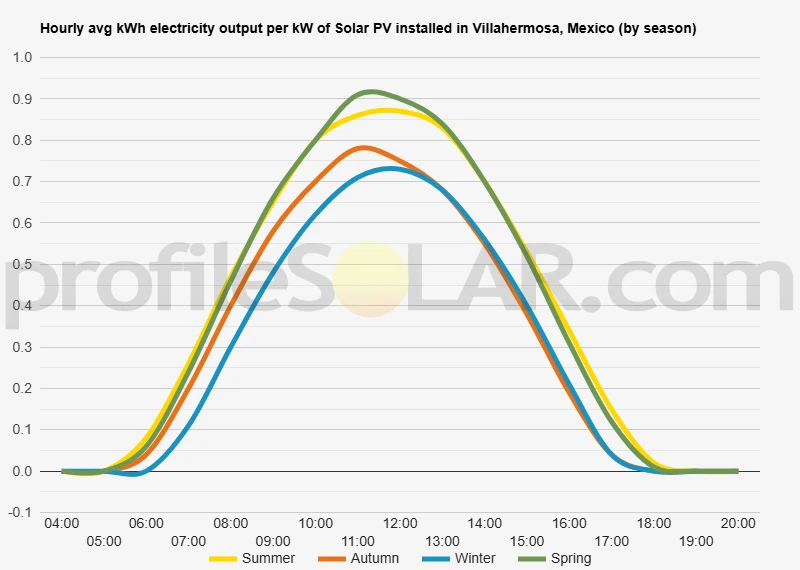

Historical hourly-by-season solar output chart for Villahermosa, Mexico. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Villahermosa, Mexico

Hourly profiles by season — Villahermosa, Mexico · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Villahermosa, Mexico · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Villahermosa

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.41 m

Proportional side viewDesign sun: ≈ 48.54° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.49 m
Added margin
≈ 0 m
Gap including margin
≈ 0.49 m
Panel horizontal footprint
≈ 1.92 m
Panel vertical rise
≈ 0.55 m
Pitch before margin
≈ 2.41 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
16°
Added margin
0 m
Latitude from the catalogue
18.008400000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.9225233918766378 m
Panel vertical rise
0.5512747116339983 m
Calculated clear gap
0.48700984964776833 m
Pitch before margin
2.409533241524406 m
Gap including margin
0.48700984964776833 m
Row pitch including margin
2.409533241524406 m
Design solar elevation
48.54181715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Villahermosa

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Villahermosa, Mexico presents a moderately favorable location for year-round solar energy generation, though it faces some significant challenges typical of tropical coastal regions. Located in the humid tropics of Tabasco state, this area experiences consistent sunlight throughout most of the year, with energy production varying more between wet and dry seasons than traditional temperature-based seasons.

Read the full article

<h3>Solar Energy Production Potential</h3> The solar energy output at Villahermosa shows notable seasonal variation. Summer delivers the highest production at 6.57 kWh per day per kW of installed capacity, while spring follows closely with 6.53 kWh per day. These represent the optimal months for solar generation when the sun's angle and weather conditions align most favorably. Autumn and winter show reduced output, with autumn generating 5.27 kWh per day and winter producing the lowest yield at 4.84 kWh per day per kW installed. Despite this winter dip, the location maintains reasonable productivity year-round due to its tropical latitude. Our year-round fixed-panel reference in Villahermosa is 16 degrees facing South, using output-weighted simplified solar geometry. <h3>Environmental and Weather Challenges</h3> Villahermosa faces several significant environmental factors that can impede solar energy production. The region's tropical climate brings high humidity and frequent cloud cover, particularly during the wet season, which can substantially reduce solar irradiance reaching the panels. Heavy rainfall is another major concern, as this coastal area experiences intense tropical storms and potentially hurricane activity. These weather events can damage installations and create extended periods of reduced sunlight. The high humidity also accelerates corrosion of metal components and can lead to faster degradation of electrical connections. The combination of heat and humidity creates an environment prone to rapid vegetation growth, which can shade panels if not properly managed. The actual equipment exposure depends on its site within this inland river-plain setting. <h3>Waterways and Installation Layout</h3> Villahermosa’s rivers, lagoons and low-lying ground make water movement central to a ground-mounted layout. Access routes and electrical equipment placement depend on the actual drainage and flood conditions. Maintenance methods and weather ratings follow the chosen equipment and exposure. Coatings and regular cleaning do not remove cloud cover or establish long-term reliability; cleaning needs depend on rainfall, soiling and tilt.

Topography around Villahermosa

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

<h3>Topography Around Villahermosa</h3> Villahermosa sits in the heart of Tabasco state in southeastern Mexico, positioned within the vast coastal plains that characterize this region of the Gulf of Mexico. The city itself rests surrounded by predominantly flat terrain that extends in all directions. This low-lying landscape forms part of the broader Grijalva River delta system, creating an environment dominated by wetlands, lagoons, and meandering waterways. The topography immediately surrounding Villahermosa is remarkably uniform, with small changes in local level. The landscape has been shaped by centuries of river deposits from the Grijalva and Usumacinta river systems, resulting in fertile alluvial soils that support extensive agricultural activities. These plains stretch northward toward the Gulf of Mexico coast, maintaining their flat character throughout. Moving inland from Villahermosa, the terrain begins a gradual ascent toward the foothills of the Sierra Madre de Chiapas mountain range to the south and southeast. However, this transition occurs over considerable distances, with the land rising slowly and steadily rather than through dramatic elevation changes. The immediate surroundings remain predominantly flat to gently rolling. <h3>Water Features and Drainage</h3> The region's topography is heavily influenced by its extensive water network. Numerous rivers, streams, and artificial channels crisscross the landscape, creating a complex drainage pattern that reflects the area's position within one of Mexico's most significant river deltas. These waterways have carved shallow valleys and created natural levees, but the overall relief remains minimal. Seasonal flooding is a characteristic feature of this topography, as the flat terrain and proximity to major rivers mean that water tends to spread across wide areas during periods of heavy rainfall. This natural flooding cycle has shaped both the physical landscape and human settlement patterns throughout the region. <h3>River-Plain Layout</h3> The waterways, wetlands and small natural levees around Villahermosa give this otherwise level landscape important local differences. A slightly raised surface may still receive runoff, and distance from the river does not establish flood safety. Ground conditions, drainage, access and existing uses need to be considered together. The northwestern plains or land south and southwest of the city cannot be treated as stable, well-drained development zones from this broad terrain description alone.

Technical location reference

Approximate map point used for Villahermosa, Mexico

This coordinate is the calculation reference for Villahermosa, Mexico. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
18.008400000000000000, -92.859200000000000000
Originally displayed coordinate
lat18.0084 / long-92.8592

How the estimate works

How this Villahermosa estimate was calculated

Here is how I calculated the location estimate for Villahermosa, Mexico.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Villahermosa Location estimate includes and leaves out

Use the Villahermosa figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
