Xalatlaco, México, Mexico presents excellent conditions for year-round solar energy generation. Located in the tropics at coordinates 19.1822, -99.4238, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Output Performance

The solar energy production data for Xalatlaco shows strong performance across all seasons. Spring emerges as the peak generation period, delivering an impressive 7.24 kWh per day per kW of installed solar capacity. Winter follows closely with 5.89 kWh/day, while summer produces 5.73 kWh/day and autumn generates 5.49 kWh/day. Spring represents the ideal time for solar generation at this location, likely due to optimal sun angles and clearer atmospheric conditions before the wet season intensifies. The relatively high winter production of 5.89 kWh/day demonstrates the location's year-round viability, as this figure exceeds what many temperate regions achieve during their peak summer months.

Optimal Panel Configuration

For maximum year-round energy production at Xalatlaco, México, solar panels should be installed at a fixed tilt angle of 19 degrees facing south. This angle is calculated based on the location's latitude and accounts for seasonal variations in the sun's path, weighted by solar irradiance data and Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Xalatlaco:

• Seasonal rainfall and cloud cover: The tropical wet season typically brings increased cloud coverage and frequent afternoon thunderstorms, which can reduce solar irradiance during peak production hours
• Dust and particulate accumulation: Dry season conditions may lead to dust buildup on panel surfaces, reducing efficiency
• High humidity levels: Tropical humidity can affect electrical connections and potentially lead to corrosion over time
• Altitude considerations: Xalatlaco sits at moderate elevation, which while generally beneficial for solar production due to thinner atmosphere, may experience more variable weather patterns

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective: Regular cleaning schedules become essential, particularly during dry periods when dust accumulation peaks. Installing panels with adequate spacing allows for proper air circulation, helping to manage humidity-related issues and prevent overheating. Selecting high-quality mounting hardware with corrosion-resistant materials protects against humidity damage. Proper electrical enclosures rated for tropical conditions safeguard sensitive components from moisture infiltration. Implementing micro-inverters or power optimizers can help minimize production losses when partial shading occurs from passing clouds during the wet season. Additionally, installing panels with anti-reflective coatings and self-cleaning surfaces can reduce maintenance requirements while maintaining optimal light absorption. The consistently strong solar output figures across all seasons indicate that Xalatlaco offers excellent potential for solar energy generation, making it a highly suitable location for both residential and commercial solar installations when proper preventative measures are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

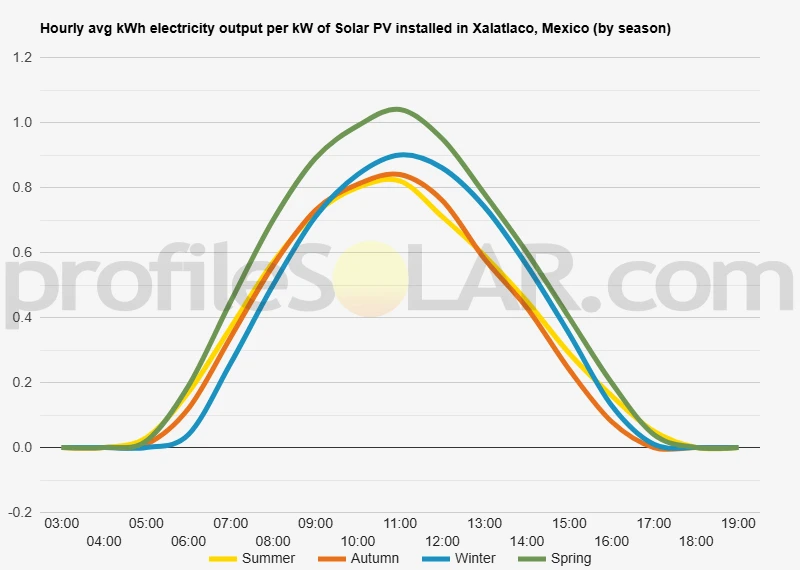

Solar output per kW of installed solar PV by season in Xalatlaco

Seasonal solar PV output for Latitude: 19.1822, Longitude: -99.4238 (Xalatlaco, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° South in Xalatlaco, Mexico

To maximize your solar PV system's energy output in Xalatlaco, Mexico (Lat/Long 19.1822, -99.4238) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xalatlaco, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xalatlaco, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	34° South in Winter	13° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xalatlaco, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xalatlaco, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xalatlaco, Mexico

Topographical Features of Xalatlaco

Xalatlaco sits within the mountainous terrain of the State of Mexico, positioned in the southern portion of the Trans-Mexican Volcanic Belt. The municipality occupies an elevated location at approximately 2,600 meters above sea level, nestled among rolling hills and volcanic formations that characterize this region of central Mexico. The landscape features a series of ridges and valleys created by ancient volcanic activity, with the terrain generally sloping from higher elevations in the south toward lower areas in the north. The immediate surroundings of Xalatlaco present a mix of forested hillsides and agricultural valleys. Dense pine and oak forests cover many of the steeper slopes, while the gentler terrain has been converted to farmland and pasture over centuries of human settlement. The area experiences a temperate climate due to its elevation, with the topography creating microclimates in different valleys and on various slope aspects. Several prominent peaks rise above the general landscape in the vicinity, including volcanic cones and eroded remnants of older geological formations. These elevated areas create a backdrop of undulating terrain that extends in all directions from the town center. The drainage patterns follow the natural contours, with small streams and seasonal watercourses flowing through the valleys toward larger river systems.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations would be found on the gentler slopes and plateau areas to the north and northeast of Xalatlaco. These areas offer several advantages including reduced gradients that minimize construction challenges and grading requirements. The terrain in these directions tends to be more open with fewer trees, reducing the need for extensive clearing operations. South-facing slopes throughout the region would provide excellent solar exposure, particularly those with gradients between five and fifteen degrees. These moderate inclines offer natural drainage while maintaining accessibility for construction equipment and ongoing maintenance activities. Areas that have already been cleared for agriculture present immediate opportunities, as the land use transition would be less environmentally disruptive. The valleys immediately surrounding Xalatlaco, while relatively flat, may present challenges due to potential morning fog formation and cold air pooling that could affect panel efficiency during certain seasons. Higher elevation sites on the surrounding ridges would avoid these issues but would require more complex access roads and infrastructure development. Areas to the west and northwest show particular promise, where the topography transitions from the steeper volcanic terrain to more gradually rolling countryside. These locations combine favorable solar exposure with practical accessibility, while being far enough from the forested areas to minimize environmental concerns. The existing road network in these directions would also facilitate the transportation of materials and equipment during construction phases.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
