Xochitepec, Morelos, Mexico represents an excellent location for year-round solar energy generation. Located in the tropics at coordinates 18.7594°N, -99.2329°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the traditional temperature variations found in temperate climates.

Solar Energy Production Performance

The solar energy output data for Xochitepec shows strong performance across all seasons. Spring delivers the highest energy production at 7.68 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation at this location. Summer follows closely with 6.58 kWh/day per kW, while autumn and winter show slightly lower but still substantial output at 6.04 kWh/day and 5.96 kWh/day per kW respectively. This seasonal variation is relatively modest, with spring producing only about 29% more energy than the lowest-performing winter season. Such consistency makes Xochitepec an attractive location for solar installations, as energy production remains reliable throughout the year.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal angle to tilt solar panels is 18 degrees facing south to maximize total year-round production. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Xochitepec, Morelos, though most can be effectively managed with proper planning and installation techniques. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance when heavy cloud cover persists. Additionally, high humidity levels common in tropical regions can lead to moisture-related issues with electrical components if not properly protected. Dust and debris accumulation on solar panels can be accelerated by the combination of dry periods followed by humid conditions. The region may also experience occasional severe weather events typical of tropical areas, including heavy storms that could damage improperly secured installations.

Preventative Measures for Enhanced Performance

Several strategies can help maximize solar energy production despite these challenges:

• Install panels with adequate drainage systems and corrosion-resistant mounting hardware designed for high-humidity environments
• Use electrical components with enhanced weatherproofing and moisture seals rated for tropical conditions
• Implement regular cleaning schedules to remove dust, pollen, and organic debris that accumulate more rapidly in tropical climates
• Design mounting systems to withstand high winds and heavy rain loads typical of tropical storm events
• Consider slight panel tilting beyond the optimal 18 degrees to promote better water runoff and self-cleaning during rain

Despite these considerations, the consistently high solar output throughout the year makes Xochitepec a highly favorable location for solar energy generation, with the benefits far outweighing the manageable challenges posed by the tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

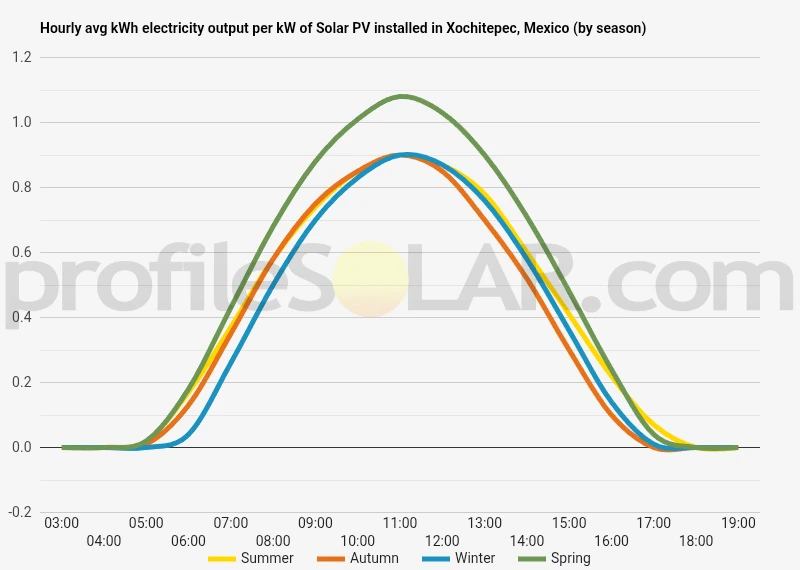

Solar output per kW of installed solar PV by season in Xochitepec

Seasonal solar PV output for Latitude: 18.7594, Longitude: -99.2329 (Xochitepec, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Xochitepec, Mexico

To maximize your solar PV system's energy output in Xochitepec, Mexico (Lat/Long 18.7594, -99.2329) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Xochitepec, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Xochitepec, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	25° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Xochitepec, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Xochitepec, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Xochitepec, Mexico

Topographical Features of Xochitepec

Xochitepec sits in the southern portion of the state of Morelos, nestled within the central Mexican plateau at an elevation of approximately 1,200 meters above sea level. The terrain around this municipality is characterized by gently rolling hills and relatively flat valleys that form part of the broader Trans-Mexican Volcanic Belt. The landscape transitions from the higher elevations of the Sierra de Chichinautzin to the north toward the warmer, lower-lying areas that extend southward into Guerrero state. The immediate vicinity of Xochitepec features a mix of agricultural flatlands and moderate slopes, with the topography becoming more pronounced as one moves toward the surrounding mountain ranges. The area benefits from well-drained soils and a relatively stable geological foundation, typical of the volcanic origins that shaped much of central Mexico. Small seasonal streams and arroyos cut through the landscape, creating minor undulations but generally maintaining the region's characteristic gentle contours.

Solar Development Suitability

The expansive agricultural plains stretching eastward and southward from Xochitepec present the most promising opportunities for large-scale solar photovoltaic installations. These areas offer extensive flat to gently sloping terrain with minimal obstructions, allowing for optimal panel positioning and efficient maintenance access. The relatively open landscape in these directions provides excellent solar exposure throughout the day without significant shading from topographical features. The valley floors and broader agricultural zones surrounding the municipality would be particularly well-suited for utility-scale solar farms. These areas typically feature gradual slopes of less than five degrees, which is ideal for solar panel arrays while still allowing for proper drainage. The existing agricultural infrastructure in these regions often includes road networks that could facilitate construction and ongoing operations. Areas to the immediate north and northwest present more challenging conditions due to the rising terrain toward the Sierra de Chichinautzin. While these elevated areas might receive excellent solar exposure, the steeper grades and more complex topography would significantly increase development costs and engineering challenges. The southern and eastern approaches toward the Guerrero border offer the most consistent flat terrain, making them the prime candidates for large-scale solar development in the region.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
