Tonalá, Mexico represents an excellent location for year-round solar photovoltaic energy generation. Positioned in the tropics at coordinates 16.0835°N, -93.7802°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate regions.

Solar Energy Output Performance

The solar energy production data for Tonalá shows strong and relatively consistent performance across all seasons. Spring emerges as the peak production period, generating 6.53 kWh per day per kW of installed solar capacity. Summer follows closely with 6.19 kWh/day per kW, while autumn and winter show slightly lower but still robust output at 5.45 and 5.42 kWh/day per kW respectively. This seasonal pattern reflects the tropical climate characteristics, where the highest solar production occurs during the dry season months of spring, when cloud cover is typically minimal and atmospheric conditions are clearest. The relatively modest variation between seasons - with only about a 20% difference between the highest and lowest production periods - demonstrates the location's reliability for consistent solar energy generation throughout the year.

Optimal Panel Configuration

For maximum year-round solar production at this Tonalá location, fixed solar panels should be tilted at 15 degrees facing south. This relatively shallow angle is typical for locations closer to the equator, where the sun maintains a higher position in the sky throughout the year compared to higher latitudes.

Environmental Challenges and Mitigation Strategies

Several environmental factors in Tonalá could potentially impact solar energy production, though most can be effectively managed with proper installation practices. The tropical wet season presents the most significant challenge, bringing increased humidity, heavy rainfall, and more frequent cloud cover. While the seasonal production data already accounts for these weather patterns, the high humidity and occasional intense storms require specific installation considerations. Solar panels should be mounted with adequate drainage systems and slightly increased spacing to allow proper air circulation, which helps prevent moisture buildup and maintains cooling efficiency. Dust accumulation can be problematic during the dry season, particularly given Mexico's varied terrain and occasional dust storms. Regular cleaning schedules become essential, and installing panels at the recommended 15-degree tilt actually helps with natural rain-washing during wet periods. The coastal proximity of this region may introduce salt air concerns, requiring solar mounting systems and electrical components rated for corrosive environments. Marine-grade aluminum frames and stainless steel hardware should be prioritized to ensure long-term durability.

Recommended Installation Practices

To maximize energy production and system longevity in Tonalá's tropical environment, several preventative measures should be implemented:

• Use corrosion-resistant mounting hardware and electrical components rated for high humidity environments
• Ensure proper drainage and ventilation around panel installations to prevent moisture accumulation
• Implement regular cleaning schedules, particularly during dry season months
• Install surge protection systems to guard against electrical storms common in tropical regions
• Select panels with strong wind load ratings to withstand potential severe weather events

Despite these environmental considerations, Tonalá's consistent solar resource makes it a highly favorable location for solar energy projects. The strong year-round production, with spring being the optimal generation period, combined with proper installation practices to address local environmental factors, positions this location as excellent for both residential and commercial solar applications.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

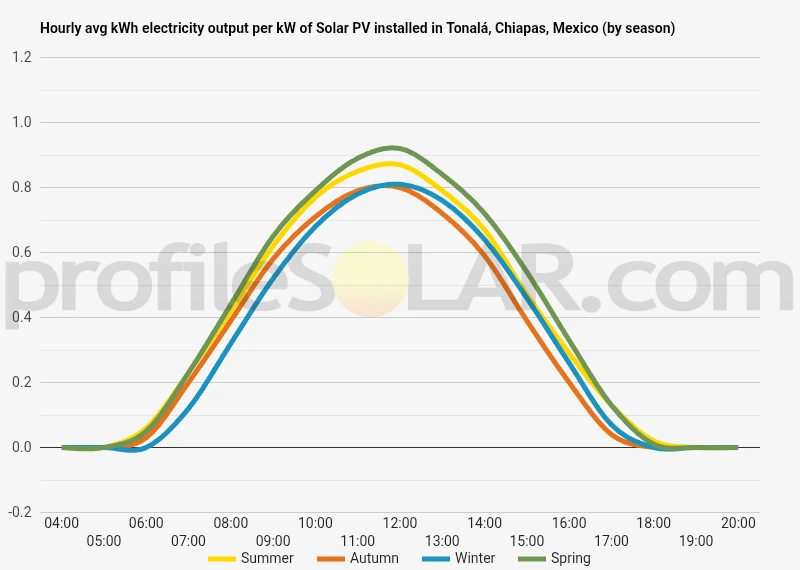

Solar output per kW of installed solar PV by season in Tonalá, Chiapas

Seasonal solar PV output for Latitude: 16.0835, Longitude: -93.7802 (Tonalá, Chiapas, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° South in Tonalá, Chiapas, Mexico

To maximize your solar PV system's energy output in Tonalá, Chiapas, Mexico (Lat/Long 16.0835, -93.7802) throughout the year, you should tilt your panels at an angle of 15° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tonalá, Chiapas, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tonalá, Chiapas, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
0° in Summer	22° South in Autumn	31° South in Winter	10° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tonalá, Chiapas, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tonalá, Chiapas, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tonalá, Chiapas, Mexico

Topographical Features Around Tonalá

Tonalá sits in the coastal plain region of Chiapas, Mexico, positioned between the Sierra Madre de Chiapas mountain range to the north and east, and the Pacific Ocean to the south. The immediate area around the city is characterized by relatively flat to gently rolling terrain, with elevations ranging from sea level along the coast to approximately 200 meters inland. This low-lying topography is typical of the Soconusco coastal plain, which extends along much of Chiapas' Pacific shoreline.

The landscape consists primarily of alluvial deposits carried down from the volcanic highlands over thousands of years. These sedimentary plains create a generally uniform topography with minimal steep gradients or significant elevation changes within a 20-kilometer radius of the city center. Small hills and ridges do punctuate the otherwise flat terrain, but these features rarely exceed 100 meters in height above the surrounding plain.

Moving inland from Tonalá toward the northeast and north, the topography begins to transition into the foothills of the Sierra Madre de Chiapas. This mountainous region rises dramatically from the coastal plain, with peaks reaching over 2,000 meters in elevation. The transition zone between the flat coastal plain and the steep mountain slopes creates varied microtopography with gentle to moderate slopes that could be suitable for certain types of development.

Drainage Patterns and Water Features

The region's drainage system flows generally from the mountains toward the Pacific Ocean, creating a network of rivers and streams that cross the coastal plain. Several seasonal waterways and permanent streams traverse the area around Tonalá, though most maintain relatively shallow channels due to the gentle topographic gradients. These water features create minor undulations in the otherwise flat terrain but do not significantly alter the overall topographical character of the region.

Wetland areas and seasonal flooding zones exist closer to the coast, where the extremely flat topography and proximity to sea level create conditions for water accumulation during the rainy season. These areas typically feature very minimal elevation changes and may experience temporary inundation during periods of heavy precipitation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Tonalá would be found on the stable, well-drained portions of the coastal plain, particularly in areas situated 5 to 15 kilometers inland from the immediate coastline. These zones offer the ideal combination of flat to gently sloping terrain, adequate drainage, and distance from flood-prone coastal areas.

The agricultural lands northeast and northwest of Tonalá present excellent opportunities for solar development due to their consistent topography and existing cleared status. These areas feature gradual slopes of less than 5 degrees, which are optimal for solar panel installation and maintenance access. The terrain in these zones requires minimal grading or site preparation, reducing development costs and environmental impact.

Areas closer to the foothills of the Sierra Madre de Chiapas, while offering some topographical variety, may present challenges for large-scale installations due to increased slope angles and potential drainage issues during heavy rainfall events. However, some of the gentler transitional slopes between the mountains and coastal plain could accommodate solar installations with appropriate engineering and site design.

The immediate coastal zone, while topographically flat, presents challenges including potential salt air corrosion, higher humidity levels, and vulnerability to coastal weather events. Therefore, the inland agricultural plains represent the most practical and economically viable locations for substantial solar photovoltaic development in the Tonalá region.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
