San Pedro, Mexico, located in the Northern Sub Tropics at coordinates 25.8285°N, -102.9873°W, presents a highly favorable location for year-round solar photovoltaic energy generation. The seasonal solar output data demonstrates consistently strong performance throughout all four seasons.

Seasonal Solar Performance

The location shows excellent solar energy potential with notable seasonal variations. Spring emerges as the peak season, delivering 7.80 kWh per day per kW of installed solar capacity. Summer follows closely with 7.27 kWh per day per kW, making these two seasons the most productive for solar energy generation. Autumn production drops to 5.76 kWh per day per kW, while winter shows the lowest output at 5.03 kWh per day per kW. Despite this seasonal variation, even the winter months maintain respectable solar production levels, indicating that San Pedro offers reliable year-round solar generation potential.

Optimal Panel Configuration

For maximum year-round solar production at this location, solar panels should be installed at a fixed tilt angle of 23 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles at the latitude, determining daily optimal panel tilt, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Factors

Several environmental factors in this region of Mexico could potentially impact solar production and require consideration during installation:

• Dust and Sand Accumulation: The semi-arid climate typical of northern Mexico can lead to significant dust buildup on solar panels, reducing efficiency by 10-25% if left unaddressed
• Extreme Temperature Variations: High summer temperatures can reduce panel efficiency, while thermal cycling between day and night temperatures may stress equipment
• Hail and Severe Weather: The region occasionally experiences severe thunderstorms with large hail that could damage solar installations
• UV Degradation: Intense solar radiation at this latitude accelerates material degradation in panel components and mounting systems

Preventative Measures for Enhanced Production

To maximize solar energy production and system longevity at San Pedro, several preventative measures should be implemented during installation: Regular cleaning systems or schedules are essential to combat dust accumulation. Installing automated cleaning systems or planning monthly manual cleaning can maintain optimal panel efficiency. Choosing panels with anti-soiling coatings can also reduce dust adhesion. Proper ventilation spacing between panels and mounting surfaces helps manage high temperatures. Installing panels with adequate air circulation underneath allows for better heat dissipation and maintains higher efficiency during peak summer months. Impact-resistant tempered glass and robust mounting systems protect against hail damage. Selecting panels rated for severe weather conditions and using reinforced mounting hardware provides crucial protection during storms. UV-resistant materials for all system components, including wiring, connectors, and mounting hardware, ensure longer system life. Choosing equipment specifically rated for high-UV environments prevents premature degradation and maintains performance over the system's expected 25-year lifespan. Overall, San Pedro represents an excellent location for solar energy generation, with strong year-round production potential that can be optimized through proper installation techniques and preventative measures addressing local environmental challenges.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

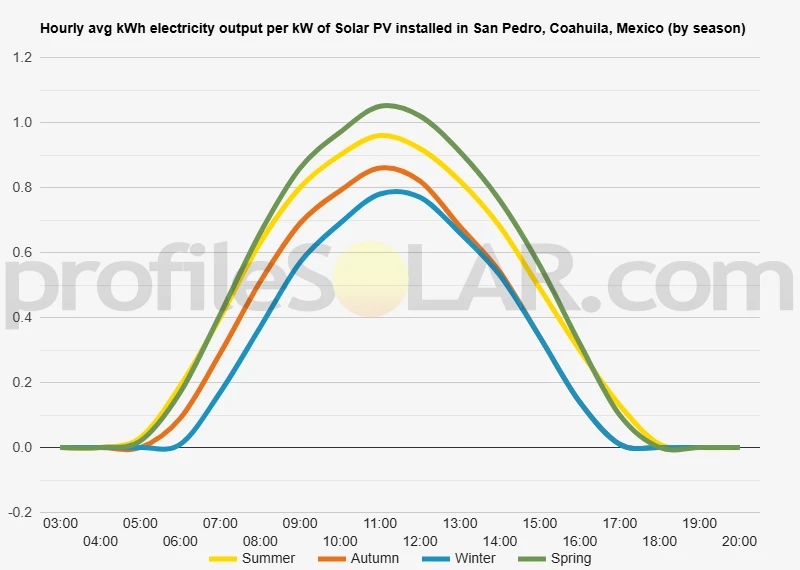

Solar output per kW of installed solar PV by season in San Pedro, Coahuila

Seasonal solar PV output for Latitude: 25.8285, Longitude: -102.9873 (San Pedro, Coahuila, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in San Pedro, Coahuila, Mexico

To maximize your solar PV system's energy output in San Pedro, Coahuila, Mexico (Lat/Long 25.8285, -102.9873) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Pedro, Coahuila, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Pedro, Coahuila, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	31° South in Autumn	41° South in Winter	19° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Pedro, Coahuila, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Pedro, Coahuila, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Pedro, Coahuila, Mexico

Topography of San Pedro, Mexico

San Pedro is located in the state of Coahuila in northern Mexico, positioned within the expansive Chihuahuan Desert region. The terrain around this area is characterized by relatively flat to gently rolling plains that stretch across much of the surrounding landscape. These plains are punctuated by scattered low hills and occasional mesa formations that rise modestly above the general elevation of the region.

The elevation in and around San Pedro sits at approximately 1,100 meters above sea level, placing it on a high desert plateau. This elevated position contributes to the area's arid climate and clear atmospheric conditions. The landscape is typical of the Mexican Plateau, featuring broad valleys separated by low mountain ranges and isolated peaks.

To the west and southwest of San Pedro, the terrain becomes more varied with the presence of the Sierra Madre Oriental mountain system's eastern foothills. These elevated areas create a more complex topographical profile with steeper slopes and deeper valleys. However, the immediate vicinity of San Pedro itself remains relatively level, making it part of the extensive flat lands that characterize much of northern Coahuila.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around San Pedro would be the extensive flat plains that dominate the landscape to the north, east, and south of the town. These areas offer several advantages for solar development, including minimal grading requirements, reduced construction costs, and optimal panel positioning without the complications of steep terrain.

The broad valleys and mesa tops in the region provide excellent opportunities for solar farms, as they typically feature stable ground conditions and good accessibility for construction equipment and ongoing maintenance operations. The relatively uniform elevation across these plains ensures consistent solar exposure without significant shading issues that might arise from varied topography.

Areas to avoid for large-scale solar development would include the more mountainous terrain to the west and southwest, where the foothills of the Sierra Madre Oriental create steeper slopes and more challenging installation conditions. Additionally, any locations within existing agricultural valleys that might have irrigation infrastructure or prime farming soil would be less desirable from both practical and land-use perspectives.

The desert environment surrounding San Pedro offers vast expanses of undeveloped land that could accommodate substantial solar installations. The combination of flat topography, minimal vegetation, and low population density in much of the surrounding area creates ideal conditions for utility-scale solar projects that require large contiguous areas for optimal efficiency and economic viability.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
