Solar Energy Potential in Zimapan, Hidalgo, Mexico

Zimapan, Hidalgo, located in central Mexico at 20.6828° N, -99.376° W, offers promising conditions for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight hours. The solar energy production potential in Zimapan demonstrates interesting seasonal patterns. Spring stands out as the most productive season, yielding an impressive 7.45 kWh per day for each kilowatt of installed solar capacity. Summer follows with a solid 6.22 kWh/day, while winter produces 5.69 kWh/day, and autumn generates 5.57 kWh/day per installed kilowatt.

Seasonal Variations and Optimal Generation Periods

Spring clearly emerges as the prime time for solar energy generation in Zimapan, Hidalgo, with production levels significantly higher than other seasons. This spring peak is likely related to clear skies, moderate temperatures, and optimal sun angles during this period. Summer maintains strong production despite being slightly lower than spring, possibly due to occasional cloud cover during the rainy season. The autumn and winter months, while producing less energy than spring and summer, still maintain respectable output levels that exceed what many non-tropical locations achieve during their winter months. This relatively balanced year-round production makes Zimapan an attractive location for solar PV installation with less seasonal variability than locations at higher latitudes.

Optimal Panel Installation

For fixed solar panel installations in Zimapan, Hidalgo, the ideal tilt angle to maximize year-round energy production is 20 degrees facing South. This carefully calculated angle optimizes the panels' exposure to the sun throughout the year, accounting for the location's specific latitude and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Zimapan:

• Dust accumulation: The semi-arid climate in parts of central Mexico can lead to dust buildup on panels, reducing efficiency. Regular cleaning maintenance should be implemented.
• Seasonal rainfall: The summer rainy season may temporarily reduce production on stormy days, though rain can help naturally clean panels.
• High temperatures: Summer heat can slightly reduce panel efficiency. Ensuring adequate airflow behind panels during installation can help mitigate this effect.
• Potential for hail in some storms: Using impact-resistant panels and appropriate insurance coverage is advisable.

Preventative measures should include installing panels with sufficient elevation from the ground to reduce dust accumulation, implementing a regular cleaning schedule, ensuring proper spacing for ventilation to combat efficiency losses from high temperatures, and selecting components rated for tropical conditions. A monitoring system will also help identify any unexpected drops in production that might indicate maintenance needs. Overall, Zimapan presents favorable conditions for solar PV installation with good year-round production potential and manageable environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 358 locations across Mexico. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Mexico by location

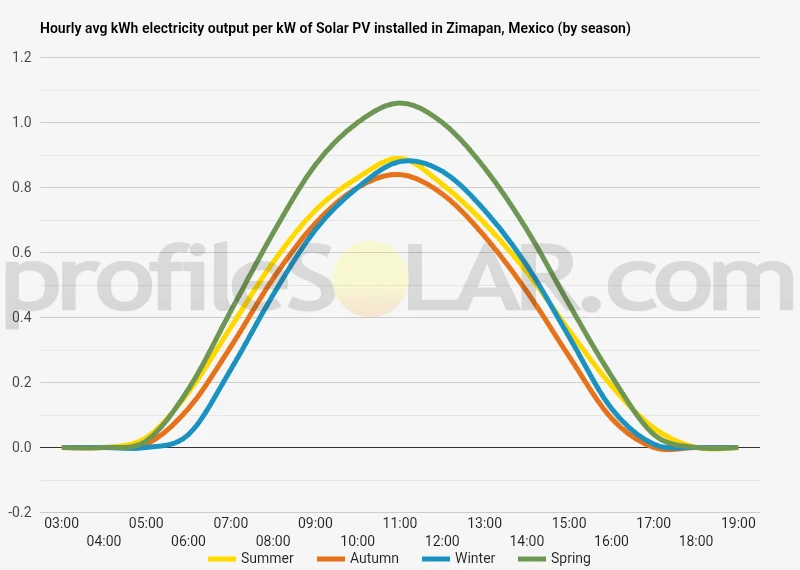

Solar output per kW of installed solar PV by season in Zimapan

Seasonal solar PV output for Latitude: 20.6828, Longitude: -99.376 (Zimapan, Mexico), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° South in Zimapan, Mexico

To maximize your solar PV system's energy output in Zimapan, Mexico (Lat/Long 20.6828, -99.376) throughout the year, you should tilt your panels at an angle of 20° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Zimapan, Mexico

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Zimapan, Mexico. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	27° South in Autumn	36° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Zimapan, Mexico

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Zimapan, Mexico.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Zimapan, Mexico

The topography around Zimapan, Mexico presents a dramatic landscape characterized by mountainous terrain, deep valleys, and significant elevation changes. Located in the state of Hidalgo, Zimapan sits at approximately 1,800 meters above sea level in the Sierra Madre Oriental mountain range. The surrounding area features rugged mountains with steep slopes and numerous ridges that create a complex topographical profile. The region is marked by notable karst formations, with limestone being a predominant geological feature. This has resulted in interesting terrain variations including caves, sinkholes, and underground water systems. The Moctezuma River cuts through the area, creating deep canyons that further define the local topography. These canyons can reach depths of several hundred meters in places, highlighting the extreme vertical relief of the region.

Topographical Constraints and Opportunities

The mountainous nature of Zimapan creates both challenges and opportunities for solar development. The varied elevation and orientation of slopes means that some areas receive significantly different levels of solar exposure throughout the day and year. Northern slopes typically receive less direct sunlight in the northern hemisphere, while southern-facing slopes benefit from more consistent exposure. The region experiences a semi-arid climate, which is generally favorable for solar energy generation due to limited cloud cover throughout much of the year. However, the rugged terrain creates microclimates where fog or cloud formations might be more common in certain valleys or at specific elevations.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development near Zimapan, several areas present more favorable conditions than others. The plateaus and gentler slopes south of Zimapan offer promising locations. These areas combine relatively flat terrain (reducing construction costs and complexity) with good solar exposure due to their southern orientation. The valleys to the east and southeast of Zimapan, particularly those with wider floor plains, could also be suitable for solar development. While these areas might experience some shading during parts of the day due to surrounding mountains, they often offer accessible terrain with adequate space for larger installations. Areas to avoid would include the steepest mountain slopes, particularly those facing north, deep canyon bottoms that experience significant shading, and locations with dense vegetation that would require extensive clearing.

Infrastructural Considerations

Beyond pure topographical considerations, the presence of existing infrastructure plays an important role in determining optimal solar PV locations. Areas near Zimapan with proximity to existing power transmission lines would reduce the cost and environmental impact of connecting new solar facilities to the grid. The highway 85 corridor that runs through the region provides transportation access that would facilitate construction and maintenance of solar installations. Some of the mining areas around Zimapan, where land has already been disturbed by industrial activity, could present opportunities for solar development that minimizes additional environmental impact. These locations often have existing road access and may already be connected to power infrastructure. The combination of favorable topography, solar exposure, and infrastructure access makes the more level areas south and southeast of Zimapan particularly promising for large-scale solar PV development, despite the generally challenging mountain terrain that characterizes much of the surrounding region.

Mexico solar PV Stats as a country

Mexico ranks 18th in the world for cumulative solar PV capacity, with 7,040 total MW's of solar PV installed. This means that 3.20% of Mexico's total energy as a country comes from solar PV (that's 28th in the world). Each year Mexico is generating 55 Watts from solar PV per capita (Mexico ranks 50th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Mexico?

Yes, there are several incentives for businesses wanting to install solar energy in Mexico. The Mexican government offers a range of financial incentives and tax breaks for businesses that invest in renewable energy projects. These include grants, loans, and subsidies for the purchase of equipment and installation costs. Additionally, businesses can benefit from net metering programs which allow them to sell excess electricity back to the grid at a premium rate. Finally, businesses may also be eligible for additional benefits such as reduced import duties on solar equipment or accelerated depreciation allowances on investments in renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Mexico? Please reach out to us and help us keep this information current. Thanks!
