Solar PV Analysis of Aba, Nigeria
Aba, Abia State, Nigeria is a great place for solar energy production all year round due to its tropical location, which ensures consistent sunlight throughout most of the year. The amount of electricity that can be generated per kilowatt of installed solar varies slightly by season but remains high throughout the year: it's 4.54kWh/day in summer, 4.81kWh/day in autumn, 5.49kWh/day in winter and 5.23kWh/day in spring.
The best times for generating solar energy at this location are during the winter and spring seasons when the output is highest. However, even during summer and autumn, the output is still quite good.
In order to maximize total yearly production from solar panels at this location, it's recommended to tilt them at an angle of six degrees facing south.
However, there might be some local factors that could potentially affect solar production at this location such as weather conditions (like heavy rainfalls or dust storms), topographical features (like mountains or tall buildings casting shadows on panels), or environmental issues (like bird droppings or foliage growth).
To address these potential challenges:
1) Regular cleaning and maintenance of panels can help prevent issues like dust accumulation or bird droppings from reducing their efficiency.
2) If possible, installing panels away from shadows cast by tall structures like buildings or mountains can ensure they receive maximum sunlight.
3) Using a tracking system that follows the sun’s path across the sky can also help increase efficiency; however this would need to be weighed up against additional costs.
4) If heavy rainfall is common during certain periods of the year - while generally not damaging - it may reduce output temporarily so considering battery storage solutions could provide consistent power supply during these times.
Overall though Aba offers excellent conditions for producing renewable energy through solar PV systems with minor adjustments needed based on local conditions.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Nigeria by location

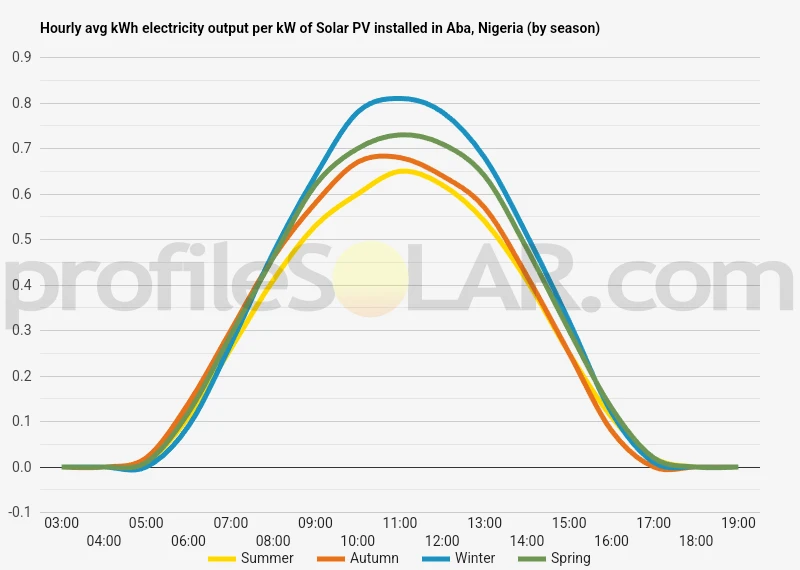

Solar output per kW of installed solar PV by season in Aba
Seasonal solar PV output for Latitude: 5.1069, Longitude: 7.3748 (Aba, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 6° South in Aba, Nigeria
To maximize your solar PV system's energy output in Aba, Nigeria (Lat/Long 5.1069, 7.3748) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Aba, Nigeria
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Aba, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 11° North in Summer | 12° South in Autumn | 21° South in Winter | 1° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Aba, Nigeria
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Aba, Nigeria.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Aba, Nigeria
Aba is located in the southeastern part of Nigeria, in Abia State. The topography of this region is generally flat and low-lying, with occasional hills and valleys. The area is part of the tropical rainforest zone of Nigeria, meaning it experiences a high amount of rainfall throughout the year.
Despite the high rainfall, Aba receives a good amount of sunlight throughout the year due to its location near the equator. This makes it suitable for solar PV installation. However, considering large-scale solar PV projects would require significant land space which might not be readily available within Aba city itself given its dense population.
Therefore, nearby rural areas with less population density and more open spaces would be more suited for such projects. Areas like Obingwa or Osisioma which are less densely populated compared to Aba could potentially be considered for large-scale solar PV installations.
It's also important to consider that despite being relatively flat overall, there are regions around Aba with slight elevations - these could provide even better conditions for solar panels as they can potentially receive more direct sunlight.
However, any decision on where exactly to place a large-scale solar project should take into account other factors as well including local climate conditions (such as cloud cover), availability and cost of land, proximity to existing power infrastructure etc., alongside topographical considerations.
As always before embarking on such projects thorough site surveys and feasibility studies should be conducted by professional renewable energy consultants or companies specializing in such services.
