Abakaliki, Ebonyi State, Nigeria, situated at 6.3293° N, 8.138° E, presents a favorable location for solar energy generation throughout the year. This tropical region benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Potential

The solar energy output in Abakaliki demonstrates impressive consistency across all meteorological seasons. Winter stands out as the most productive period, yielding 6.02 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.78 kWh/day, while autumn and summer produce 5.23 kWh/day and 4.82 kWh/day, respectively. This data indicates that Abakaliki is an excellent location for year-round solar energy production. The relatively small variation between seasons suggests a stable and reliable energy source throughout the year, with winter and spring being particularly favorable for solar generation.

Optimal Panel Installation

For fixed solar panel installations in Abakaliki, Ebonyi State, the ideal tilt angle to maximize year-round energy production is 7 degrees facing South. This slight tilt helps optimize the panels' exposure to sunlight throughout the year, accounting for the location's proximity to the equator and the Earth's elliptical orbit.

Environmental Considerations

While Abakaliki's location is generally advantageous for solar energy production, there are some environmental factors to consider: 1. Dust and particulate matter: The region's dry seasons can lead to increased dust in the air, which may accumulate on solar panels and reduce their efficiency. 2. Heavy rainfall: During the wet season, frequent and intense rainfall could temporarily reduce solar output. To mitigate these issues, the following preventative measures can be implemented:

• Regular cleaning and maintenance of solar panels to remove dust buildup
• Installation of rain sensors and automated cleaning systems
• Use of anti-soiling coatings on solar panels to minimize dust accumulation
• Proper drainage systems to prevent water accumulation on or around the panels

By addressing these factors, solar installations in Abakaliki can maintain high efficiency and maximize energy production throughout the year, taking full advantage of the location's excellent solar potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

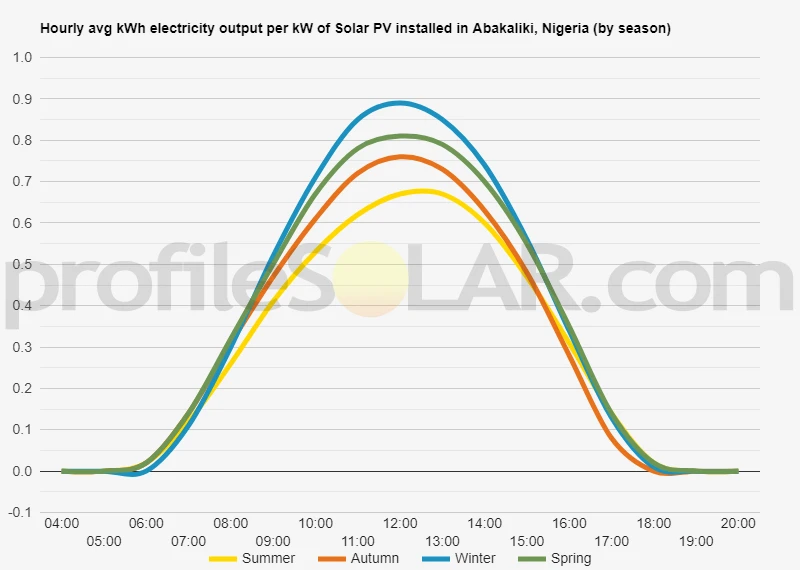

Solar output per kW of installed solar PV by season in Abakaliki

Seasonal solar PV output for Latitude: 6.3293, Longitude: 8.138 (Abakaliki, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° South in Abakaliki, Nigeria

To maximize your solar PV system's energy output in Abakaliki, Nigeria (Lat/Long 6.3293, 8.138) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Abakaliki, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Abakaliki, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	13° South in Autumn	22° South in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Abakaliki, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Abakaliki, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Abakaliki, Nigeria

The area around Abakaliki, Nigeria, is characterized by a relatively flat to gently rolling landscape. This region is part of the Cross River plain, which is a low-lying area in southeastern Nigeria. The topography consists mainly of undulating plains with occasional small hills and shallow valleys. The elevation in this area typically ranges from about 100 to 200 meters above sea level.

The terrain surrounding Abakaliki is primarily composed of sedimentary rocks, which have weathered over time to create a mostly level surface. The area is drained by several small rivers and streams, including the Ebonyi River, which flows near the city. These waterways have contributed to the formation of some shallow depressions and floodplains in the vicinity.

In terms of vegetation, the region around Abakaliki falls within the Guinea savanna zone, characterized by a mix of grasslands and scattered trees. However, much of the natural vegetation has been altered due to human activities such as agriculture and urbanization.

Areas Suitable for Large-Scale Solar PV

For large-scale solar photovoltaic (PV) installations, the most suitable areas near Abakaliki would be those that meet the following criteria:

1. Flat or gently sloping terrain: The relatively flat landscape in many parts of the region is ideal for solar PV installations, as it minimizes the need for extensive land preparation.
2. Open areas with minimal shading: Locations away from tall structures or dense vegetation that could cast shadows on the solar panels would be preferable.
3. Proximity to existing infrastructure: Areas close to roads and power transmission lines would be advantageous for easier construction and grid connection.
4. Non-agricultural land: To avoid conflicts with food production, areas that are not prime agricultural land would be more suitable.

Based on these criteria, some potentially suitable areas for large-scale solar PV installations near Abakaliki might include:

• Open grasslands or savanna areas to the north and east of the city, where the terrain is generally flatter and less developed.
• Cleared or degraded land that is not currently used for intensive agriculture, particularly in the outskirts of the city.
• Areas along major roads leading out of Abakaliki, where there is already some infrastructure in place.

It's important to note that a detailed site assessment would be necessary to determine the most appropriate locations for solar PV installations, taking into account factors such as local land use, environmental considerations, and community needs.
