Abeokuta, Ogun State, Nigeria, located at 7.1472°N, 3.3505°E, presents a promising location for solar energy generation throughout the year. Situated in the tropics, this area benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Solar Energy Potential

The solar energy output in Abeokuta demonstrates remarkable consistency across all seasons. Spring sees the highest production at 5.57 kWh per day for each kilowatt of installed solar capacity. Winter follows closely with 5.40 kWh/day, while autumn yields 5.34 kWh/day. Even during the summer months, which show slightly lower output, the region still produces a substantial 4.60 kWh/day. This year-round performance indicates that Abeokuta is an excellent location for solar PV installations. The minimal variation between seasons suggests that energy production remains relatively stable throughout the year, providing a reliable power source.

Optimal Panel Positioning

For fixed solar panel installations in Abeokuta, Ogun State, the ideal tilt angle to maximize year-round energy production is 7 degrees facing South. This slight tilt helps optimize the panels' exposure to sunlight throughout the year, accounting for the location's proximity to the equator and the Earth's elliptical orbit.

Environmental Considerations

While Abeokuta's climate is generally favorable for solar energy production, there are a few environmental factors to consider: 1. Dust and sand: The region's dry seasons can lead to increased dust and sand in the air, which may accumulate on solar panels and reduce their efficiency. 2. Heavy rainfall: During the wet season, frequent and intense rainstorms could temporarily reduce solar output. To mitigate these issues, implementers should consider the following preventative measures:

• Regular cleaning schedules for solar panels to remove dust and debris
• Installation of robust mounting systems to withstand strong winds during storms
• Use of high-quality, weather-resistant solar panels designed for tropical climates

By addressing these factors, solar installations in Abeokuta can maximize their energy production potential and provide a reliable, sustainable power source for the region.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

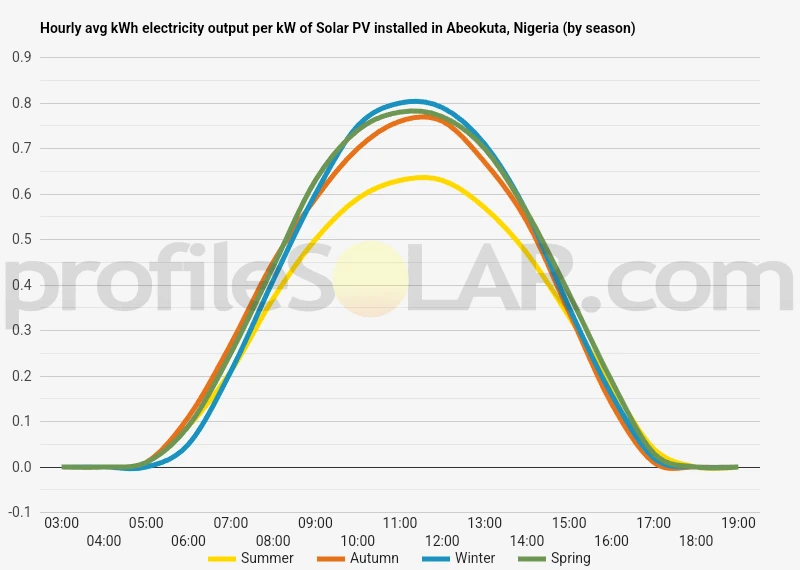

Solar output per kW of installed solar PV by season in Abeokuta

Seasonal solar PV output for Latitude: 7.1472, Longitude: 3.3505 (Abeokuta, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° South in Abeokuta, Nigeria

To maximize your solar PV system's energy output in Abeokuta, Nigeria (Lat/Long 7.1472, 3.3505) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Abeokuta, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Abeokuta, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	14° South in Autumn	23° South in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Abeokuta, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Abeokuta, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Abeokuta, Nigeria

Abeokuta, the capital city of Ogun State in southwestern Nigeria, is situated in a region characterized by diverse topography. The landscape surrounding Abeokuta is a mix of gently rolling hills, rocky outcrops, and expansive plains. The city itself is nestled among large granite hills, which have played a significant role in its history and development. The area around Abeokuta features a combination of savanna and tropical forest vegetation. To the north and east of the city, the terrain gradually transitions into more open grasslands and scattered woodlands. These areas are generally flatter and more uniform in elevation compared to the immediate vicinity of Abeokuta. To the south and west, the landscape becomes more undulating, with a series of low hills and shallow valleys. This region is part of the transition zone between the coastal plains and the interior highlands of Nigeria. The Ogun River, which flows through Abeokuta, has carved out a shallow valley in the surrounding terrain, creating fertile floodplains along its course.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar farms typically require flat or gently sloping land, good sun exposure, and minimal shading from natural or man-made obstacles. Based on the topography of the region, the areas to the north and east of Abeokuta appear to be the most promising for large-scale solar PV projects. These locations offer relatively flat terrain and open landscapes, which are conducive to the installation of extensive solar panel arrays. The savanna-like environment in these areas also means there are fewer tall trees or dense forests that could potentially shade the panels. The grasslands and scattered woodlands north and east of Abeokuta provide ample space for solar farms without the need for significant land clearing or earthworks. These areas also benefit from good sun exposure throughout the year, thanks to Nigeria's tropical climate and proximity to the equator. It's worth noting that while the hilly areas closer to Abeokuta might not be ideal for large-scale installations, they could still be suitable for smaller, distributed solar projects. The elevated positions of some hills could potentially offer good sun exposure, although careful site selection would be necessary to avoid shading issues. In conclusion, the diverse topography around Abeokuta presents both challenges and opportunities for solar energy development. While the rocky outcrops and hills near the city may limit large-scale installations in the immediate vicinity, the flatter, more open areas to the north and east show great promise for substantial solar PV projects.
