Calabar, Cross River State, Nigeria is a great place for generating solar energy all year round due to its location in the tropics. Here, sunlight is consistent throughout most of the year and seasons are often characterised more by wet and dry periods rather than significant temperature changes.

The amount of electricity that can be generated from each kilowatt (kW) of installed solar panels varies slightly with each season. In summer, you can expect around 4.05 kilowatt-hours (kWh) per day for every kW of installed solar panel. This increases to 4.54 kWh/day in autumn, reaches a high point at 5.45 kWh/day in winter before dropping slightly to 5.07 kWh/day in spring.

This means that while you'll get good results any time of year, winter and spring are particularly productive times for generating solar power at this location.

For fixed panel installations here, it's best to tilt the panels at an angle of six degrees towards the south to maximise total yearly production from your solar photovoltaic system.

As far as environmental or weather factors go which could potentially impede solar production – Calabar's tropical climate does mean there will be periods with heavy rainfall during the rainy season which could reduce daily output temporarily; however these short-lived decreases shouldn't significantly affect annual output overall if systems are designed correctly.

To deal with potential issues caused by heavy rain or debris such as leaves or dust covering panels - installing self-cleaning or easy-to-clean panels would help ensure they stay clear and able to produce maximum power; regular maintenance checks should also be scheduled so minor issues don't become major problems over time.

In conclusion: Calabar provides an excellent environment for effective use of solar energy throughout the entire year given appropriate installation design and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

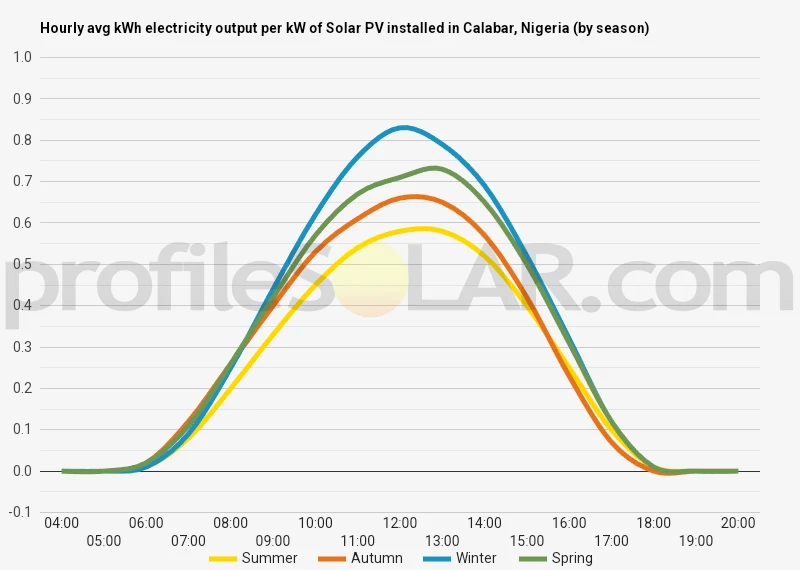

Solar output per kW of installed solar PV by season in Calabar

Seasonal solar PV output for Latitude: 4.9505, Longitude: 8.3141 (Calabar, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 4.05kWh/day in Summer.

Average 4.54kWh/day in Autumn.

Average 5.45kWh/day in Winter.

Average 5.07kWh/day in Spring.

Ideally tilt fixed solar panels 6° South in Calabar, Nigeria

To maximize your solar PV system's energy output in Calabar, Nigeria (Lat/Long 4.9505, 8.3141) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 4.9505, Longitude: 8.3141, the ideal angle to tilt panels is 6° South

Seasonally adjusted solar panel tilt angles for Calabar, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Calabar, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Calabar, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Calabar, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Calabar, Nigeria

Calabar, Nigeria is located in the southeastern part of the country near the coast. The topography around Calabar is fairly flat and low-lying, with a few hills in some areas. It is situated near the Cross River and surrounded by tropical rainforest.

The region receives ample sunlight throughout the year due to its location near the equator which makes it suitable for large-scale solar PV installation. However, there are also high levels of rainfall due to its coastal location and proximity to river, which may impact solar energy production.

For large-scale solar PV installations, areas that are relatively flat with minimal tree cover would be most suitable as these locations would have unobstructed access to sunlight. Areas further inland away from dense vegetation or forested regions could be more ideal for this purpose.

It's also important to consider infrastructure availability when planning such projects - areas closer to existing electrical grids or roads would reduce costs associated with transporting equipment and connecting generated power back into grid.

However, local climate conditions including cloud cover and precipitation patterns should also be taken into account when determining suitability for large-scale solar installations. Detailed feasibility studies should therefore be conducted before deciding on specific sites.

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
