Jos, Plateau State, Nigeria, located in the tropics at latitude 9.9203 and longitude 8.8991, presents a favorable environment for solar energy generation throughout the year. The city experiences consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Potential

The solar energy potential in Jos is impressive, with substantial electricity output per kilowatt of installed solar capacity across all meteorological seasons. Winter stands out as the most productive period, yielding an average of 6.50 kWh per day. Spring follows closely behind with 6.35 kWh/day, while autumn generates 5.95 kWh/day. Even during summer, which has the lowest output, solar panels still produce a respectable 4.87 kWh/day. These figures indicate that Jos is an excellent location for year-round solar energy production. The relatively small variation between seasons suggests a stable and reliable source of renewable energy throughout the year.

Optimal Panel Placement

For fixed solar panel installations in Jos, Plateau State, the ideal tilt angle to maximize year-round production is 11 degrees facing South. This angle takes into account the city's latitude, the Earth's elliptical orbit, and daily solar elevation angles to ensure optimal exposure to sunlight throughout the year.

Environmental Considerations

While Jos offers favorable conditions for solar energy production, there are some environmental factors to consider: 1. Dust and harmattan: During the dry season, Jos experiences the harmattan, a dry and dusty wind. This can lead to dust accumulation on solar panels, potentially reducing their efficiency. 2. Heavy rainfall: The wet season in Jos can bring intense rainfall, which may temporarily reduce solar output. To mitigate these issues, the following preventative measures can be taken:

• Regular cleaning: Implement a routine cleaning schedule for solar panels, especially during the harmattan season, to remove dust and maintain optimal efficiency.
• Protective coatings: Apply anti-soiling coatings to the panels to minimize dust accumulation and make cleaning easier.
• Proper drainage: Ensure proper drainage systems are in place to prevent water accumulation on or around the solar installation during heavy rainfall.
• Robust mounting: Use sturdy mounting systems that can withstand strong winds and heavy rain.

By addressing these environmental factors and implementing appropriate preventative measures, solar energy systems in Jos can maintain high levels of efficiency and productivity throughout the year, making it an ideal location for solar PV installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

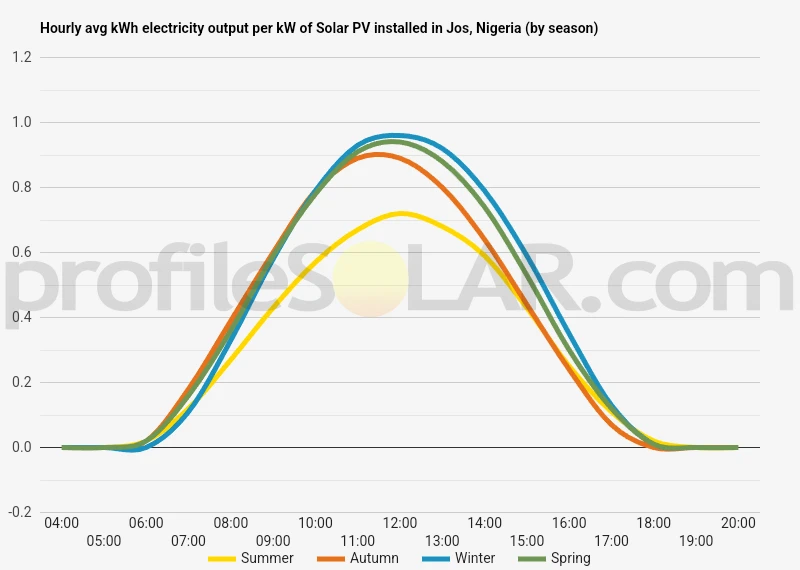

Solar output per kW of installed solar PV by season in Jos

Seasonal solar PV output for Latitude: 9.9203, Longitude: 8.8991 (Jos, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° South in Jos, Nigeria

To maximize your solar PV system's energy output in Jos, Nigeria (Lat/Long 9.9203, 8.8991) throughout the year, you should tilt your panels at an angle of 11° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jos, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jos, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jos, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jos, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jos, Nigeria

Jos, Nigeria, situated at coordinates 9.9203°N, 8.8991°E, is known for its unique topography that sets it apart from much of the surrounding region. The city is located on the Jos Plateau, a remarkable elevated area that rises distinctly above the surrounding plains. This plateau, with an average elevation of around 1,200 meters (4,000 feet) above sea level, creates a cooler and more temperate climate compared to other parts of Nigeria. The landscape around Jos is characterized by rolling hills, rocky outcrops, and expansive grasslands. The terrain is punctuated by numerous granite and basalt formations, remnants of ancient volcanic activity that shaped the region millions of years ago. These rock formations create a picturesque and sometimes rugged scenery, with some areas featuring dramatic cliffs and steep escarpments. The Jos Plateau is also home to several notable peaks, including Shere Hills, which reaches heights of over 1,800 meters (5,900 feet). These elevated areas offer panoramic views of the surrounding landscape and contribute to the region's distinct microclimate.

Suitability for Large-Scale Solar PV

When considering areas near Jos for large-scale solar photovoltaic (PV) installations, several factors come into play. The elevated nature of the Jos Plateau provides an advantage for solar energy production, as higher altitudes generally receive more intense solar radiation. The areas most suited for large-scale solar PV would likely be the expansive grasslands and gently sloping hills surrounding Jos. These open spaces offer ample room for solar panel arrays and generally have fewer obstructions that could cast shadows on the panels. The relatively flat terrain of these grasslands would also simplify the installation process and reduce construction costs. Regions to the north and east of Jos, where the plateau begins to descend towards the Bauchi Plains, could be particularly suitable. These areas tend to have less rocky terrain and more consistent, gentle slopes that are ideal for solar farm development. It's worth noting that while the Jos area receives abundant sunshine, the region's occasional dust storms and harmattan winds could impact solar panel efficiency. Therefore, sites with some natural windbreaks or areas where dust accumulation is less severe might be preferable for large-scale installations. Ultimately, detailed site surveys and environmental impact assessments would be necessary to determine the most suitable locations for solar PV projects. Factors such as proximity to existing power infrastructure, local land use patterns, and environmental considerations would all play crucial roles in site selection.
