Solar PV Analysis of Kaduna, Nigeria
Kaduna, Nigeria (latitude: 10.5207, longitude: 7.4386) is an excellent location for solar power generation due to its tropical climate and consistent sunlight throughout the year. The average daily electricity generated per kW of installed solar in each season is notable: 5.30 kWh/day in Summer, 6.37 kWh/day in Autumn, 6.58 kWh/day in Winter, and 6.90 kWh/day in Spring.
The ideal angle to tilt panels for a fixed panel installation at this location is 11 degrees South to optimize energy production from the sun's rays.
While Kaduna's climate generally supports efficient solar energy production year-round, there may be some environmental factors that could impede optimal performance during certain periods. Heavy rains or strong winds can reduce the amount of power generated from solar panels during these times.
To ensure greater energy production and mitigate potential issues caused by weather conditions such as heavy rainfall or strong winds, it is essential to implement preventative measures when installing solar panels at this location:
1) Choose high-quality solar panels with a sturdy frame that can withstand harsh weather conditions.
2) Ensure proper installation by using appropriate mounting systems designed for wind resistance.
3) Regularly inspect and maintain the system components to prevent damage or degradation due to environmental factors.
4) Consider installing backup battery storage systems that store excess energy produced during sunny days for use during periods of reduced sunlight.
By taking these precautions into account when installing a solar power system in Kaduna, Nigeria, one can maximize their renewable energy generation potential while minimizing adverse effects from local environmental factors on their overall efficiency and output capacity.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Nigeria by location

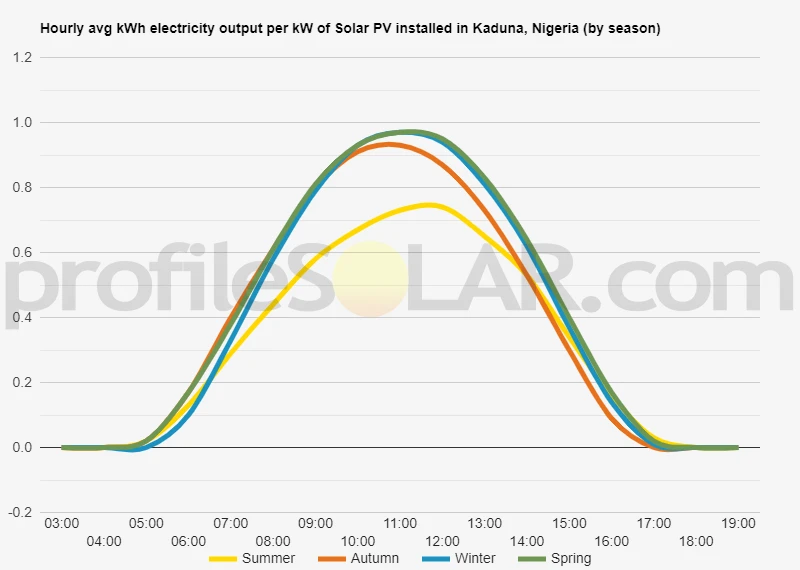

Solar output per kW of installed solar PV by season in Kaduna
Seasonal solar PV output for Latitude: 10.5207, Longitude: 7.4386 (Kaduna, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 11° South in Kaduna, Nigeria
To maximize your solar PV system's energy output in Kaduna, Nigeria (Lat/Long 10.5207, 7.4386) throughout the year, you should tilt your panels at an angle of 11° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Kaduna, Nigeria
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kaduna, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 6° North in Summer | 17° South in Autumn | 26° South in Winter | 4° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Kaduna, Nigeria
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kaduna, Nigeria.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Kaduna, Nigeria
Kaduna, Nigeria is located in a semi-arid region of the country with an elevation of 383 meters (1,257 feet). The terrain around Kaduna is generally flat and open with few hills or mountains. There are some areas that have small hills and valleys. The area has abundant sunshine throughout the year, making it well-suited for large-scale solar PV installations. Areas near Kaduna that would be most suitable for large-scale solar PV include open fields, rooftops, industrial zones, agricultural land and other areas with direct access to sunlight.
