Magodo II, located in Lagos, Nigeria, offers a promising environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than temperature fluctuations.

Solar Energy Potential

The solar energy potential in Magodo II is impressive, with average daily electricity output ranging from 4.46 kWh to 5.38 kWh per kilowatt of installed solar capacity, depending on the season. This consistency in solar production makes it an ideal location for year-round solar energy generation. Spring and winter months show the highest potential for solar energy production, with daily outputs of 5.38 kWh and 5.30 kWh respectively. Autumn follows closely with 5.20 kWh per day, while summer months still maintain a respectable 4.46 kWh daily output.

Optimal Panel Installation

For fixed panel installations in Magodo II, the ideal tilt angle to maximize year-round solar production is 7 degrees facing South. This angle has been calculated taking into account the location's latitude, daily solar elevation angles, and Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Environmental Considerations

While Magodo II presents favorable conditions for solar energy production, there are a few environmental factors to consider: 1. Dust and pollution: Lagos, being a large urban area, may experience higher levels of air pollution and dust, which can accumulate on solar panels and reduce their efficiency. 2. Heavy rainfall: During the wet season, frequent and intense rainfall may temporarily reduce solar output. To mitigate these factors, regular cleaning and maintenance of solar panels is essential. Installing panels at the recommended 7-degree tilt can also help with natural cleaning during rainfall. Additionally, using high-quality, weather-resistant solar equipment can ensure better performance in varying weather conditions. Overall, Magodo II's location offers excellent potential for solar energy production, with consistent sunlight throughout the year and only minor environmental challenges that can be effectively managed with proper installation and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

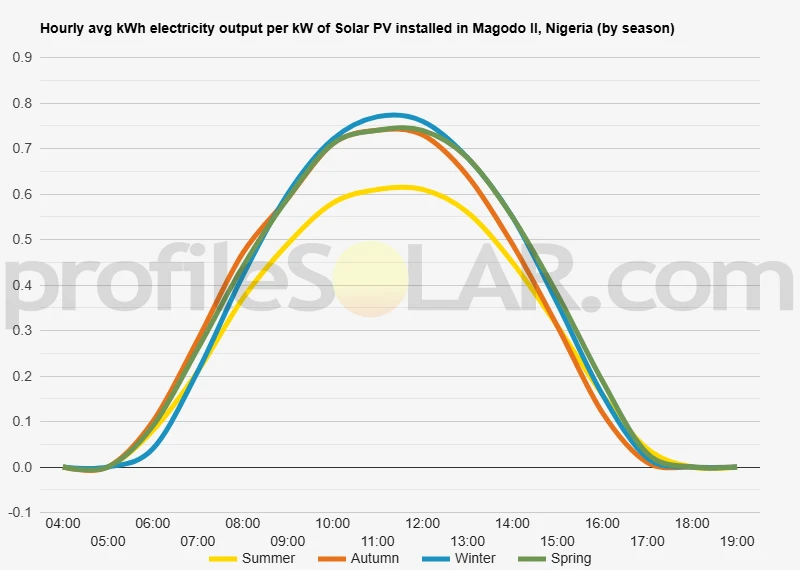

Solar output per kW of installed solar PV by season in Magodo II

Seasonal solar PV output for Latitude: 6.6256, Longitude: 3.3855 (Magodo II, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° South in Magodo II, Nigeria

To maximize your solar PV system's energy output in Magodo II, Nigeria (Lat/Long 6.6256, 3.3855) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Magodo II, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Magodo II, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	13° South in Autumn	23° South in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Magodo II, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Magodo II, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Magodo II, Nigeria

The topography around Magodo II, Nigeria, located at coordinates 6.6256 latitude and 3.3855 longitude, is characterized by a mix of gently rolling terrain and relatively flat areas. This region is part of the Lagos mainland, situated north of the Lagos Lagoon and west of the Ogun River. The landscape is primarily composed of low-lying plains with occasional small hills and shallow valleys. Magodo II itself is a planned residential estate built on slightly elevated ground compared to its immediate surroundings. The area's elevation provides some natural drainage, which is beneficial during the rainy season. To the north and east of Magodo II, the terrain gradually slopes downward towards the Ogun River floodplain. The vegetation in this area is typical of a tropical savanna climate, with a mix of grasslands and scattered trees. However, due to urbanization, much of the natural vegetation has been replaced by built-up areas, roads, and managed green spaces within residential compounds.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have the following characteristics: Firstly, areas with relatively flat terrain or gentle slopes would be preferable. These can be found in the outskirts of Lagos, particularly to the north and northwest of Magodo II, where there are still some undeveloped lands. The flatter terrain makes it easier and more cost-effective to install large arrays of solar panels. Secondly, locations with minimal shading from trees or buildings are crucial for maximizing solar energy capture. Open fields or cleared lands away from dense urban areas would be ideal. Such areas can be found in the less developed regions beyond the immediate vicinity of Magodo II, possibly towards Ogun State. Thirdly, proximity to existing power infrastructure is important for connecting the solar PV system to the grid. Areas near major power lines or substations would be advantageous. The presence of industrial zones or large commercial areas in the broader Lagos region could provide opportunities for such connections. Lastly, considering the tropical climate of the region, areas with good drainage and minimal flood risk would be preferable to ensure the longevity and reliability of the solar installation. Slightly elevated areas or regions with natural drainage patterns would be suitable. In conclusion, while the immediate vicinity of Magodo II is largely urbanized, the surrounding regions to the north and northwest, particularly those bordering Ogun State, might offer more suitable conditions for large-scale solar PV installations. These areas potentially combine the necessary flat terrain, open spaces, and proximity to infrastructure required for such projects.
